Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

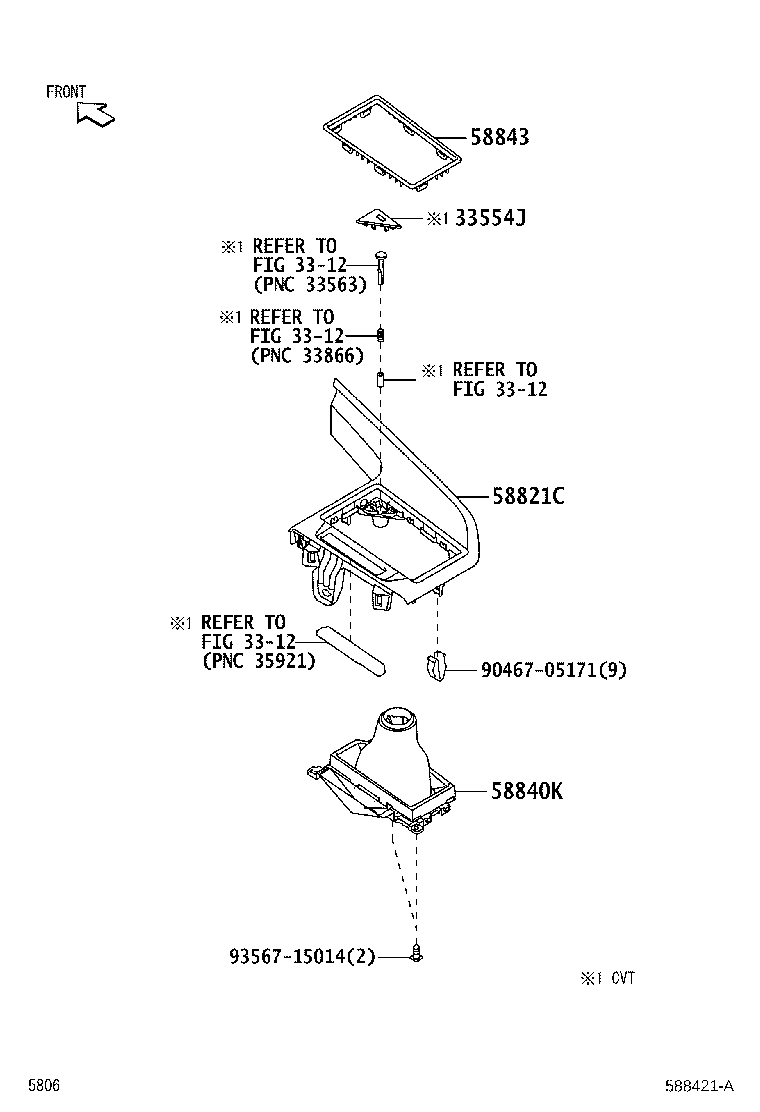

Console Box & Bracket
28 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 33554J | Cover, Shift Lock Release Button |
| 55539A | Cover, Spare Switch Hole |
| 55539J | Cover, Spare Switch Hole |
| 58805B | Panel Sub-assy, Console, Lower |
| 58810J | Box Assy, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58812A | Box, Console, Lower |
| 58815B | Carpet, Console Box |
| 58817A | Insert, Console Box, Front NO.2 |
| 58821C | Panel, Console, Upper |
| 58823B | Box, Console Compartment |
| 58825A | Pocket, Console Box |
| 58833B | Garnish, Console Upper Panel, NO.1 |
| 58840K | Cover Assy, Shifting Hole |
| 58843 | Bezel, Shifting Hole |
| 58860A | Register Assy, Console Box |
| 58864C | Duct, Console Box, NO.4 |
| 58905 | Door Sub-assy, Console Compartment |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58921A | Panel, Rear Console, Upper |
| 58923A | Panel, Console Rear End |
| 58924A | Panel, Console Rear End, NO.2 |
| 58941A | Cover, Parking Brake Hole |
| 58944A | Cover, Console, Rear |
| 58985 | Retainer, Console Box |
| 58989A | Retainer, Console Box |
| 58993 | Bracket, Console Box Mounting, Rear |
| 58996 | Bracket, Console Box Mounting, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
