Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

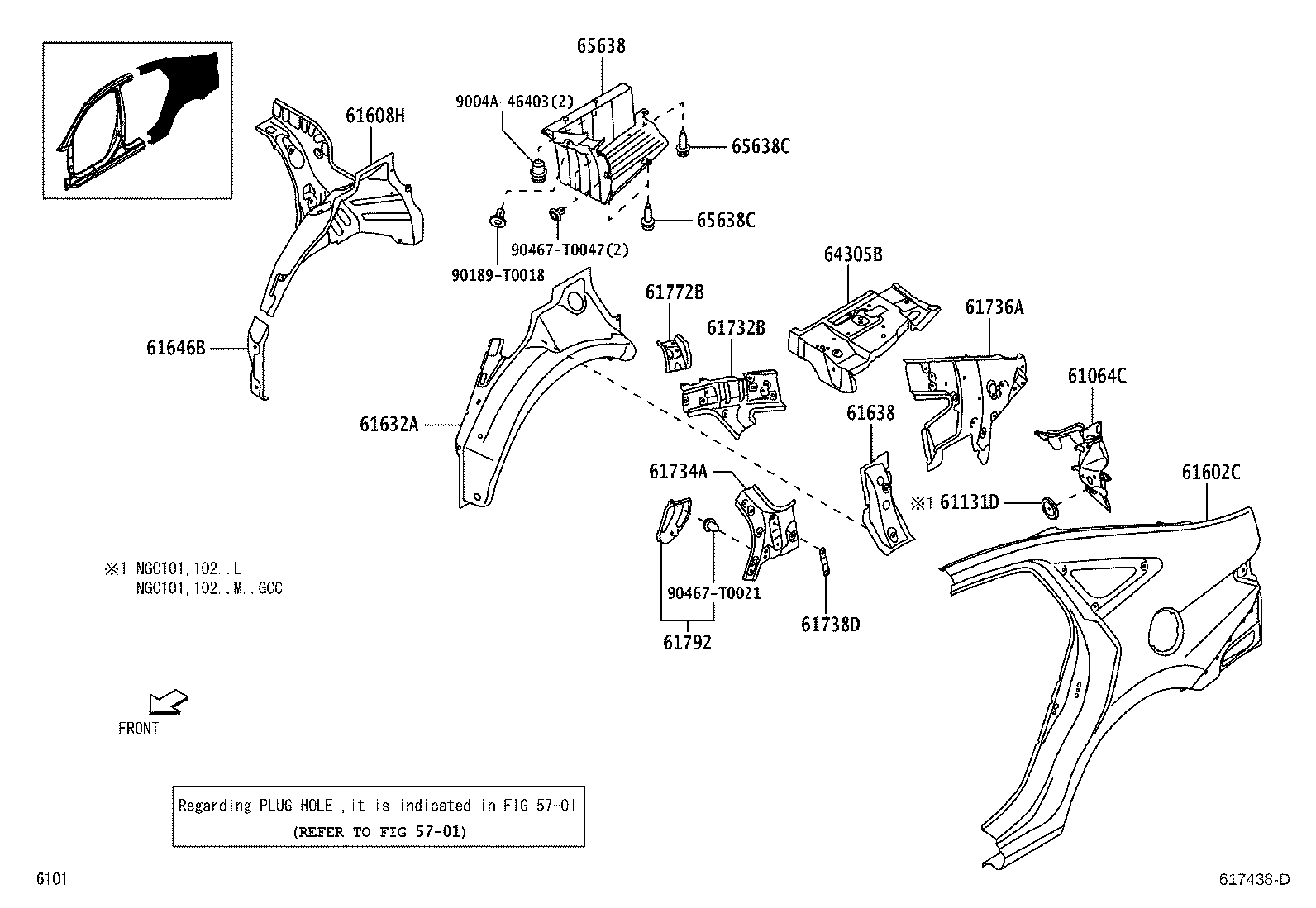

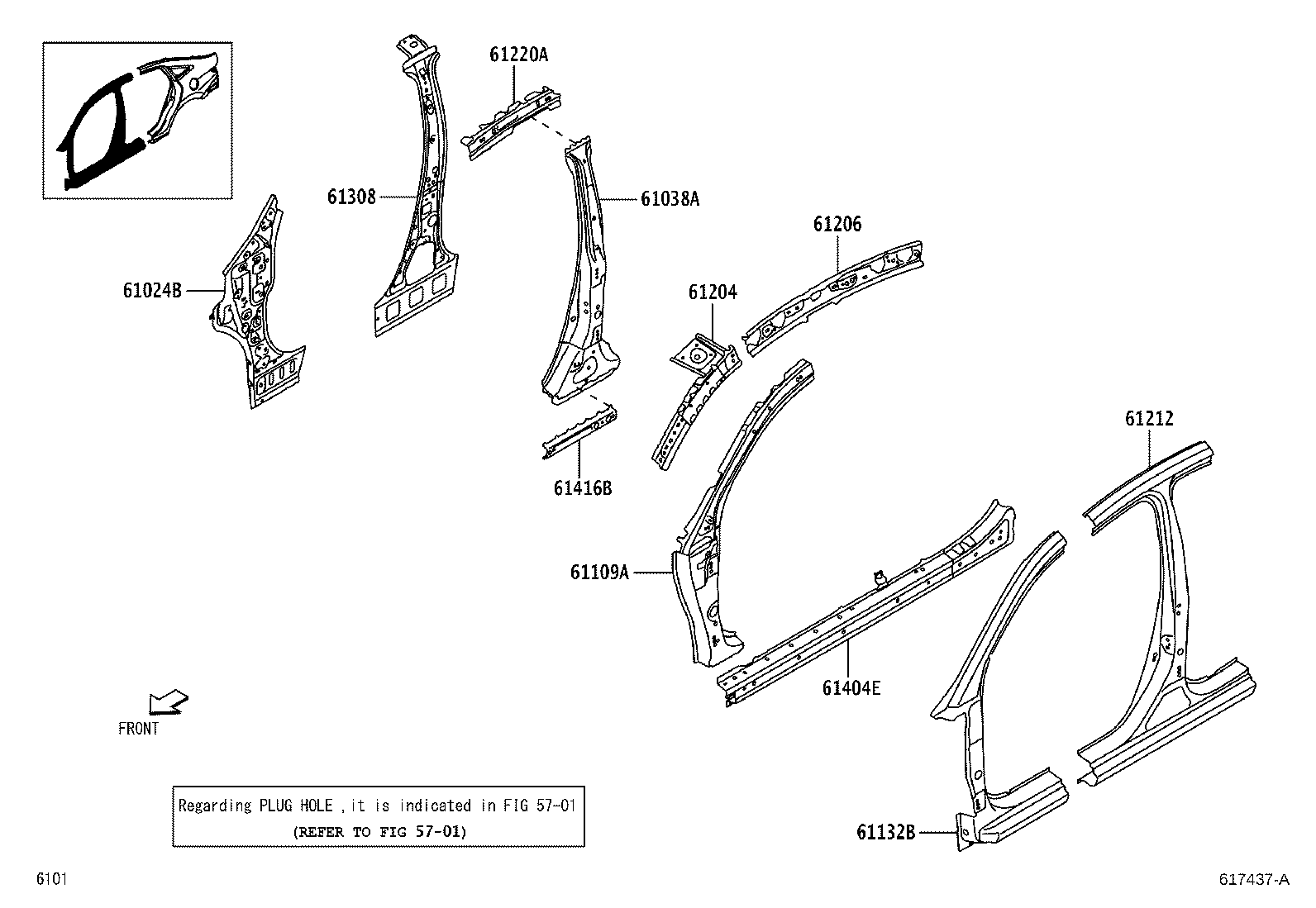

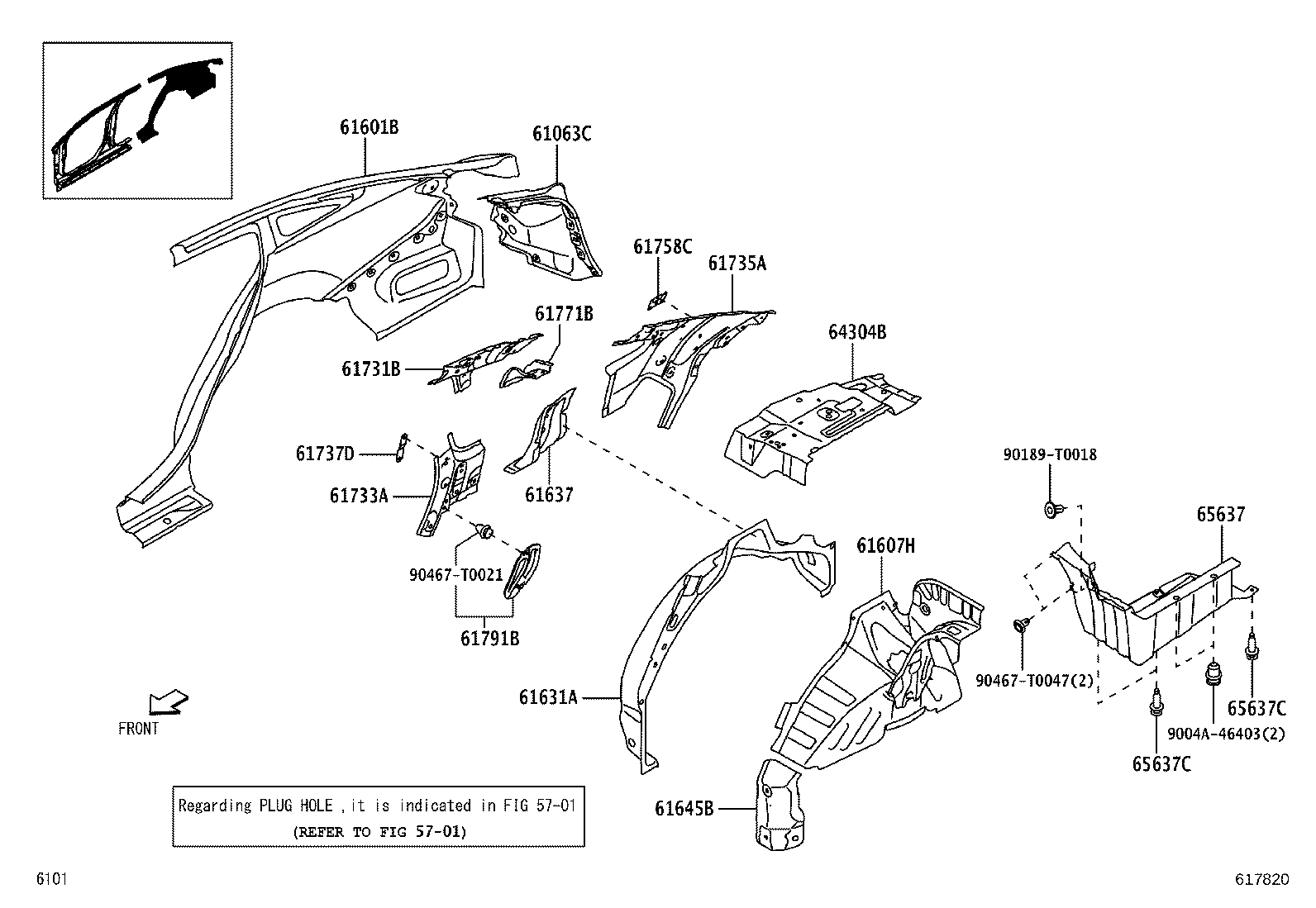

Side Member
54 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 61023B | Pillar Sub-assy, Front Body, Inner RH |
| 61024B | Pillar Sub-assy, Front Body, Inner LH |
| 61037A | Reinforcement Sub-assy, Center Body Pillar, RH |
| 61038A | Reinforcement Sub-assy, Center Body Pillar, LH |
| 61063C | Trough Sub-assy, Luggage Door Opening, Front RH |
| 61064C | Trough Sub-assy, Luggage Door Opening, Front LH |
| 61108D | Reinforcement Sub-assy, Front Pillar, Lower RH |
| 61109A | Reinforce Sub-assy, Front Body Pillar, Lower LH |
| 61131C | Pillar, Front Body, Outer RH |
| 61131D | Plug, Hole |
| 61132B | Pillar, Front Body, Outer LH |
| 61203 | Rail Sub-assy, Roof Side, Inner RH |
| 61204 | Rail Sub-assy, Roof Side, Inner LH |
| 61205 | Rail Sub-assy, Roof Side, Inner Rear RH |
| 61206 | Rail Sub-assy, Roof Side, Inner Rear LH |
| 61210A | Rail Assy, Roof Side, RH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61220A | Rail Assy, Roof Side, LH |
| 61307 | Pillar Sub-assy, Center Body, Inner RH |
| 61308 | Pillar Sub-assy, Center Body, Inner LH |
| 61403C | Reinforce Sub-assy, Rocker, Outer RH |
| 61404E | Reinforce Sub-assy, Rocker, Outer LH |
| 61415B | Extension, Rocker, Outer RH |
| 61416B | Extension, Rocker, Outer LH |
| 61601B | Panel Sub-assy, Quarter, RH |
| 61602C | Panel Sub-assy, Quarter, LH |
| 61607H | Panel Sub-assy, Quarter Wheel House, Inner RH |
| 61608H | Panel Sub-assy, Quarter Wheel House, Inner LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61637 | Brace, Quarter Wheel House, RH |
| 61638 | Brace, Quarter Wheel House, LH |
| 61645B | Gusset, Quarter Wheel House, Rear RH |
| 61646B | Gusset, Quarter Wheel House, Rear LH |
| 61731B | Panel, Roof Side, Inner RH |
| 61732B | Panel, Roof Side, Inner LH |
| 61733A | Panel, Roof Side, Inner Front RH |
| 61734A | Panel, Roof Side, Inner Front LH |
| 61735A | Panel, Roof Side, Inner Rear RH |
| 61736A | Panel, Roof Side, Inner Rear LH |
| 61737D | Reinforcement, Roof Side, Inner RH |
| 61738D | Reinforcement, Roof Side, Inner LH |
| 61758C | Bracket, Quarter Inner Panel |
| 61771B | Frame, Back Door Opening Upper Corner, RH |
| 61772B | Frame, Back Door Opening Upper Corner, LH |
| 61791B | Cover, Roof Side Inner Service Hole |
| 61792 | Cover, Roof Side Inner Service Hole |
| 64304B | Reinforce Sub-assy, Package Tray Bracket, RH |
| 64305B | Reinforce Sub-assy, Package Tray Bracket, LH |
| 65637 | Liner, Rear Wheel House, RH |
| 65637C | Clip, Rear Wheel House Liner |
| 65638 | Liner, Rear Wheel House, LH |
| 65638C | Clip, Rear Wheel House Liner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
