Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09
Armrest & Visor
12 part groups · 5 illustrations
Part groups

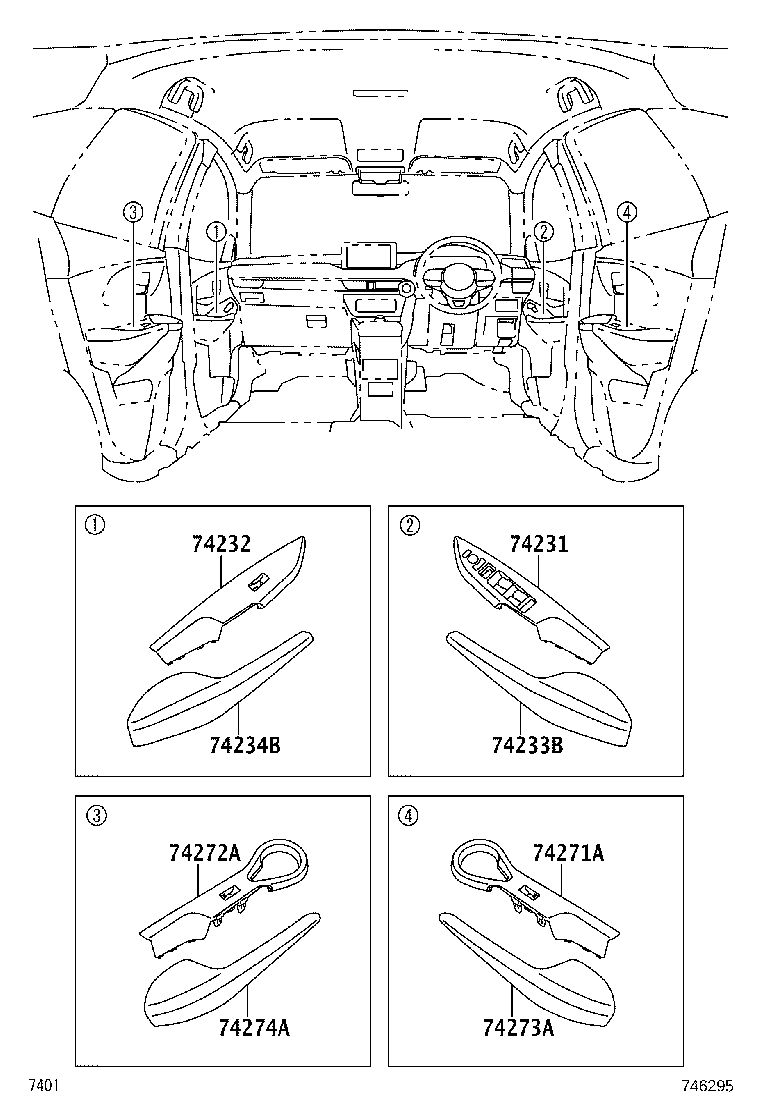

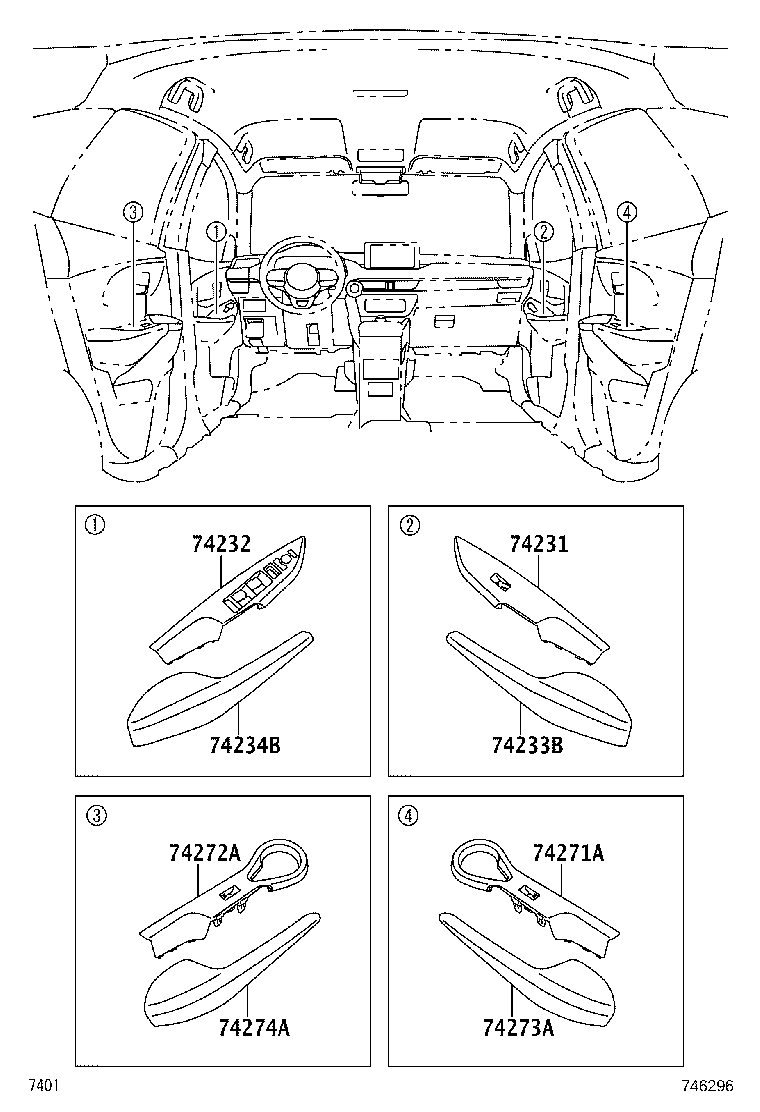

| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74233B | Panel, Front Door Armrest Base, Lower RH |
| 74234B | Panel, Front Door Armrest Base, Lower LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74273A | Panel, Rear Door Armrest Base, Lower RH |
| 74274A | Panel, Rear Door Armrest Base, Lower LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74610S | Grip Assy, Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
