Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

23 part groups · 8 illustrations

Illustrations

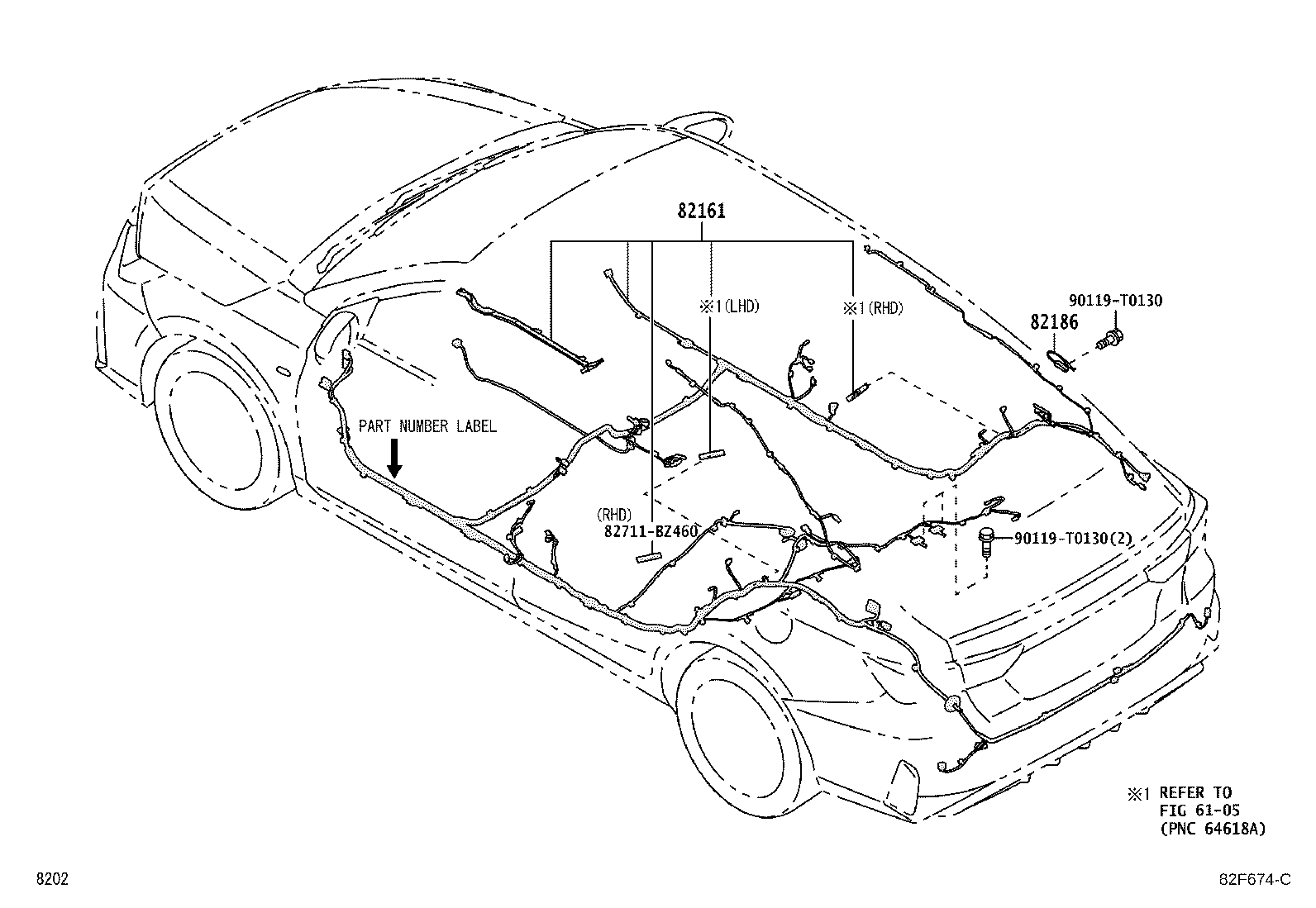

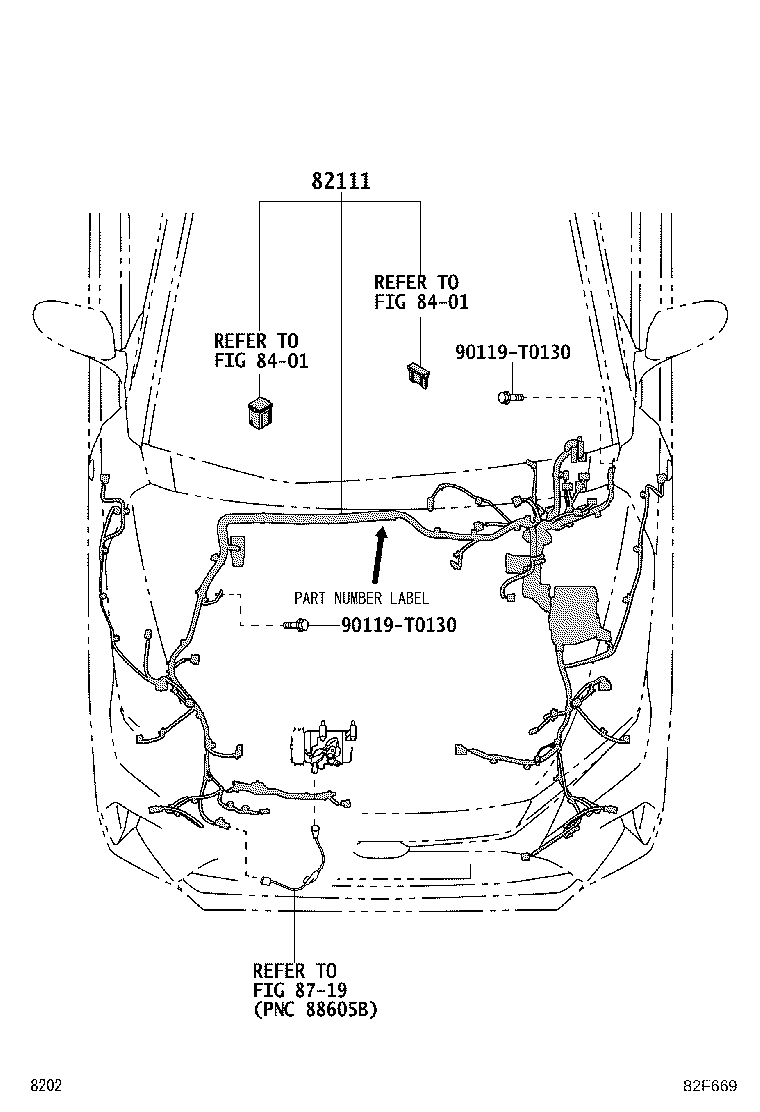

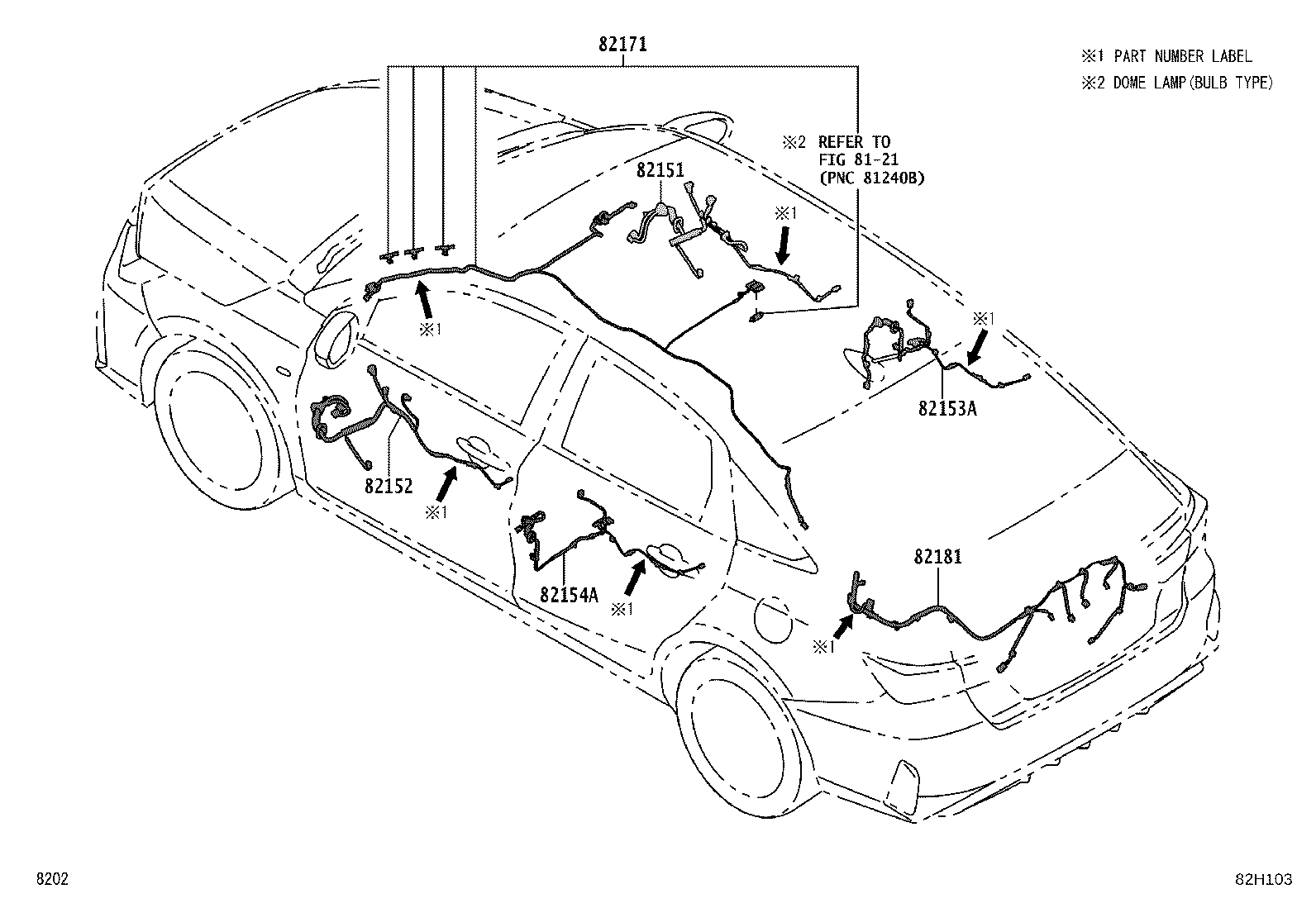

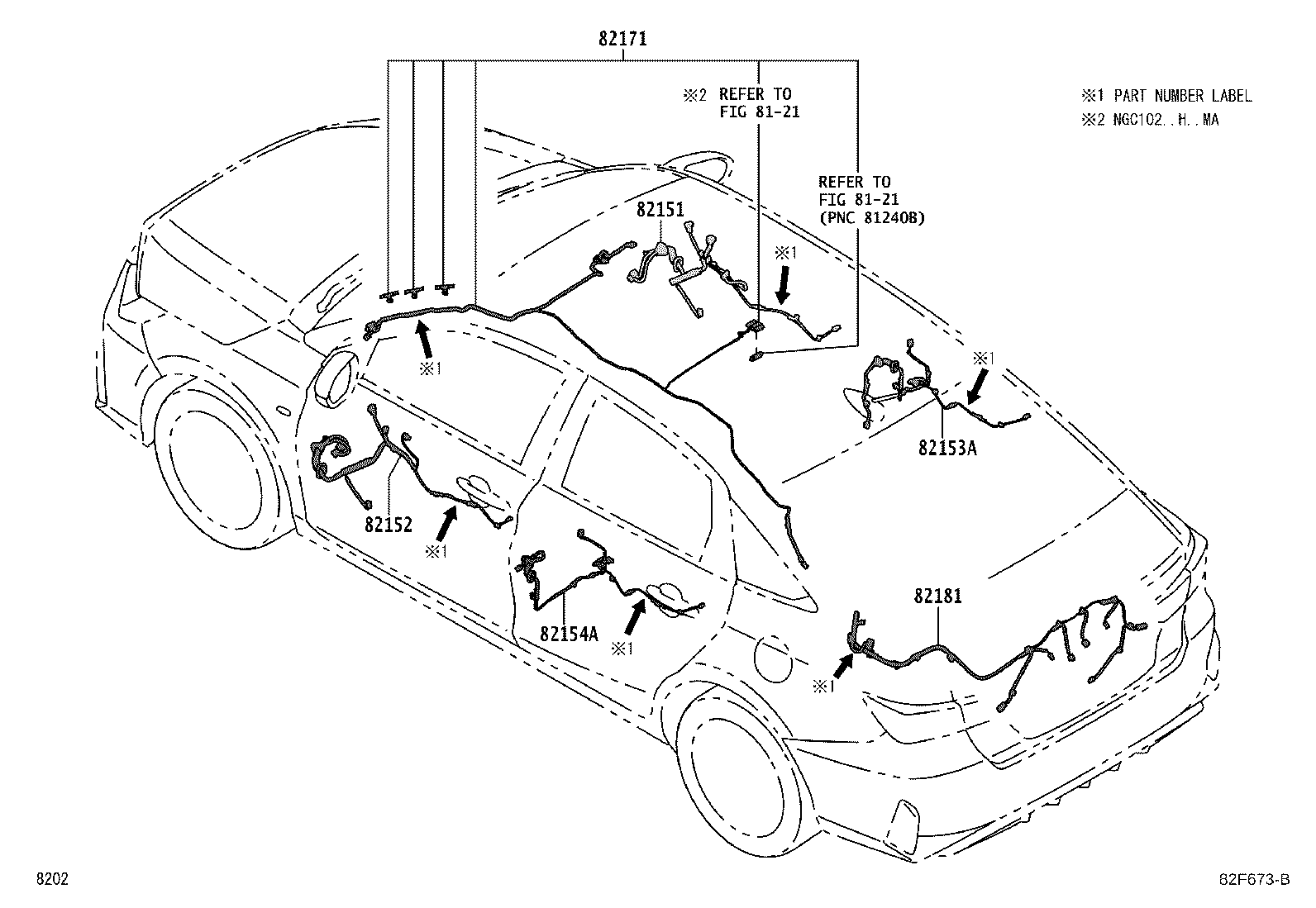

Figure 82F668 82F668 2022-08 → — Figure 82F669 82F669 2022-08 → — Figure 82F670B 82F670B 2022-08 → — Figure 82F671 82F671 2022-08 → — Figure 82F672 82F672 2022-08 → — Figure 82H103 82H103 2022-08 → — Figure 82F673B 82F673B 2023-03 → — Figure 82F674C 82F674C 2022-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126A Wire, Engine, NO.6
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82186 Wire, Rear Window, NO.1
82212A Harness, Air Conditioner
82285E Wire, Illumination
82627A Wire, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82823 Cap, Terminal, NO.1
82823T Cap, Alternator Terminal
82988 Wire, Airbag Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
