Toyota Starlet
1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121330 · General
Discontinued model
Data version 1990-07

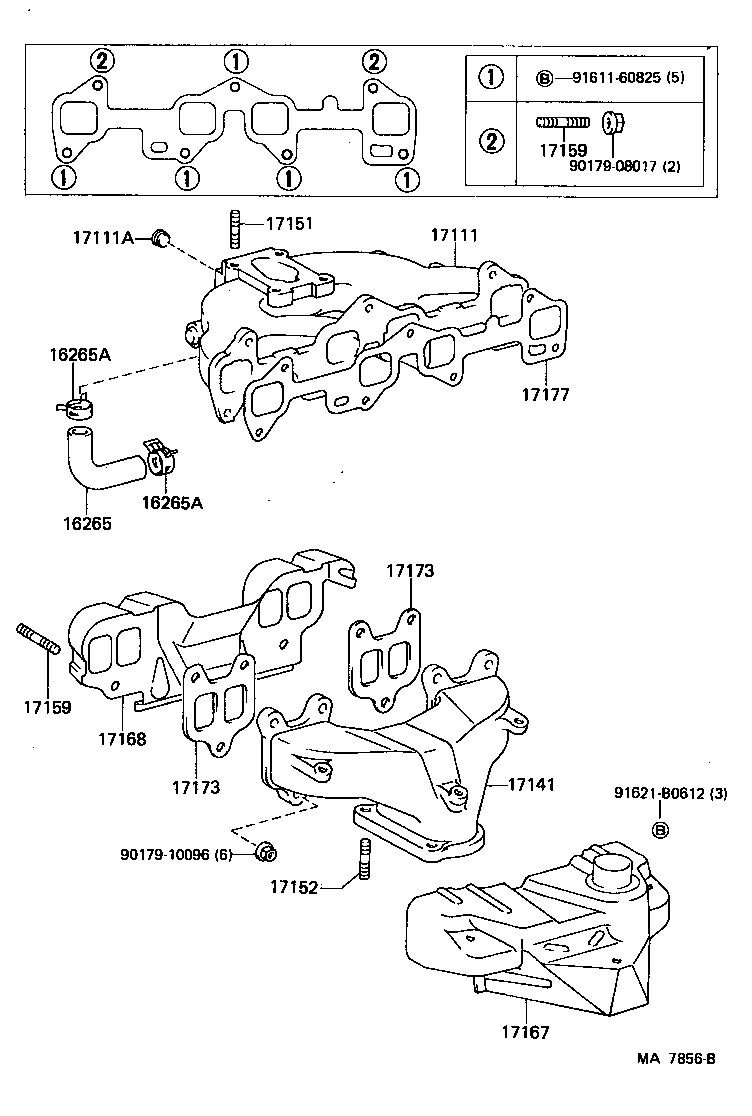

Manifold
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16265 | Hose, Intake Manifold Water |
| 16265A | Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER) |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17141 | Manifold, Exhaust |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
