Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121330 · General

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

11 part groups · 3 illustrations

Illustrations

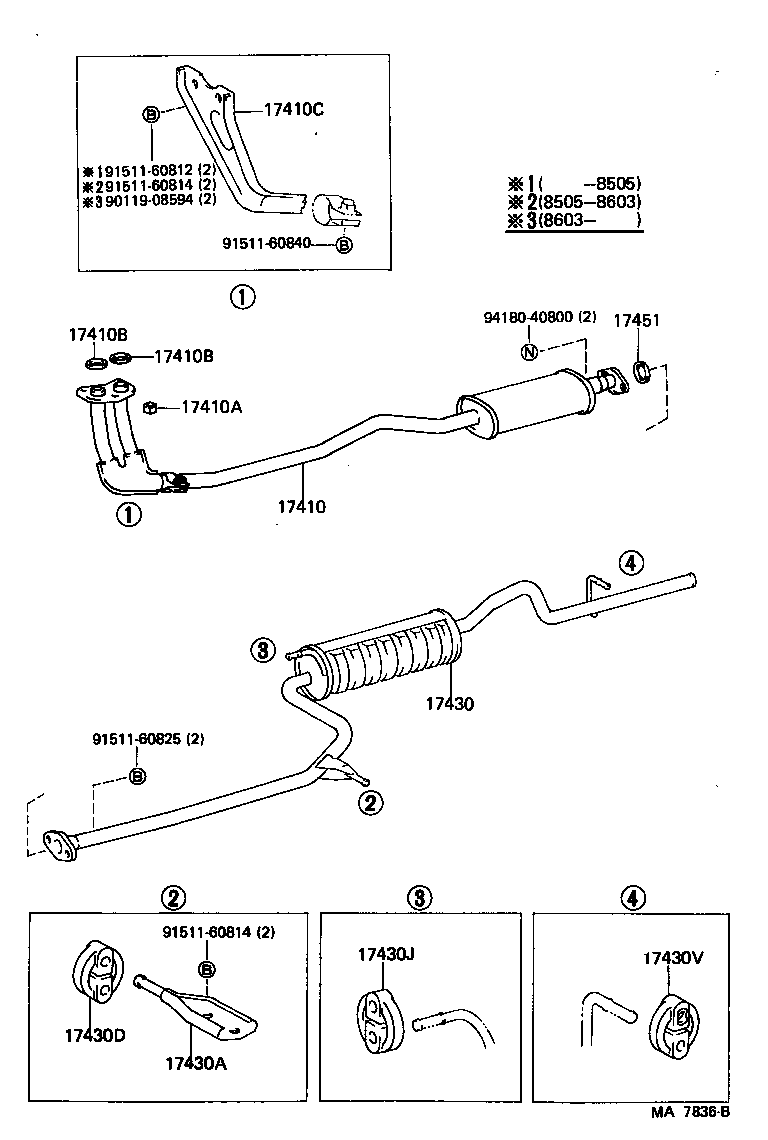

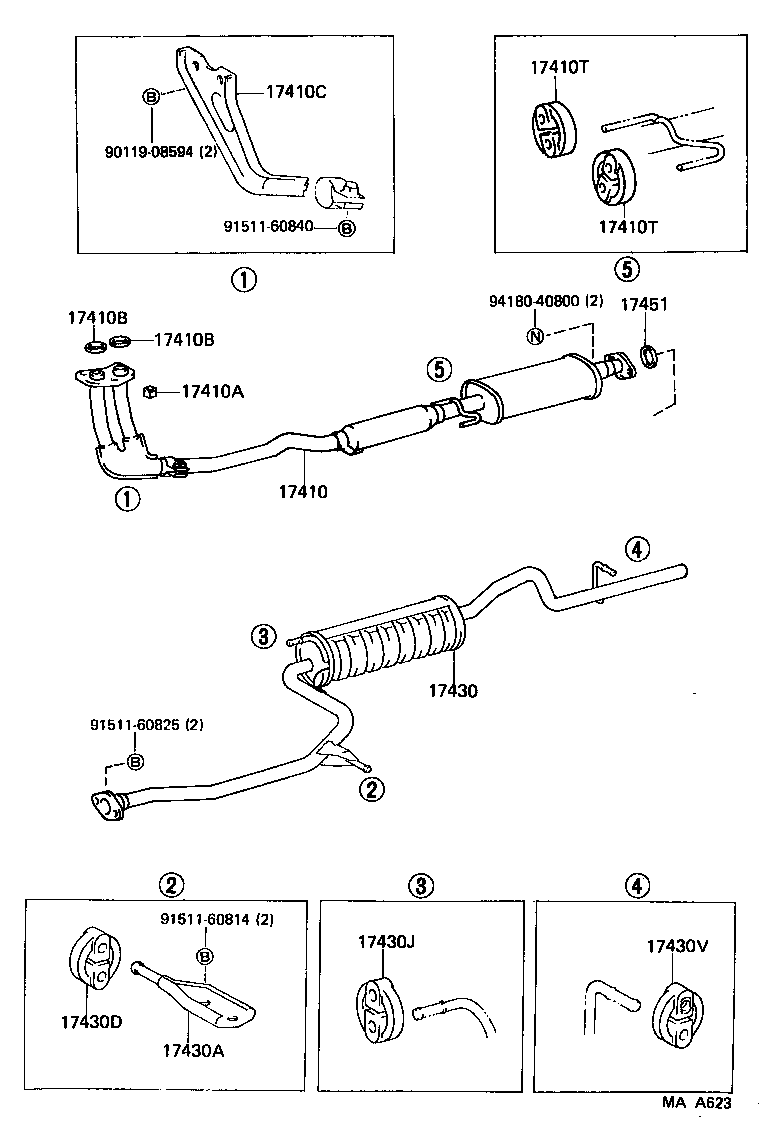

Figure MA7835B MA7835B 1984-10 → — Figure MA7836B MA7836B 1984-10 → 1987-12 Figure MAA623 MAA623 1987-12 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410T Bolt OR Ring, Exhaust Pipe Front (FOR CENTER)
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
