Toyota Starlet
1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121330 · General
Discontinued model
Data version 1990-07

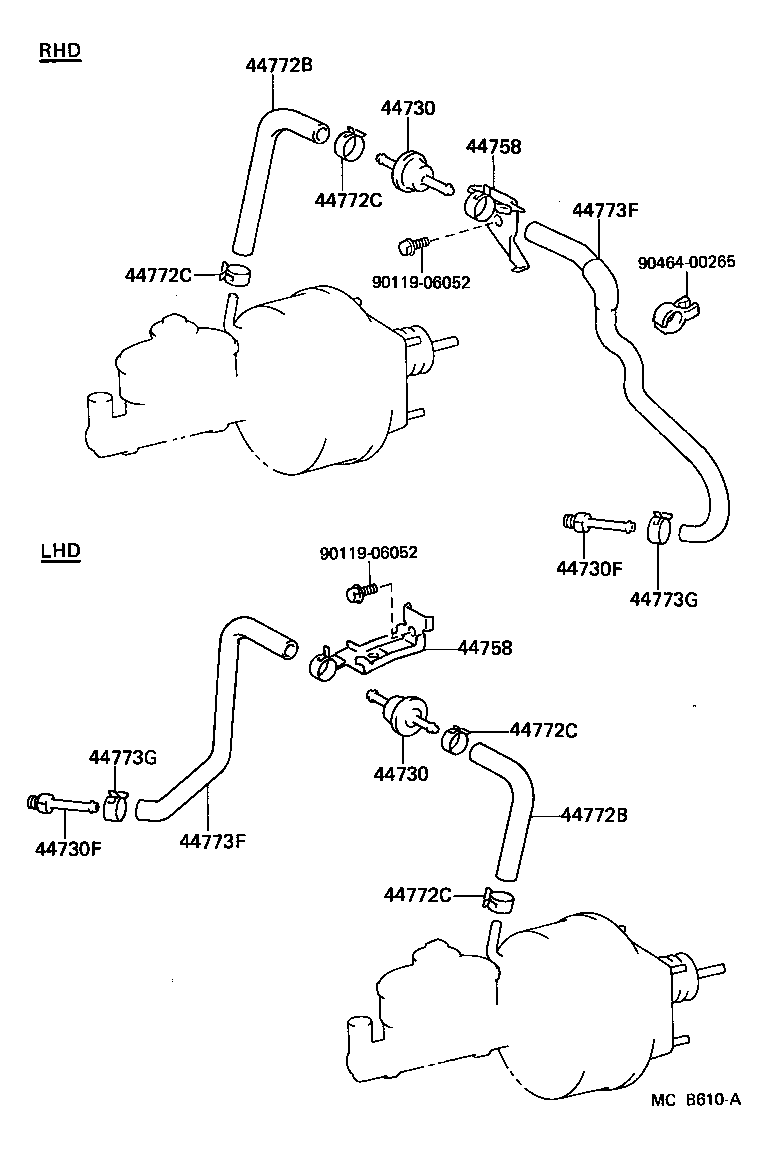

Brake Booster & Vacuum Tube
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04443 | Booster Kit, Brake |
| 44608 | Push Rod Sub-assy, Booster |
| 44610 | Booster Assy, Brake |
| 44618 | Seal, Booster Body |
| 44629 | Ring, Circular Internal |
| 44642 | Piston, Brake Booster |
| 44663 | Key, Valve Stopper |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44758 | Bracket, Vacuum Check Valve |
| 44772B | Hose, Check Valve TO Brake Booster |
| 44772C | Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) |
| 44773F | Hose, Union TO Check Valve |
| 44773G | Clip(FOR UNION TO CHECK VALVE HOSE) |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
