Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121330 · General

Discontinued model Data version 1990-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

43 part groups · 5 illustrations

Illustrations

MBH216 1984-10 → —

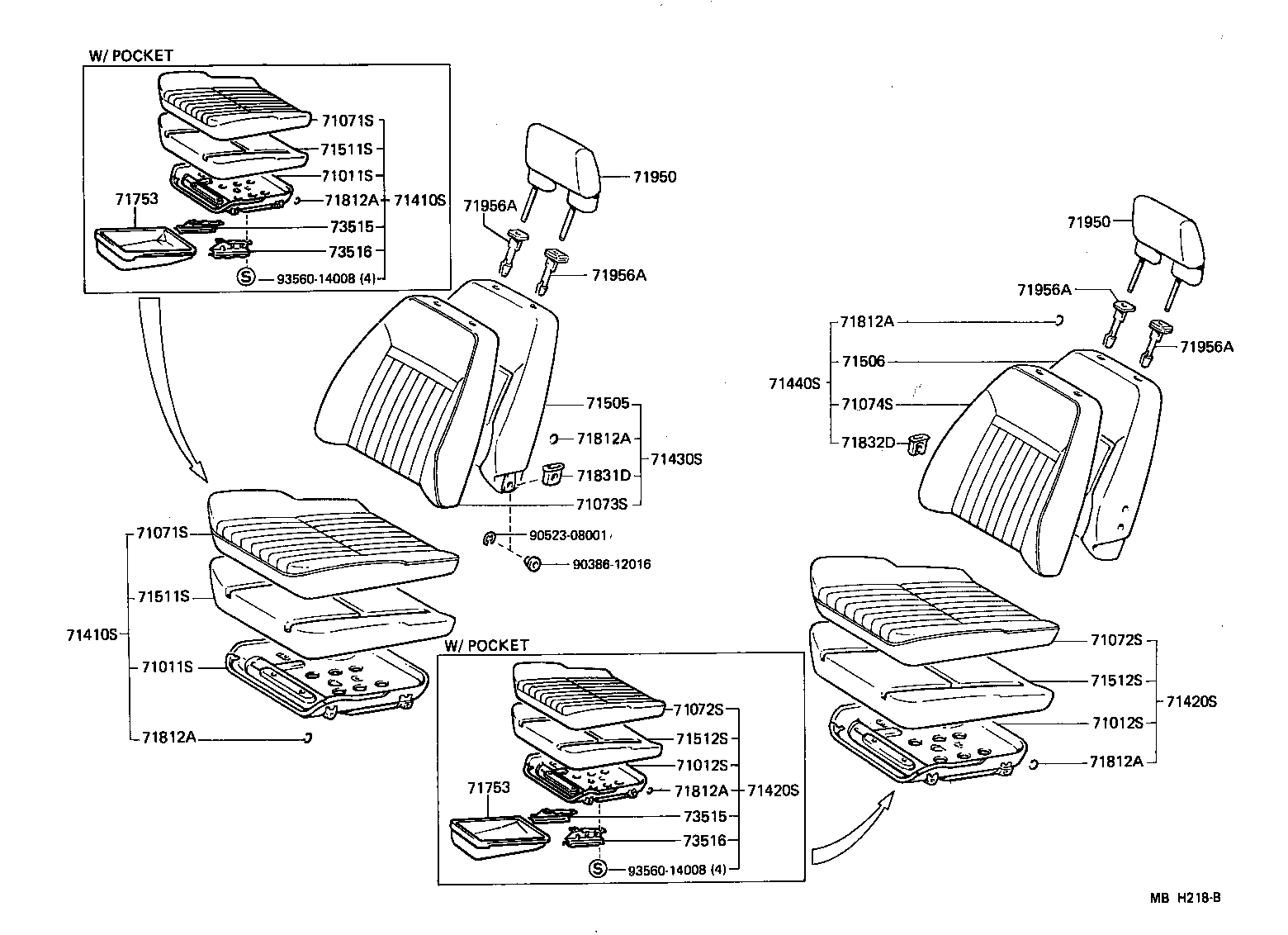

MBH218B 1984-10 → —

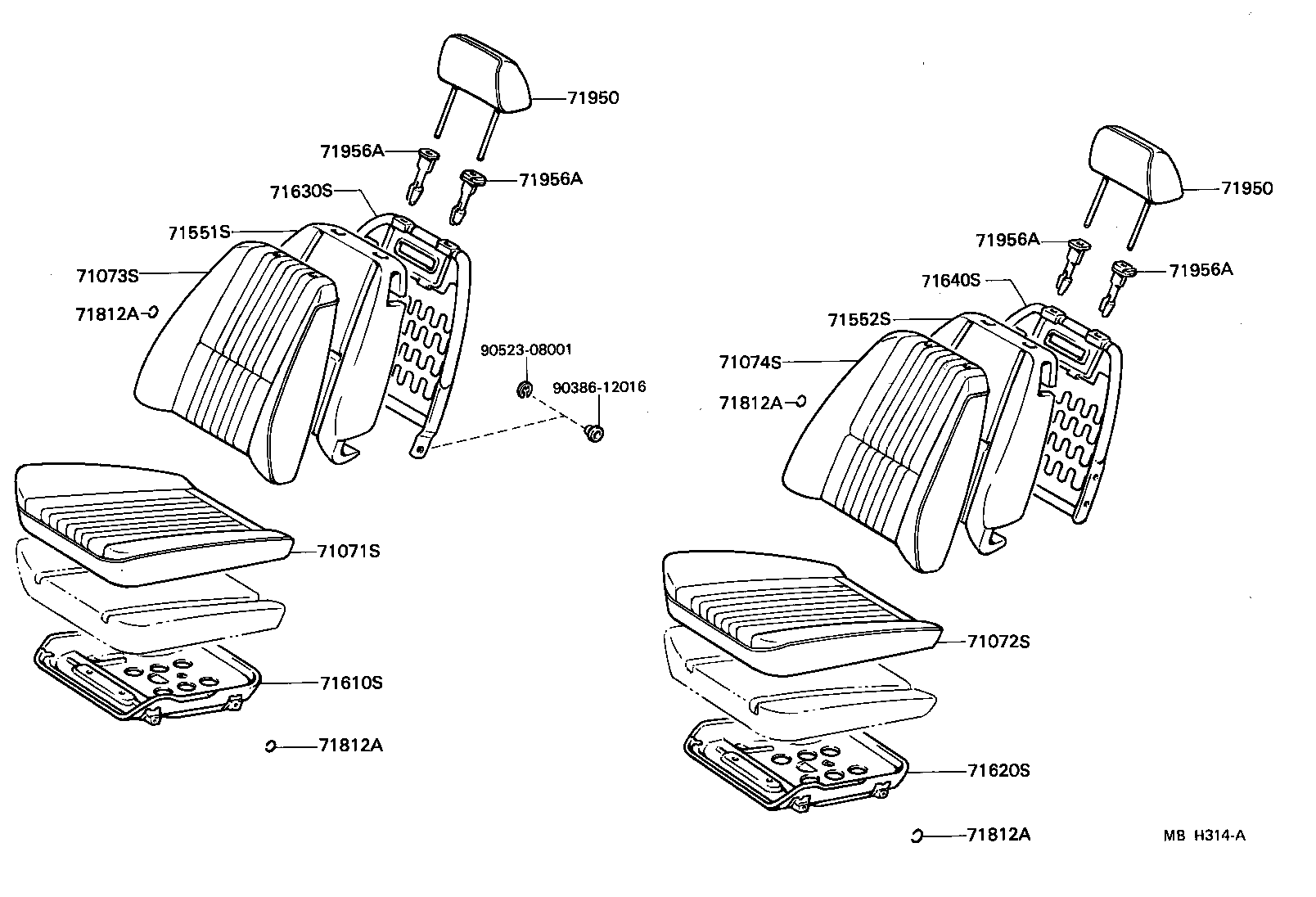

MBH314A 1984-10 → 1986-12

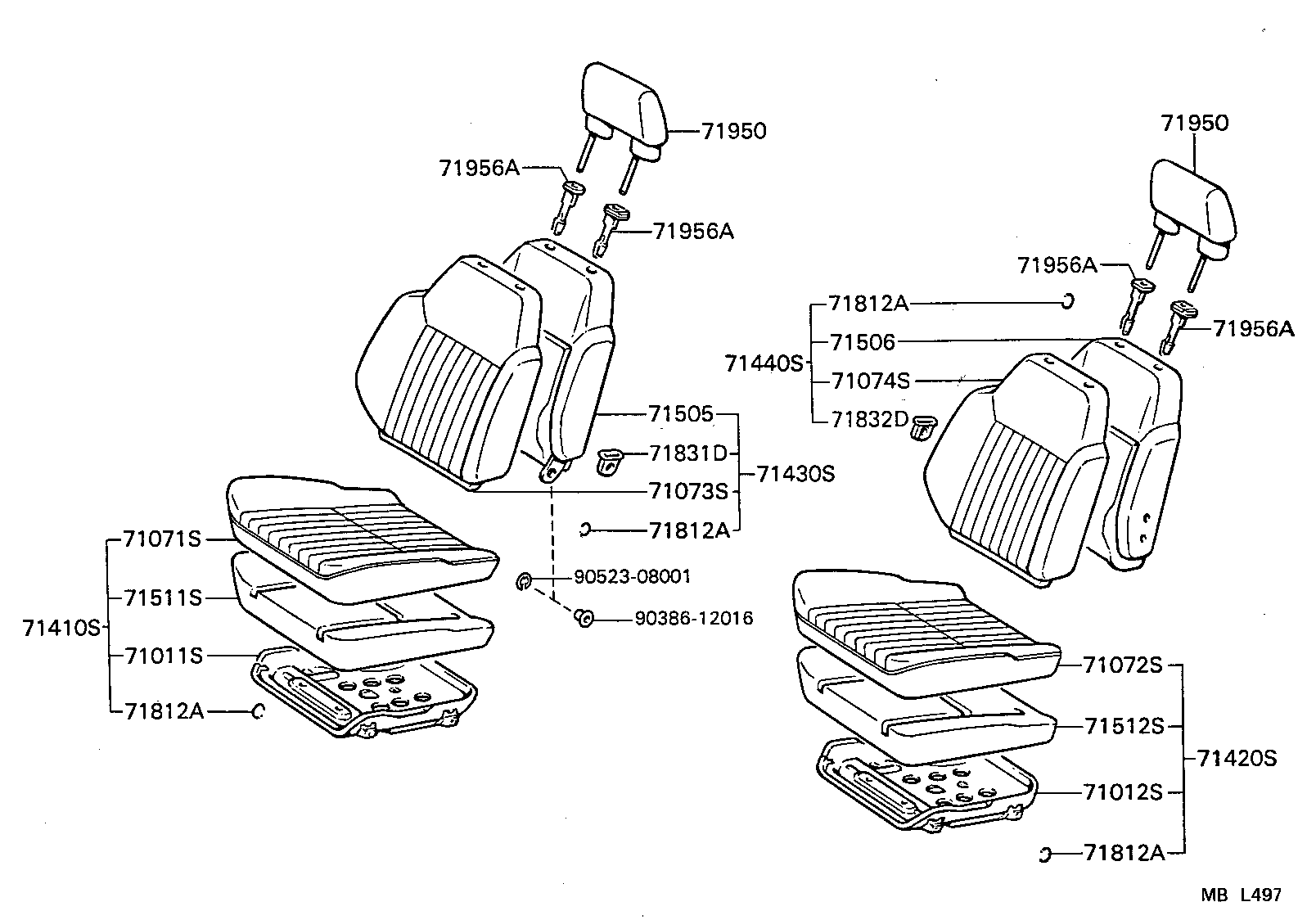

MBL497 1986-12 → —

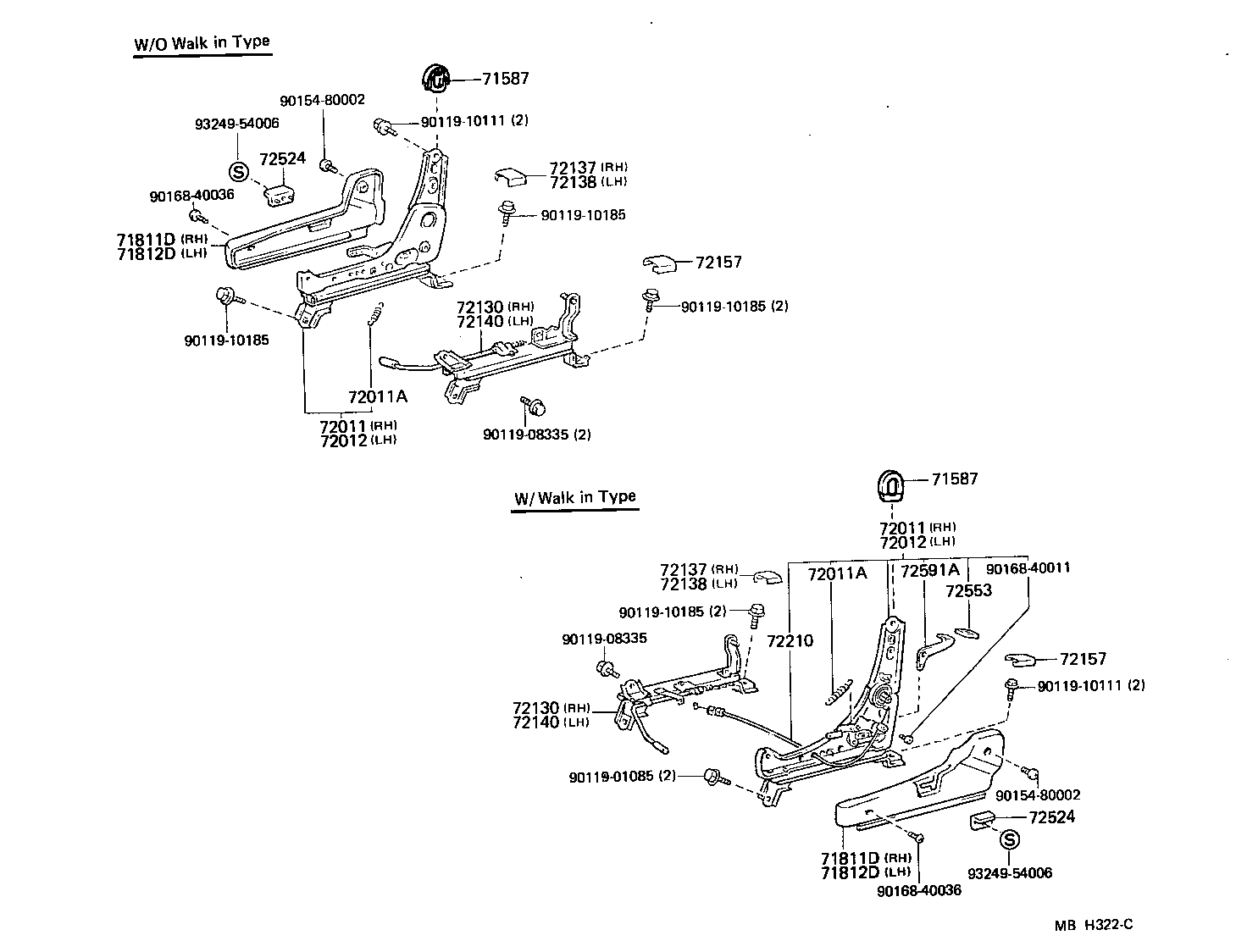

MBH322C 1984-10 → —

Part groups

PNC	Description
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71505	Pad Sub-assy, Front Seatback W/Frame, RH
71506	Pad Sub-assy, Front Seatback W/Frame, LH
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587	Protector, Front Seatback Edge
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71753	Tray, Front Seat Under
71811D	Shield, Front Seat Cushion, RH
71812A	Ring, Hog, Small (FOR FRONT SEAT)
71812D	Shield, Front Seat Cushion, LH
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71950	Headrest Assy, Front Seat
71956A	Support, Front Seat Headrest
72011	Adjuster Sub-assy, Front Seat, Outer RH
72011A	Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER)
72012	Adjuster Sub-assy, Front Seat, Outer LH
72130	Track Assy, RH Seat, Inner
72137	Cover, Seat Track, Outer RH
72138	Cover, Seat Track, Outer LH
72140	Track Assy, LH Seat, Inner
72157	Cover, Seat Track Bracket, Inner
72210	Cable Assy, Seat Track Control
72524	Handle, Reclining Adjuster Release
72553	Cover, Reclining Pedal
72591A	Lever, Reclining Remote Control
73515	Rail, Front Seat Under Tray, NO.1
73516	Rail, Front Seat Under Tray, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
