Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121330 · General

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

8 part groups · 3 illustrations

Illustrations

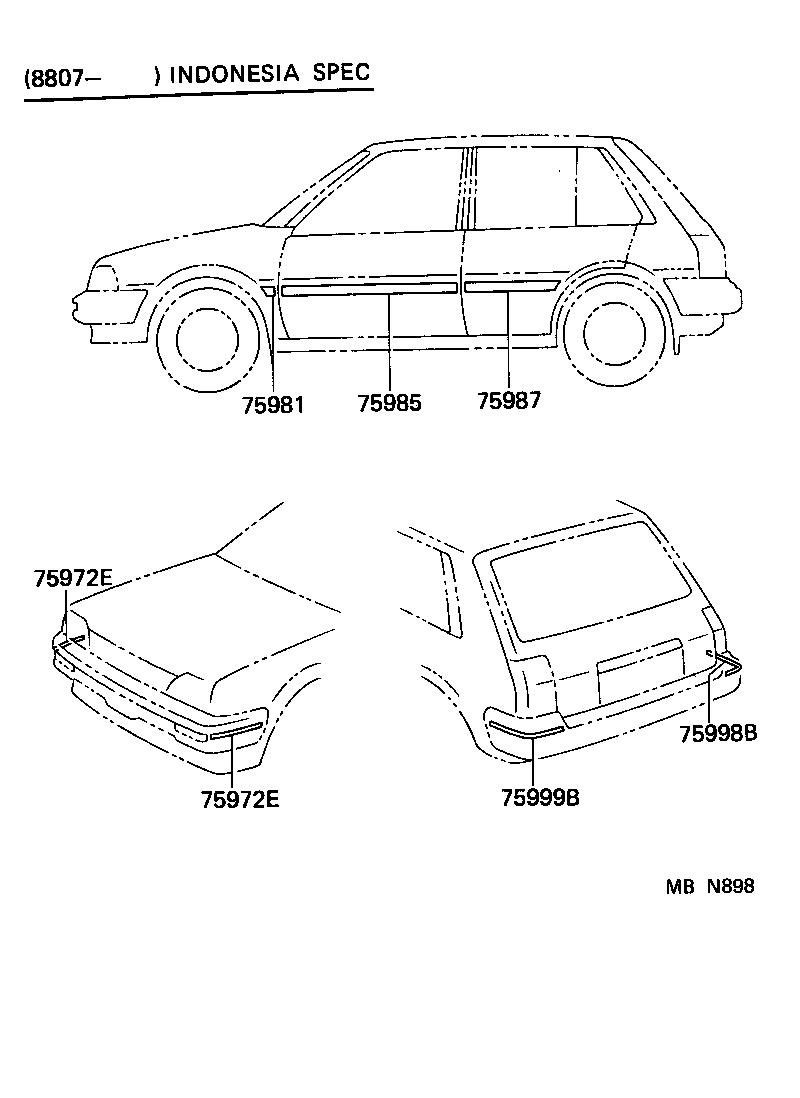

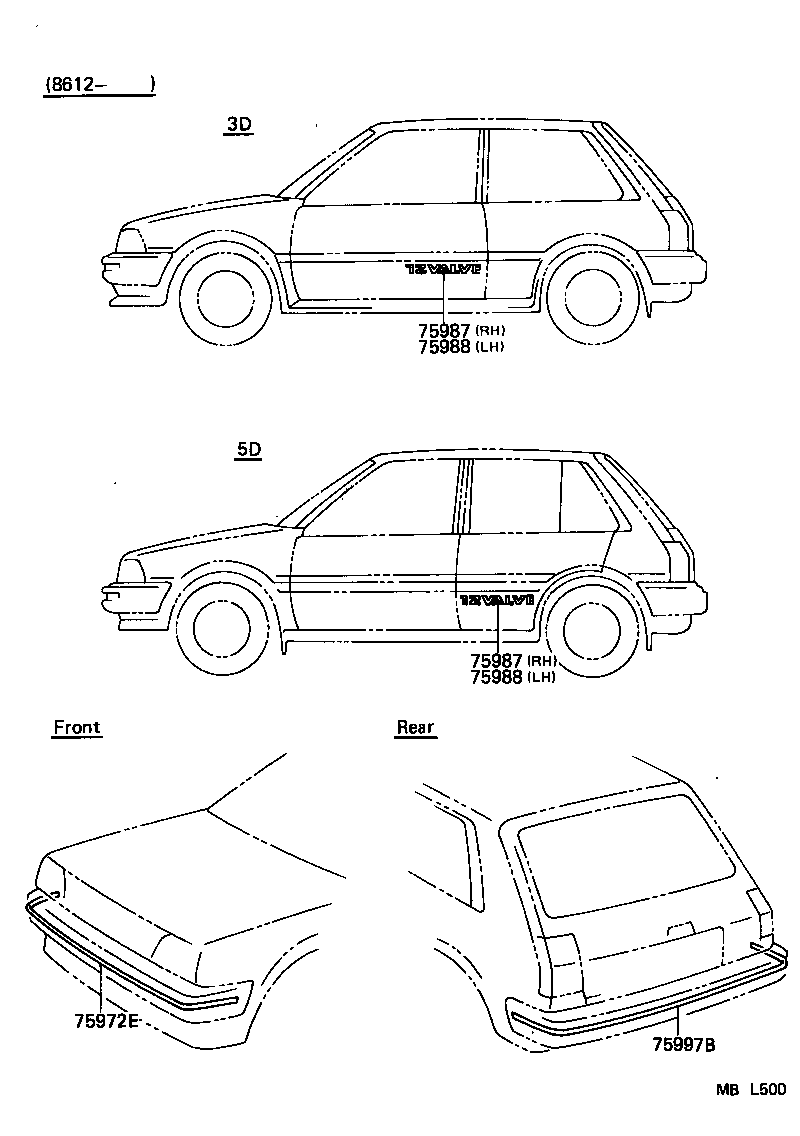

Figure MBH249A MBH249A 1985-06 → 1986-12 Figure MBL500 MBL500 1986-12 → — Figure MBN898 MBN898 1987-07 → —

Part groups

PNCDescription
75972E Stripe, Front Bumper
75981 Stripe, Front Fender, RH NO.1
75985 Stripe, Front Door, RH
75987 Stripe, Rear Door, RH
75988 Stripe, Rear Door, LH
75997B Stripe, Rear Bumper
75998B Stripe, Rear Bumper Side, RH
75999B Stripe, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
