Toyota Starlet
1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121330 · General
Discontinued model
Data version 1990-07
Accelerator Link

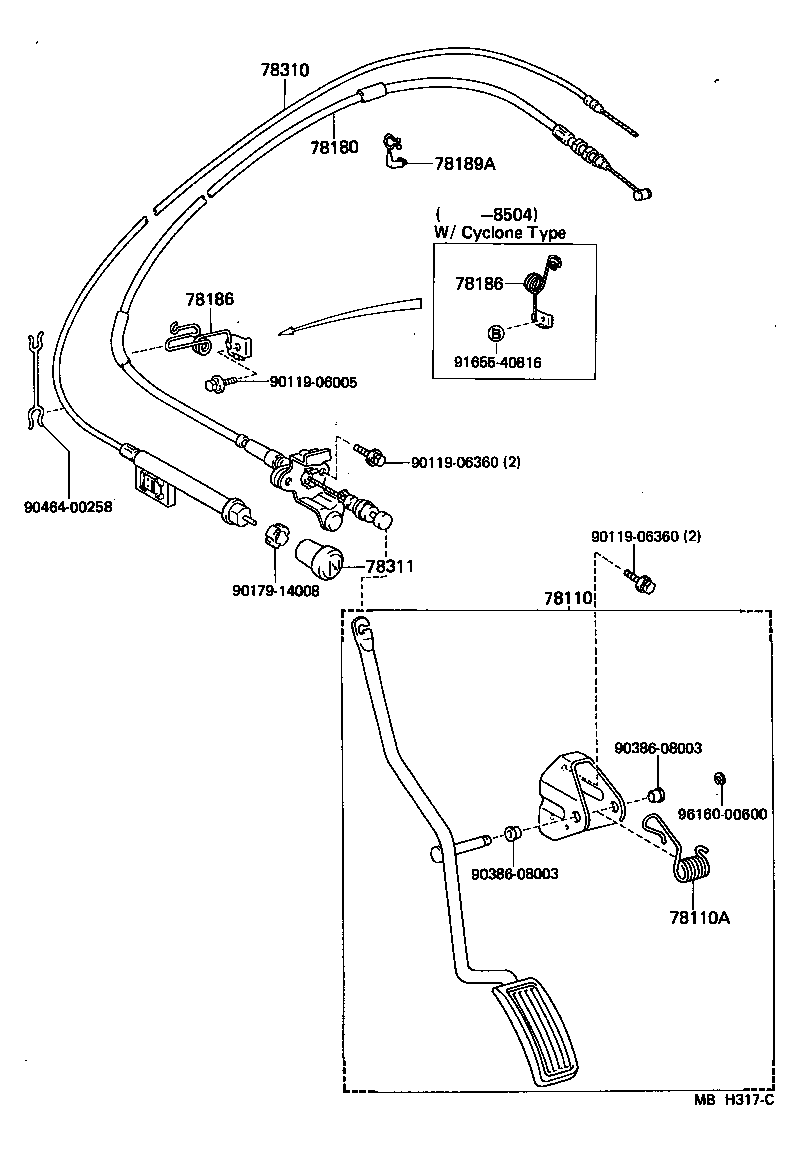

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78110 | Rod Assy, Accelerator Pedal |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78180 | Wire Assy, Accelerator |
| 78186 | Support, Accelerator Control Cable, NO.1 |
| 78189A | Support, Accelerator Control Cable, NO.2 |
| 78310 | Cable Assy, Choke |
| 78311 | Knob, Choke Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
