Toyota Starlet

1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121330 · General

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

13 part groups · 2 illustrations

Illustrations

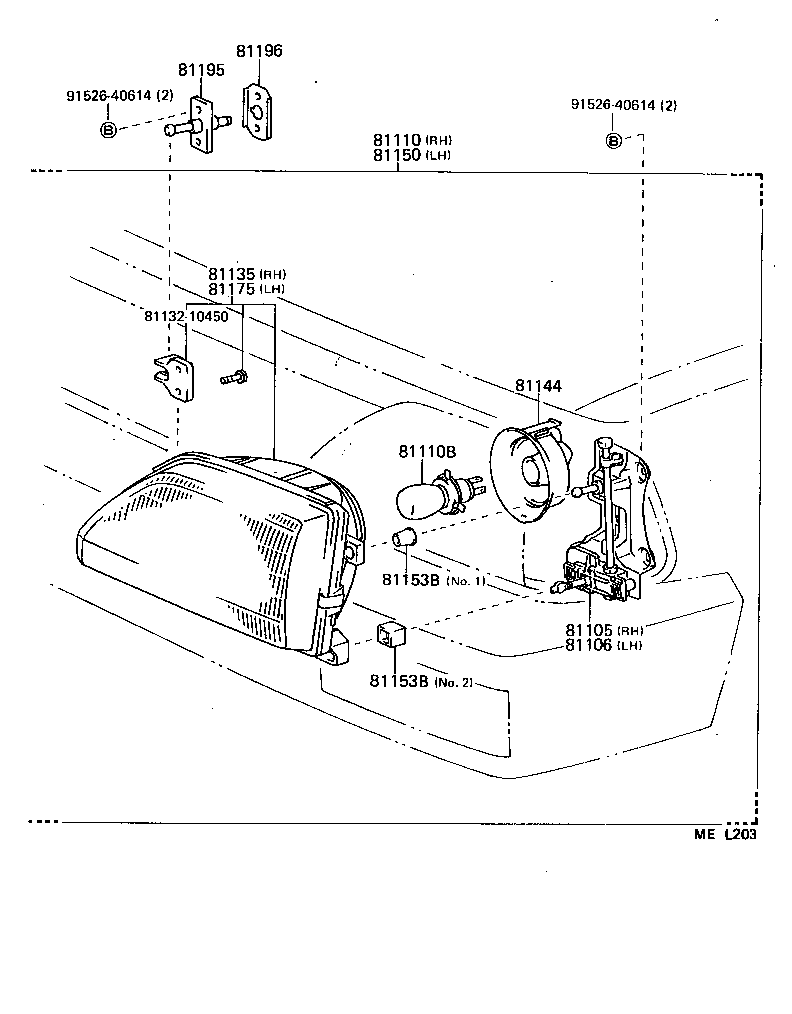

Figure MEF108C MEF108C 1984-10 → — Figure MEL203 MEL203 1988-07 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81131 Screw, Headlamp Adjusting
81132 Nut, Headlamp Self Locking
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81153B Bearing, Headlamp
81175 Unit Assy, Headlamp, LH
81195 Screw, Headlamp
81196 Retainer, Headlamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
