Toyota Starlet
1984-10 → 1989-12 · chassis EP7#,NP70 · catalogue 121330 · General
Discontinued model
Data version 1990-07
Switch & Relay & Computer
45 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82660 | Block Assy, Relay, Engine Room |
| 82661 | Cover, Relay Block, NO.1 |

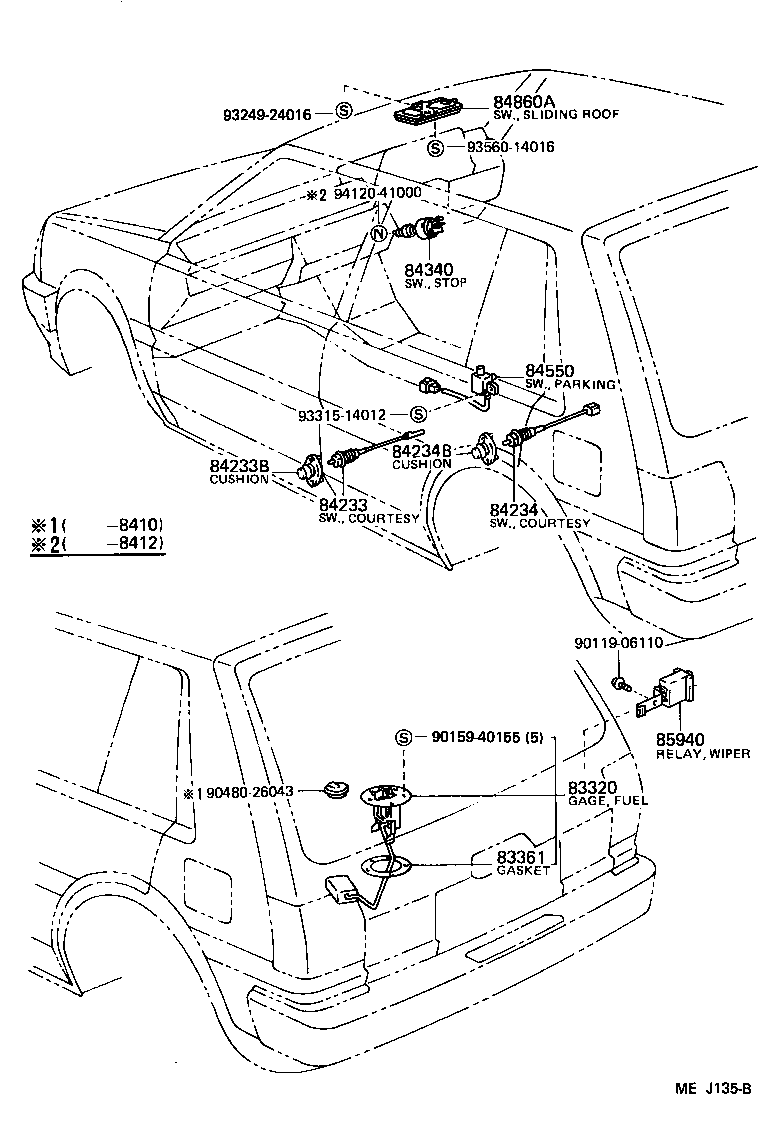

| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |

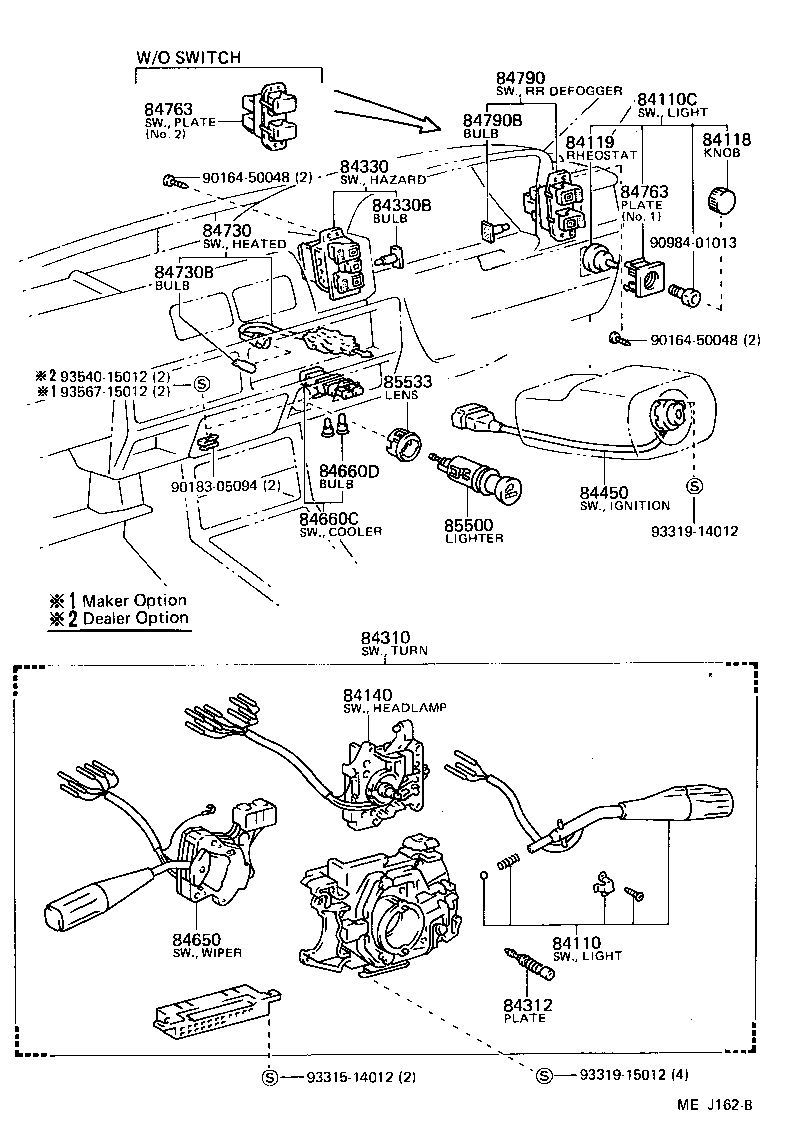

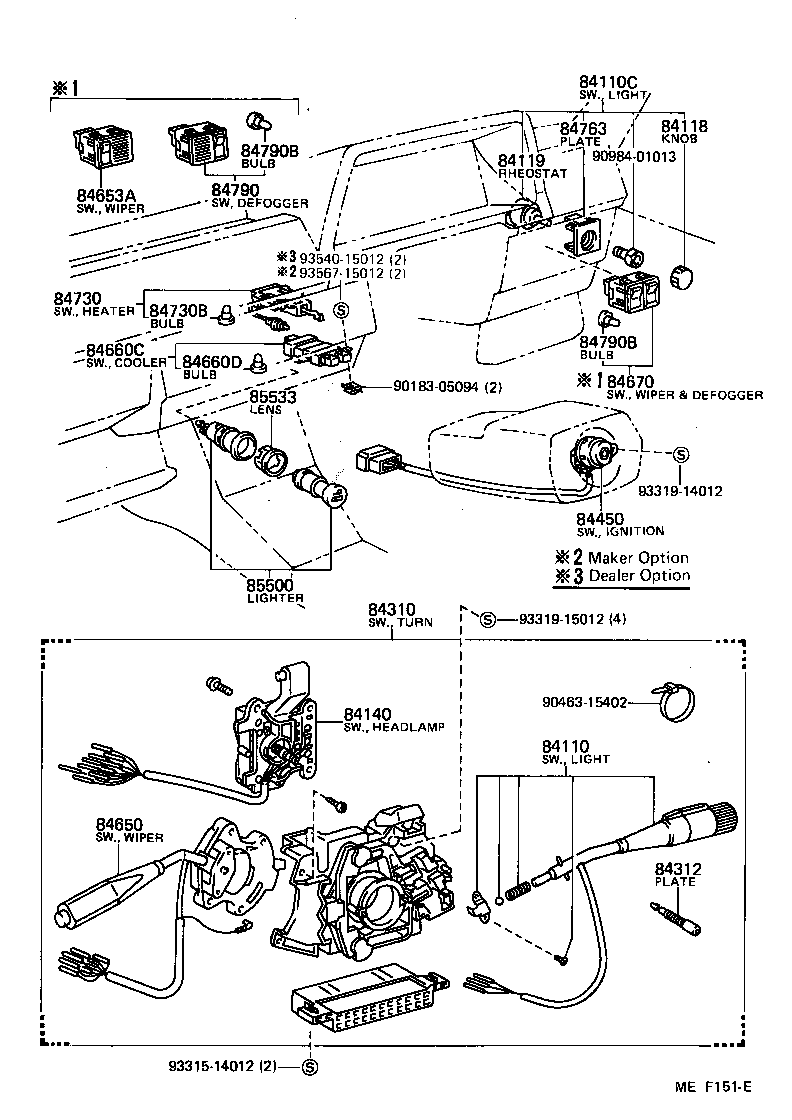

| 84110 | Switch Assy, Light Control, NO.1 |
| 84110C | Switch Assy, Light Control, NO.2 |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84233B | Cushion, Courtesy Switch (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84234B | Cushion, Courtesy Switch (FOR REAR DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84653A | Switch, Rear Wiper |
| 84660C | Switch, Cooler |
| 84660D | Bulb(FOR COOLER SWITCH) |
| 84670 | Switch Assy, Rear Wiper & Defogger |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84763 | Plate, Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84860A | Switch Assy, Sliding Roof |
| 85500 | Lighter Assy, Cigarette |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85915 | Relay, Main |
| 85916 | Relay, Light Control |
| 85927 | Relay, Cooling Fan |
| 85940 | Relay Assy, Windshield Wiper |
| 89428 | Switch, Temperature Detect, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
