Toyota Starlet

1989-12 → 1998-03 · chassis EP8# · catalogue 121340 · General

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

13 part groups · 7 illustrations

Illustrations

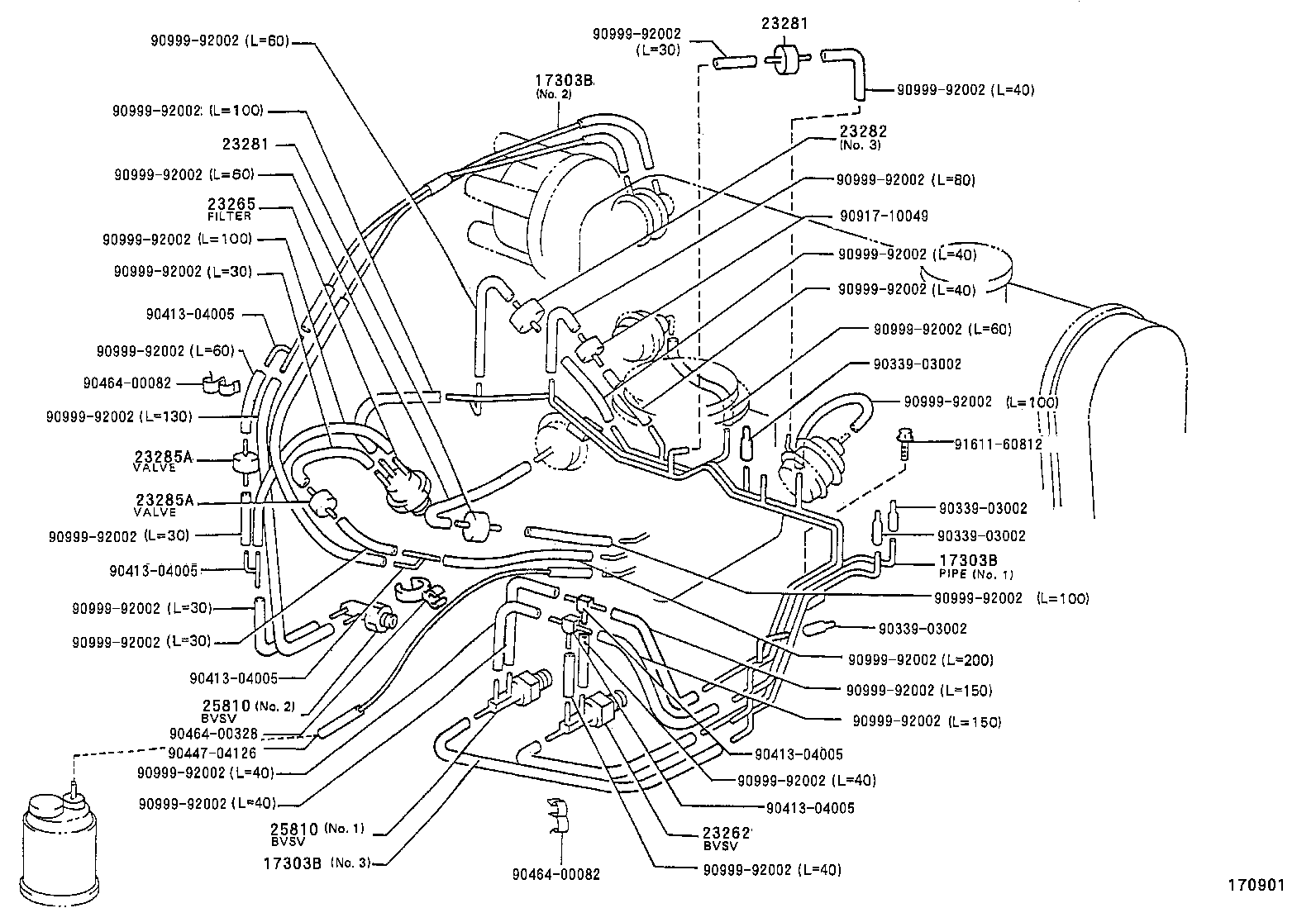

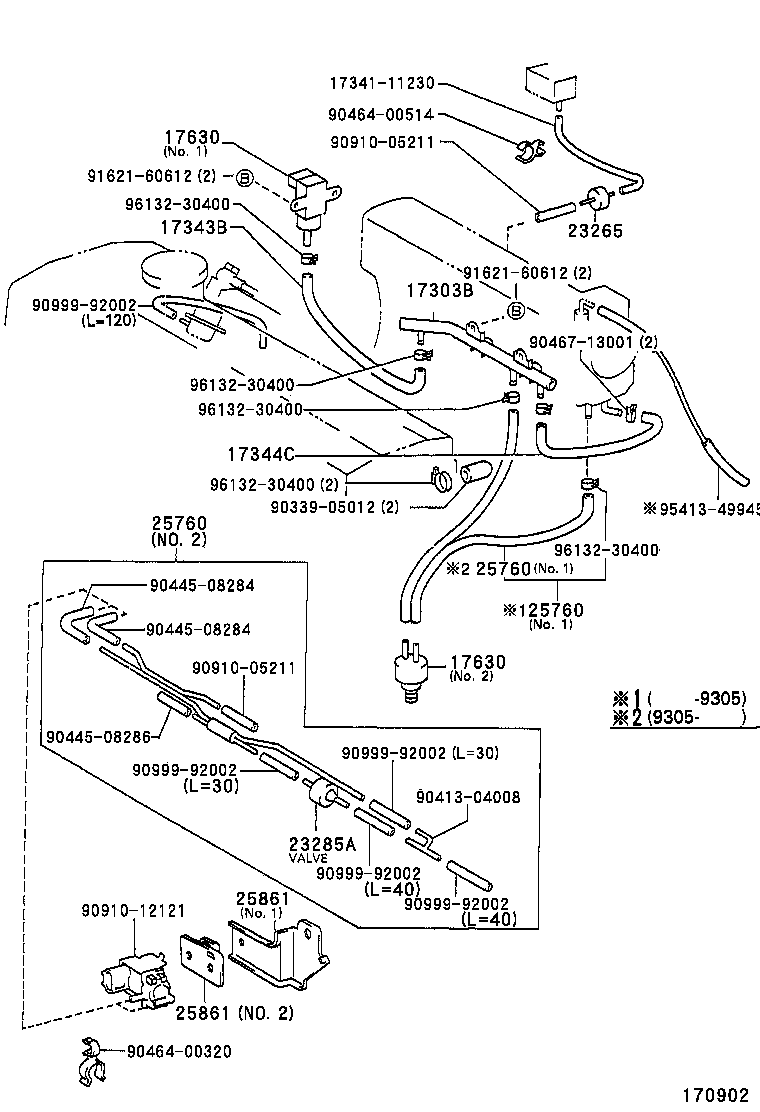

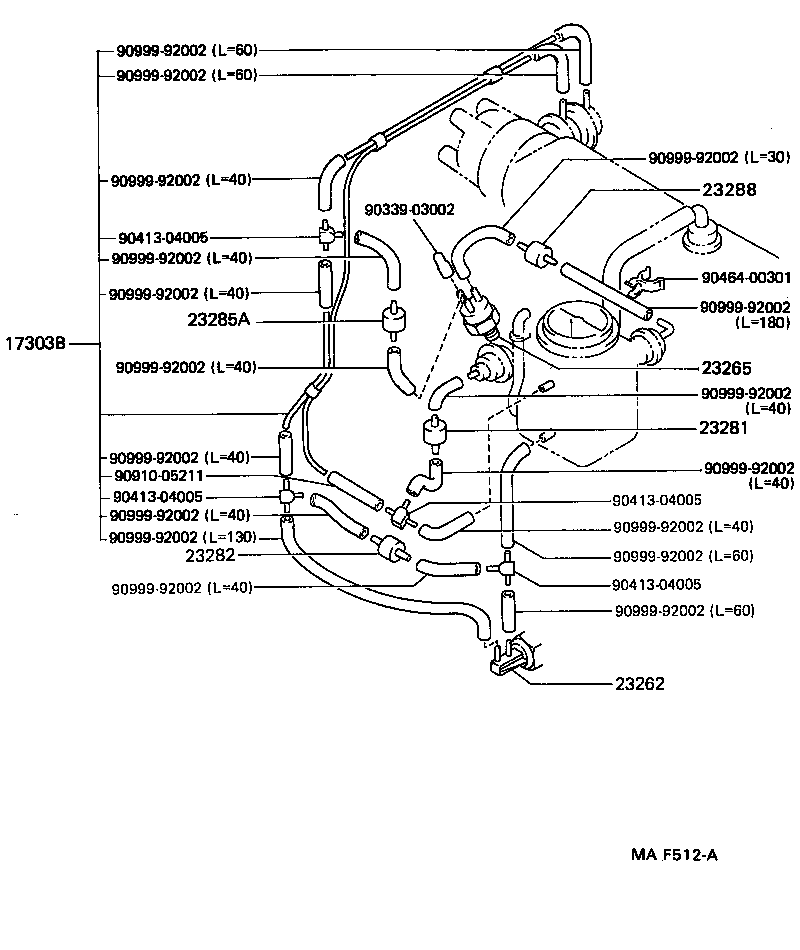

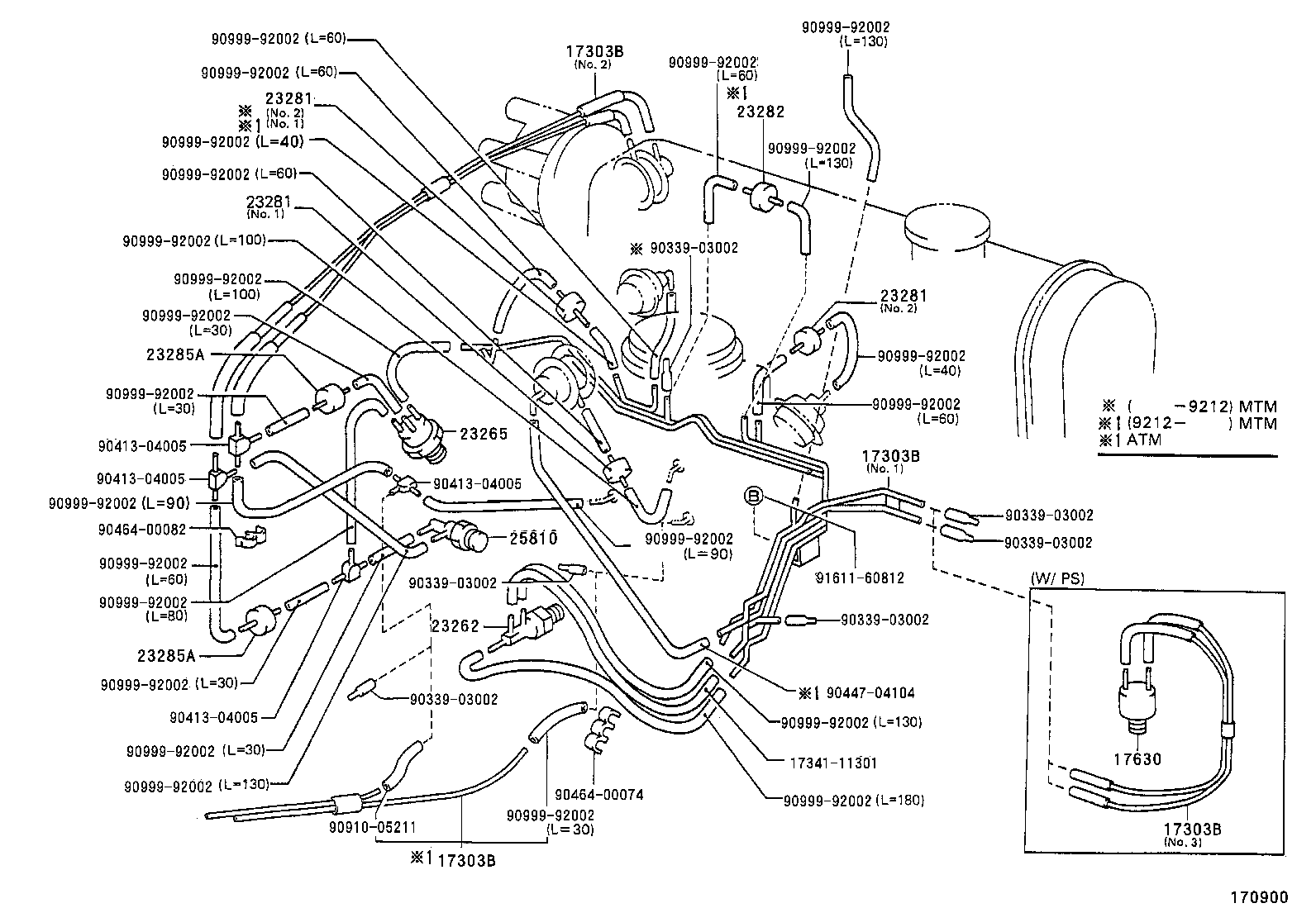

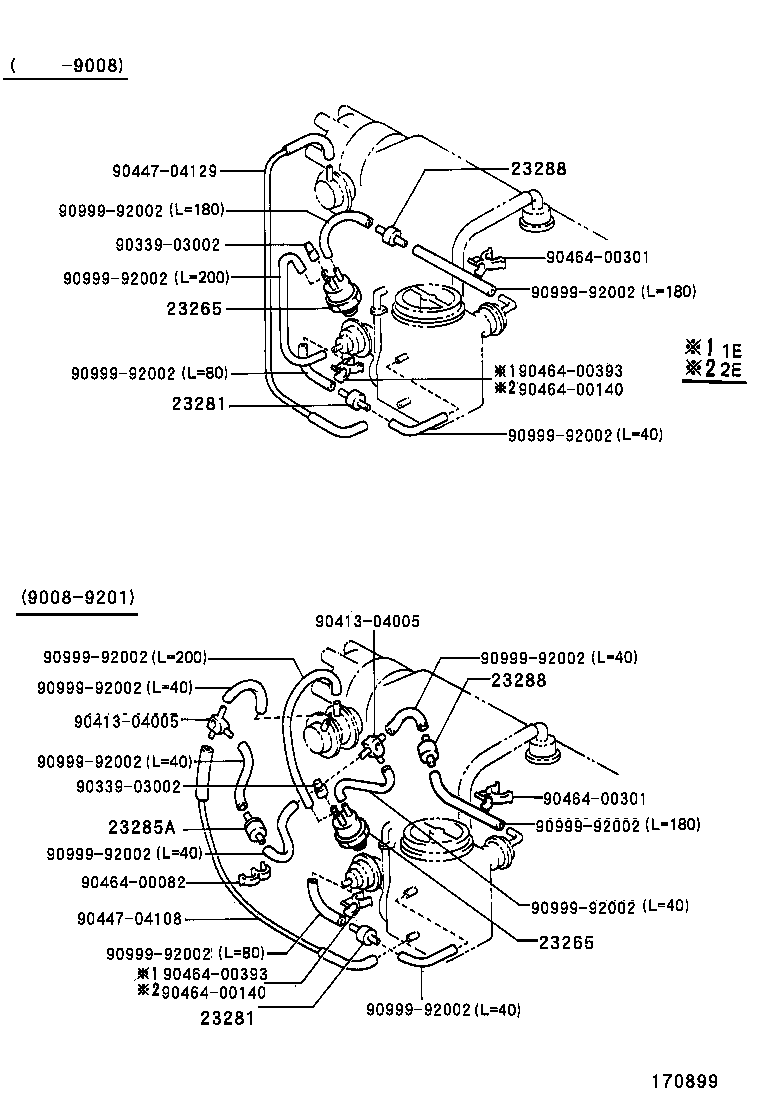

Figure 170021 170021 1989-12 → — Figure 170898 170898 1989-12 → 1992-01 Figure 170899 170899 1989-12 → 1992-01 Figure MAF512A MAF512A 1992-01 → — Figure 170900 170900 1992-01 → — Figure 170901 170901 1991-01 → — Figure 170902 170902 1992-01 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17343B Hose, NO.3(FOR IDLE-UP)
17344C Hose, NO.4(FOR IDLE-UP)
17630 Valve Assy, Air Control
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23288 Jet, NO.1
25760 Hose Assy, Vacuum Transmitting
25810 Valve Assy, Bimetal
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
