Toyota Starlet

1989-12 → 1998-03 · chassis EP8# · catalogue 121340 · General

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

8 part groups · 3 illustrations

Illustrations

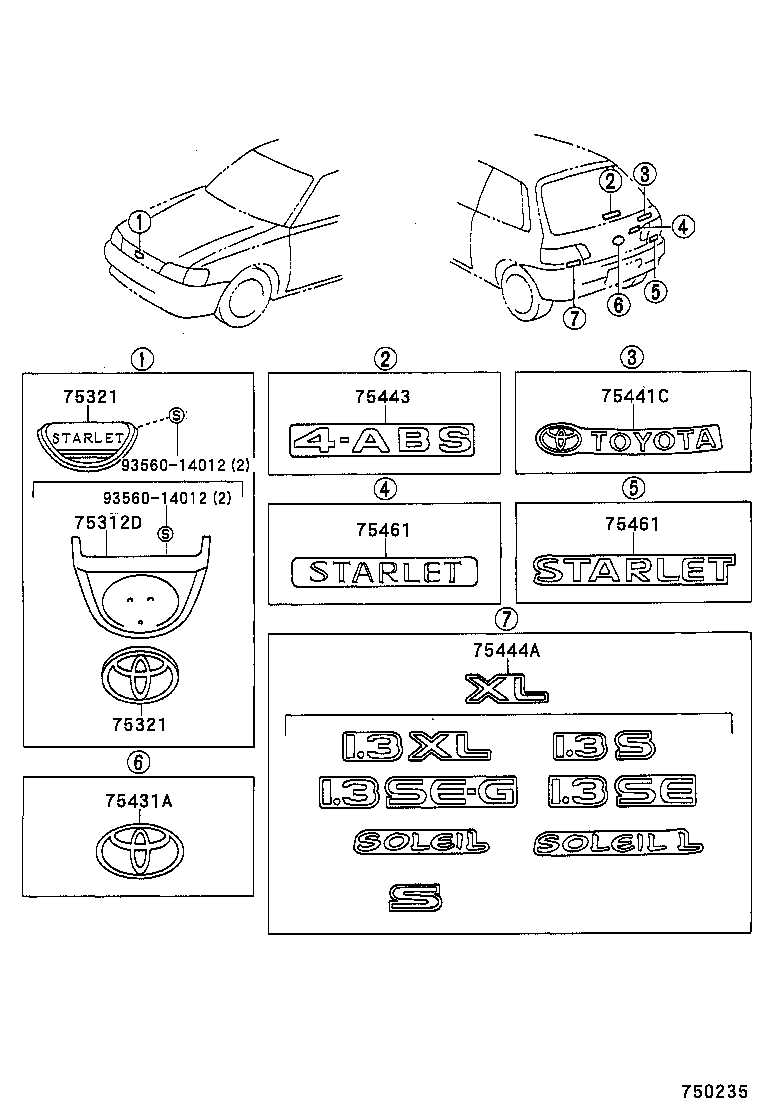

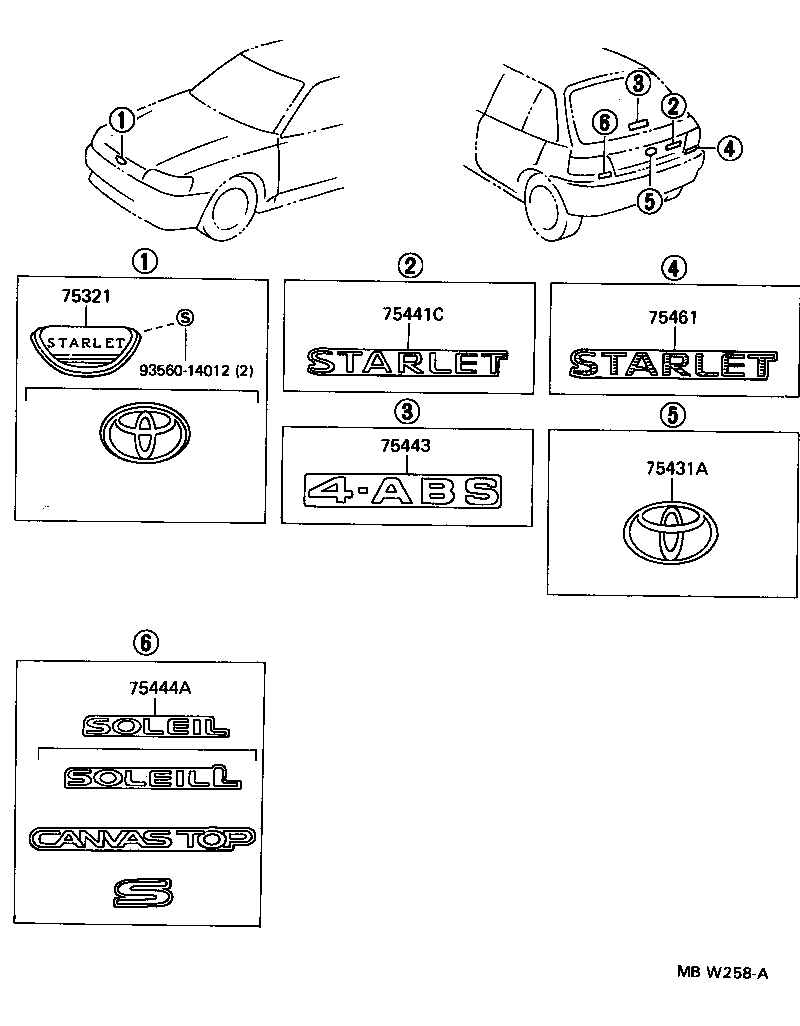

Figure MBT744D MBT744D 1989-12 → 1994-05 Figure MBW258A MBW258A 1992-01 → 1994-05 Figure 750235 750235 1994-05 → —

Part groups

PNCDescription
75312D Base, Radiator Grille Emblem
75321 Plate, Radiator Grille OR Front Panel Name
75431A Emblem, Back Door, NO.1
75441C Plate, Back Door Name
75443 Plate, Back Door Name, NO.3
75444A Plate, Back Door Name, NO.4
75446 Plate, Luggage Compartment Door Name, NO.6
75461 Plate, Rear Name, NO.2 (MODEL MARK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
