Toyota Starlet

1989-12 → 1998-03 · chassis EP8# · catalogue 121340 · General

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

14 part groups · 2 illustrations

Illustrations

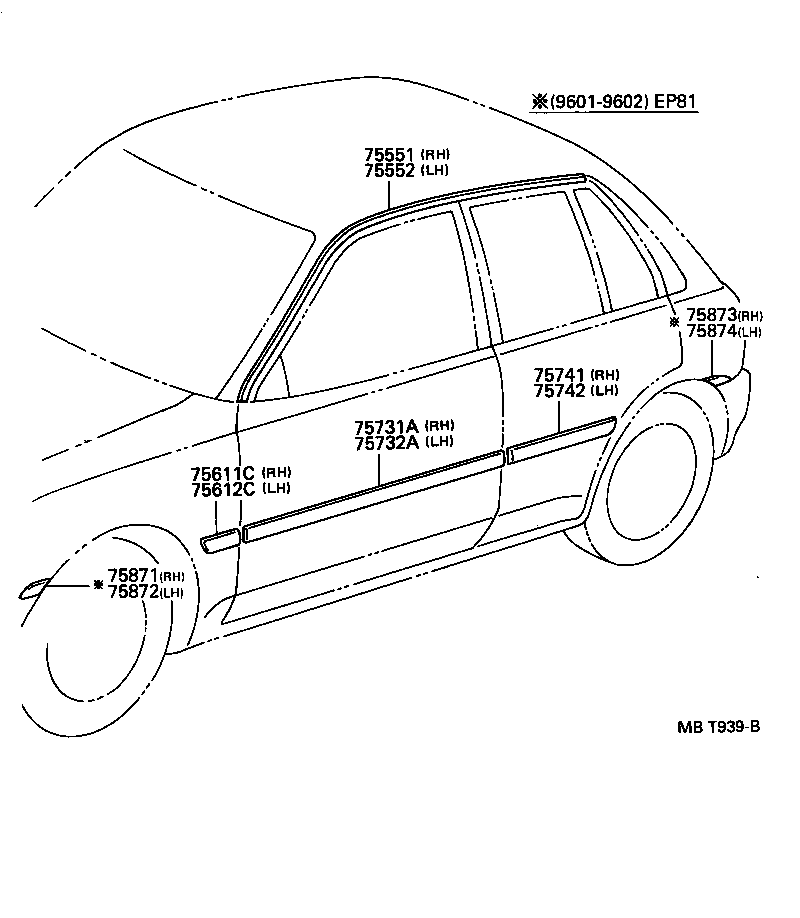

Figure MBT937A MBT937A 1989-12 → — Figure MBT939B MBT939B 1989-12 → —

Part groups

PNCDescription
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75611C Moulding, Front Fender, Outside RH
75612C Moulding, Front Fender, Outside LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75871 Moulding, Front Fender Wheel Opening, RH
75872 Moulding, Front Fender Wheel Opening, LH
75873 Moulding, Quarter Panel Wheel Opening, RH
75874 Moulding, Quarter Panel Wheel Opening, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
