Factory parts data · Europe

Toyota Starlet

1989-12 → 1998-03 · chassis EP8# · catalogue 121340 · General

Discontinued model Data version 1998-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

5 part groups · 3 illustrations

Illustrations

Figure MEP750

MEP750 1992-01 → —

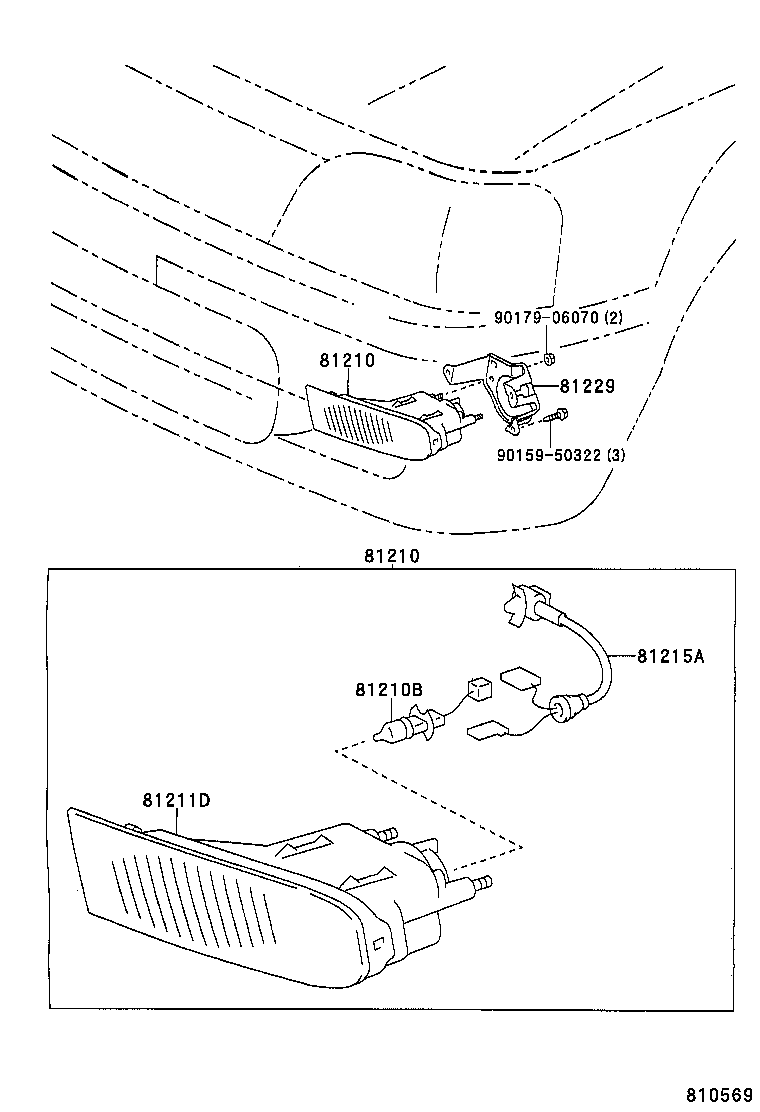

810569 1994-05 → —

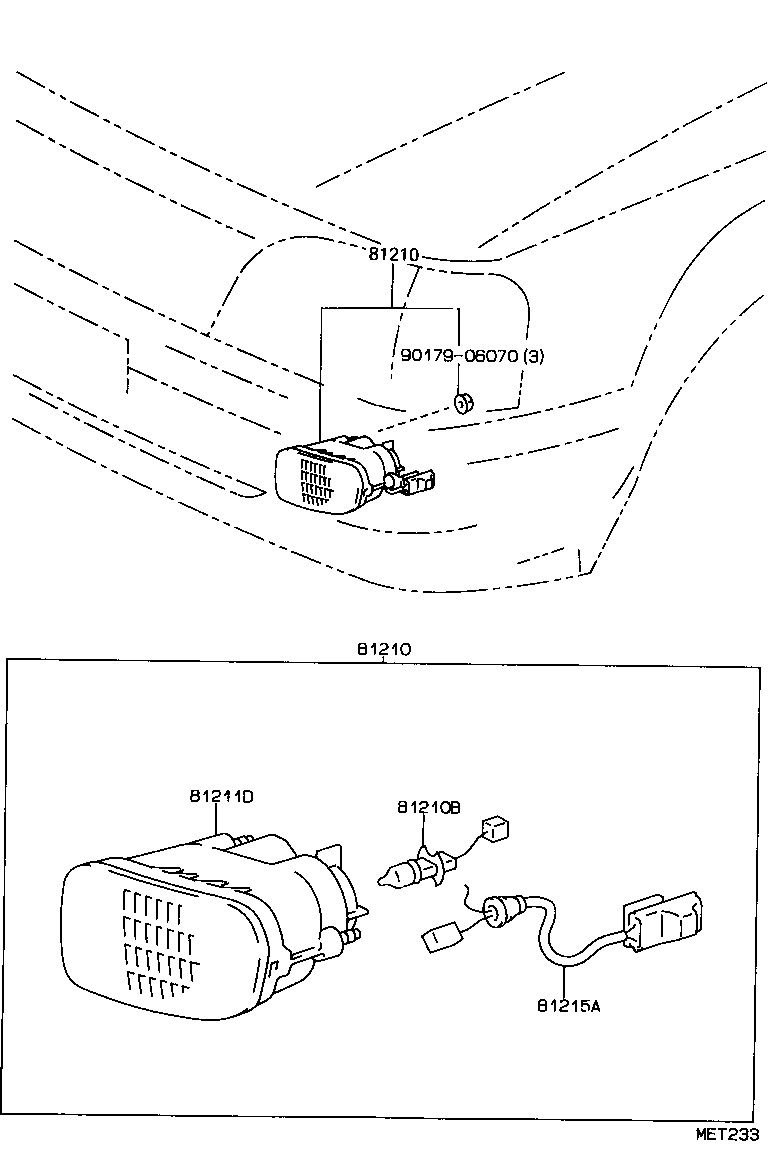

Figure MET233

MET233 1992-01 → —

Part groups

PNC	Description
81210	Lamp Assy, Fog
81210B	Bulb, Fog Lamp
81211D	Lamp Unit, Fog Lamp
81215A	Socket & Wire, Fog Lamp
81229	Bracket, Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
