Toyota Starlet

1989-12 → 1998-03 · chassis EP8# · catalogue 121340 · General

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

68 part groups · 8 illustrations

Illustrations

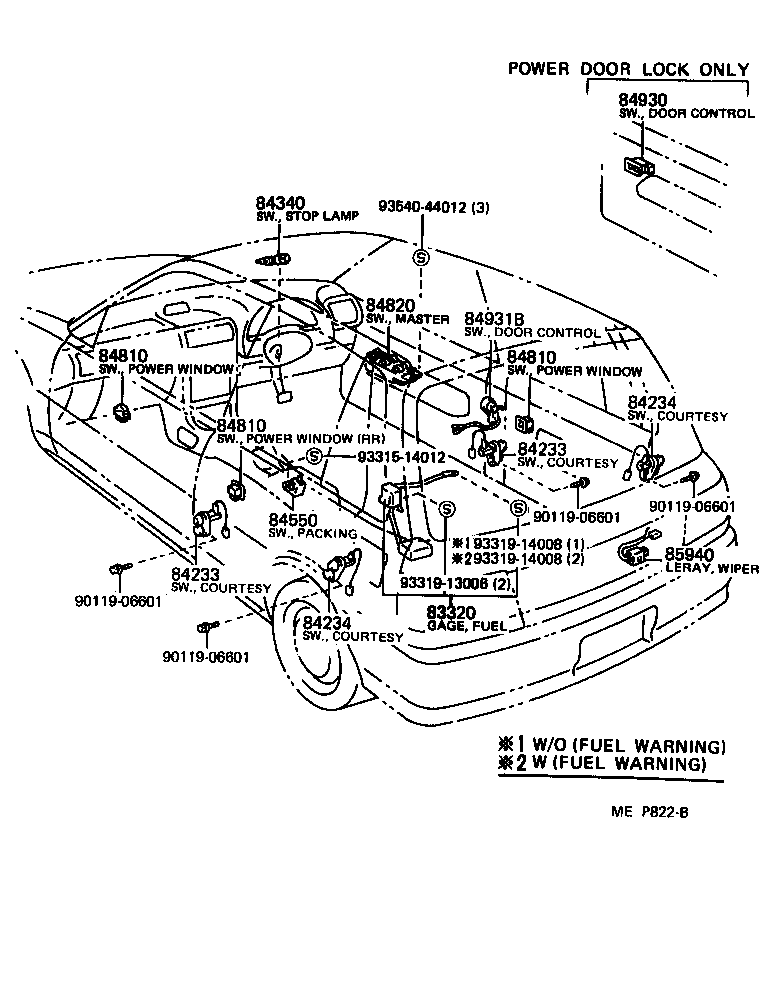

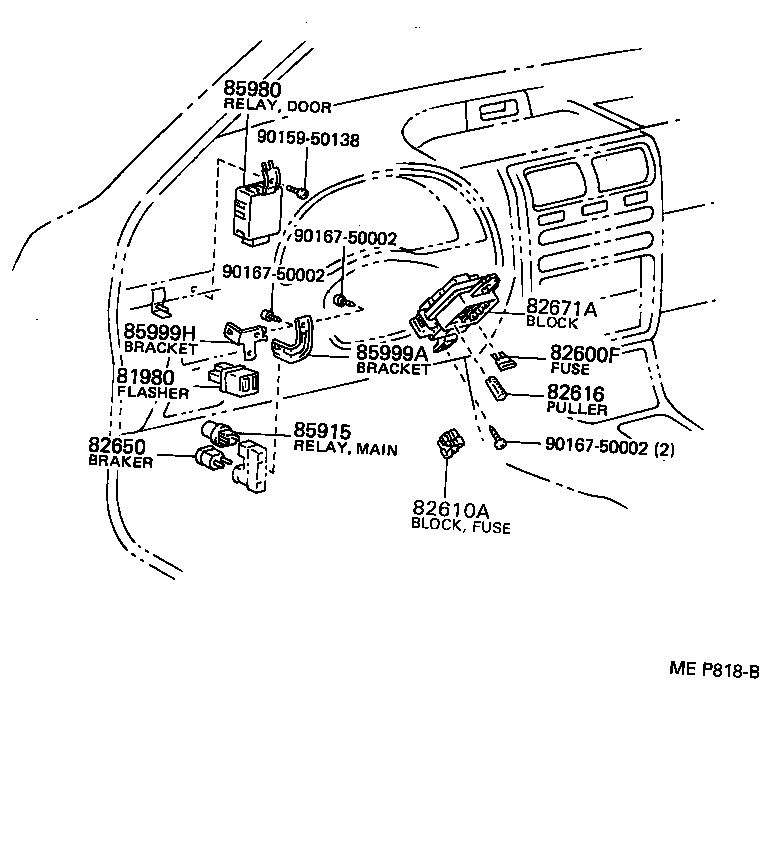

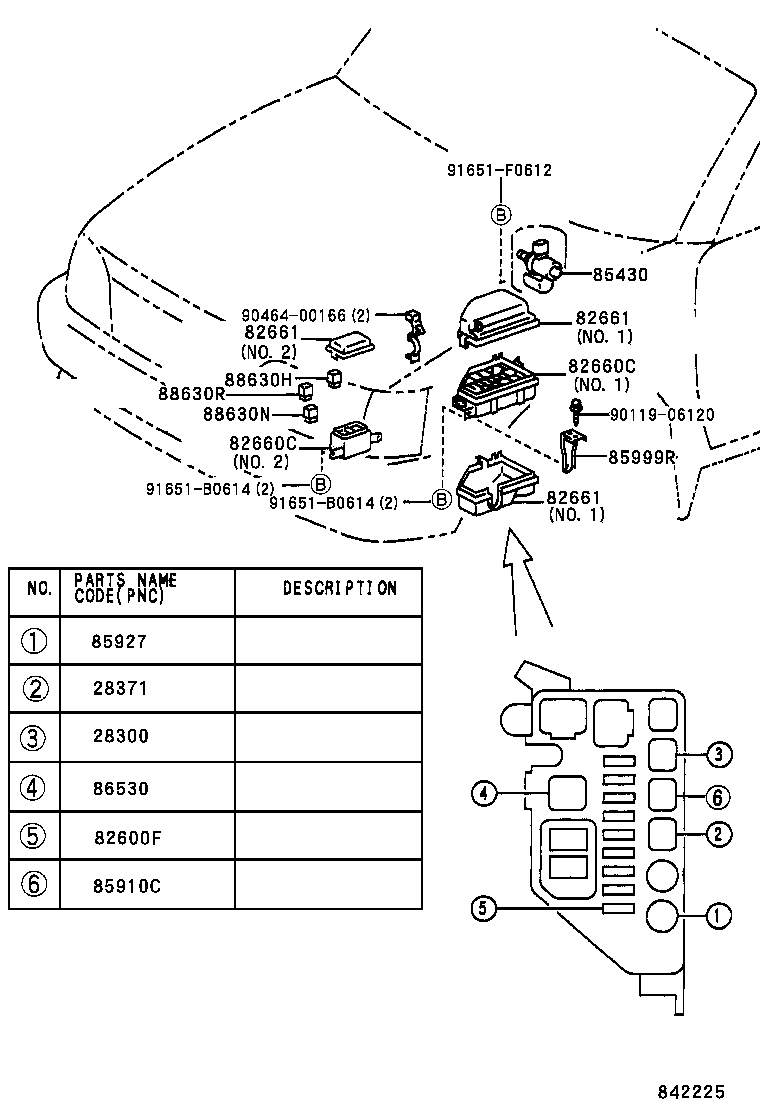

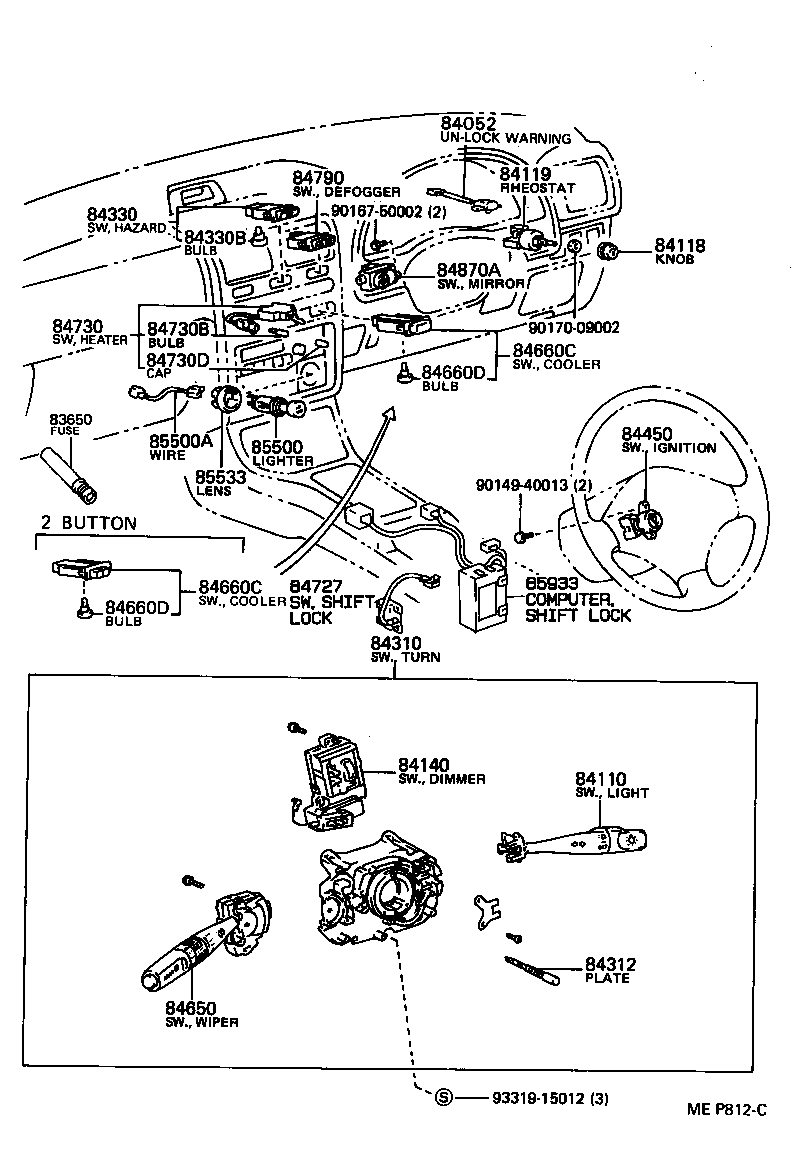

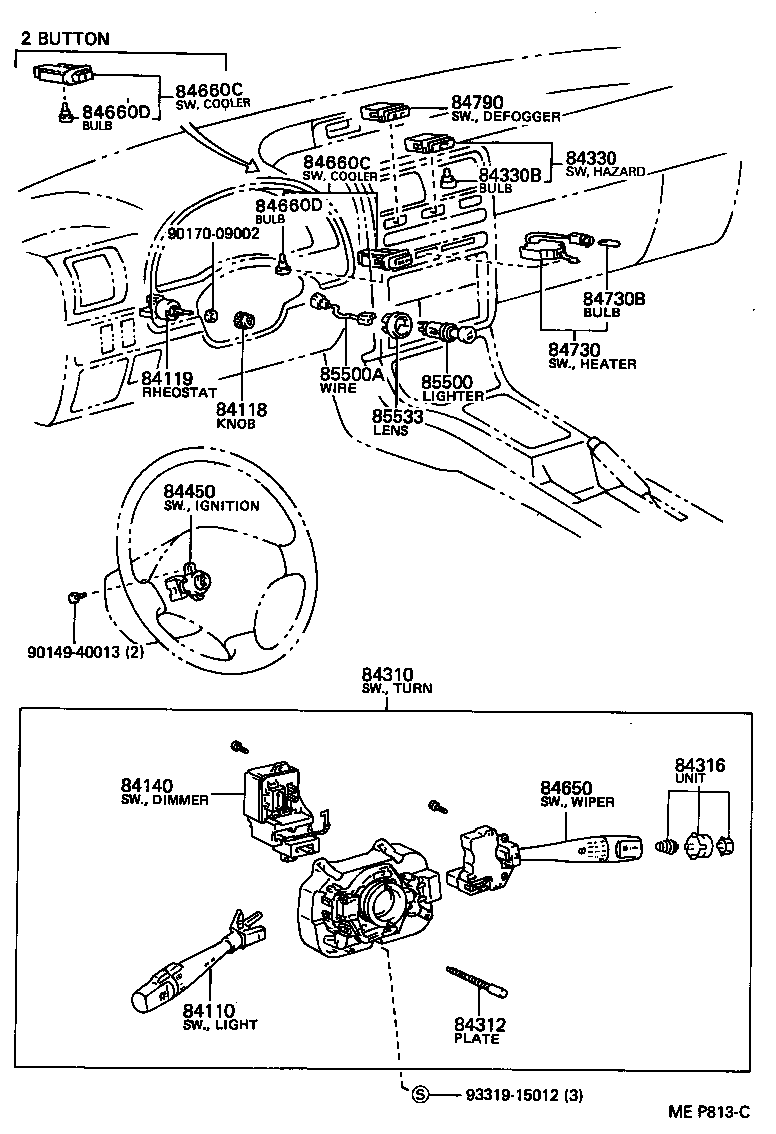

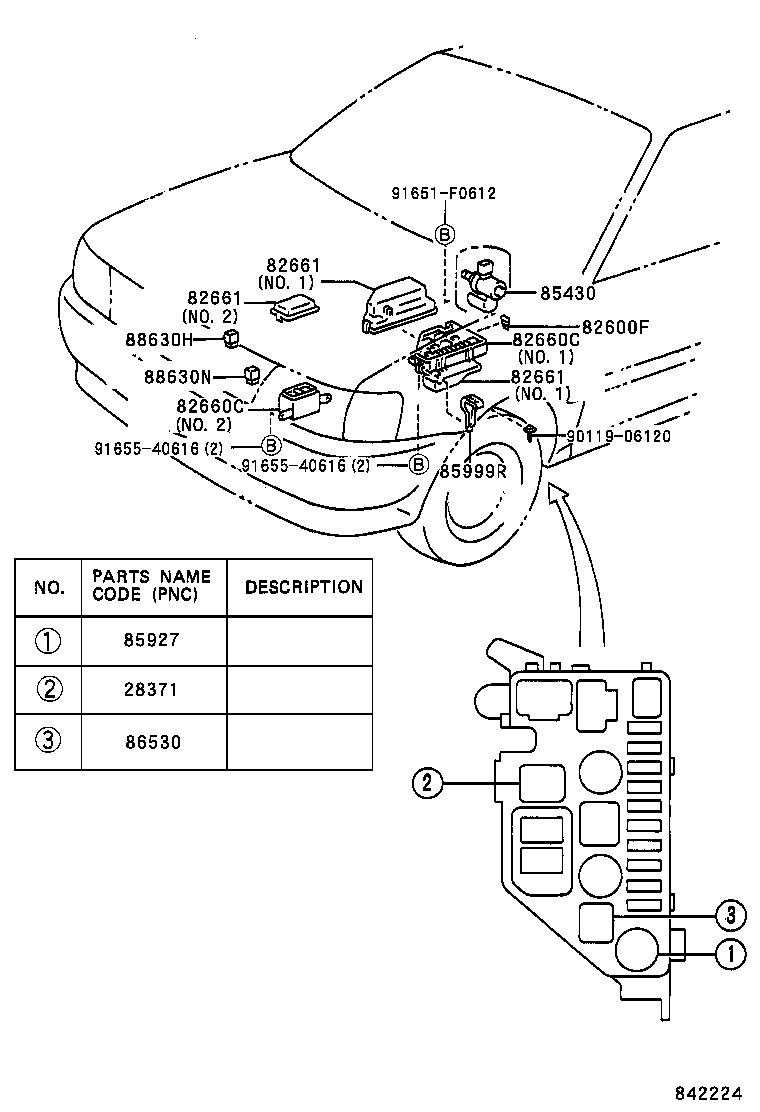

Figure MEP742D MEP742D 1989-12 → — Figure 842224 842224 1989-12 → 1992-01 Figure 842225 842225 1992-01 → — Figure MEP812C MEP812C 1989-12 → — Figure MEP813C MEP813C 1989-12 → 1996-01 Figure MEP817C MEP817C 1989-12 → — Figure MEP818B MEP818B 1989-12 → 1996-01 Figure MEP822B MEP822B 1989-12 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82616 Puller, Fuse
82650 Breaker Assy, Wiring Circuit, NO.1
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
82671A Block, Junction
82821B Cover, Connector
82821D Cover, Connector
83320 Gage Assy, Fuel Sender
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84052 Switch Assy, Un-lock Warning
84110 Switch Assy, Light Control, NO.1
84118 Knob, Light Control Rheostat
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84162 Switch, Front Fog Lamp
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84316 Unit, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84660C Switch, Cooler
84660D Bulb(FOR COOLER SWITCH)
84727 Switch, Shift Lock Control
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84730D Cap, Heater Blower Switch Bulb
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84931B Switch, Door Control
85430 Valve, Outer Vent Control
85500 Lighter Assy, Cigarette
85500A Wire, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85915 Relay, Main
85927 Relay, Cooling Fan
85933 Computer, Shift Lock Control
85940 Relay Assy, Windshield Wiper
85969 Relay, Light Reminder
85980 Relay Assy, Door Control
85999A Bracket, Relay, NO.2
85999H Bracket, Relay
85999R Bracket, Relay, NO.6
86530 Relay Assy, Horn
88630H Relay Assy, Cooler
88630N Relay Assy, Cooler
88630R Relay Assy, Cooler, NO.3
89425 Sensor, Exhaust Gas Temperature
89428 Switch, Temperature Detect, NO.2
89465 Sensor, Oxygen
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
