Toyota Starlet
1989-12 → 1998-03 · chassis EP8# · catalogue 121340 · General
Discontinued model
Data version 1998-11
Heating & Air Conditioning - Heater Unit & Blower
13 part groups · 3 illustrations
Part groups

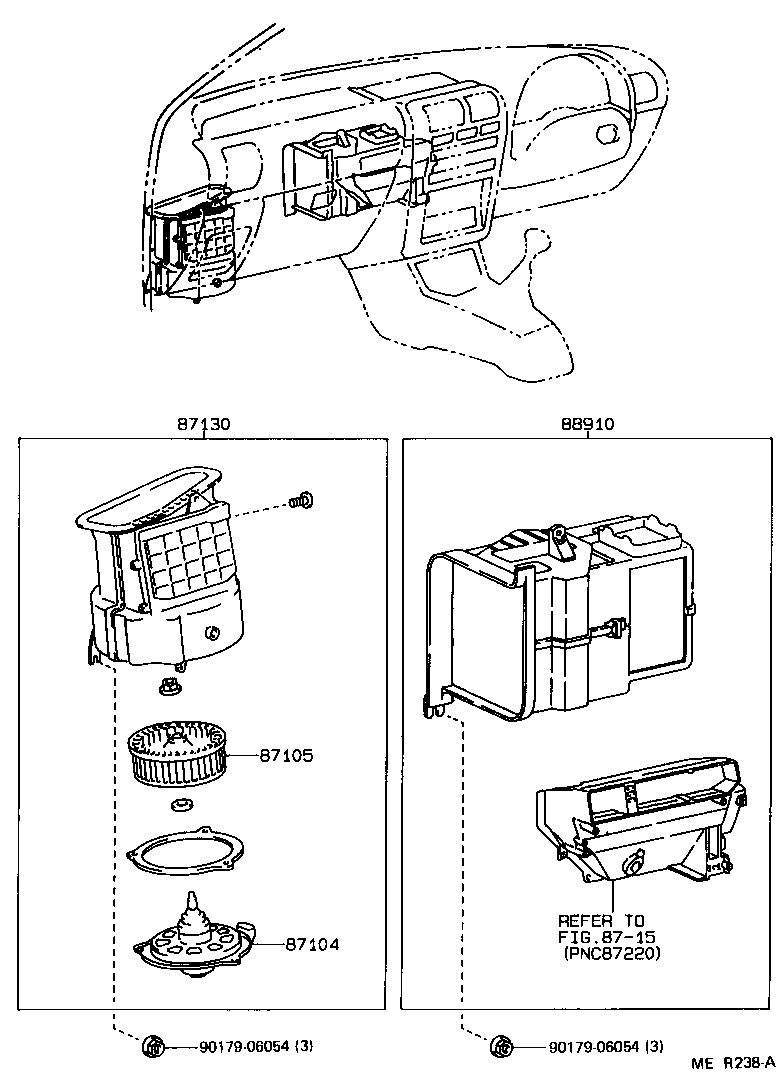

| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87114 | Cover, Heater |
| 87130 | Blower Assy, Heater, Front |
| 87150 | Radiator Assy, Heater |
| 87660 | Servo Assy, Air Conditioner |
| 88630M | Relay Assy, Cooler |
| 88650D | Amplifier Assy |
| 88650F | Amplifire & Accessory Assy, Air Conditioner |
| 88655B | Switch, Water Temperature |
| 88897R | Aspirator |
| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
