Toyota Starlet
1989-12 → 1998-03 · chassis EP8# · catalogue 121340 · General
Discontinued model
Data version 1998-11

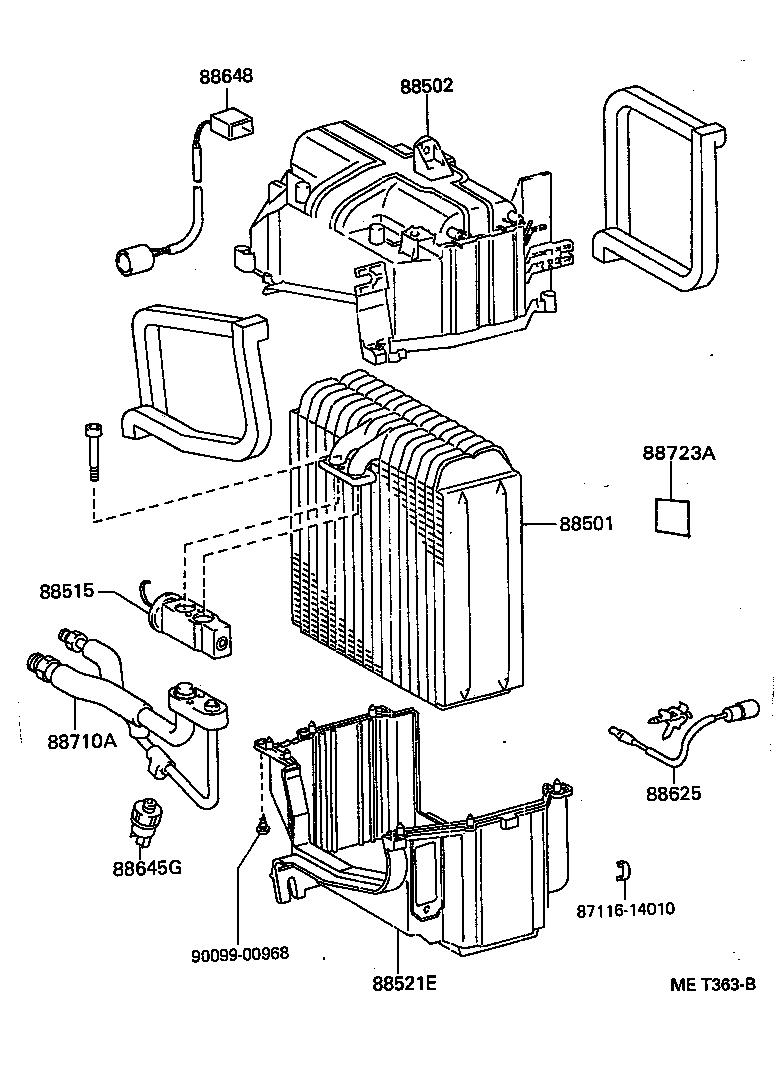

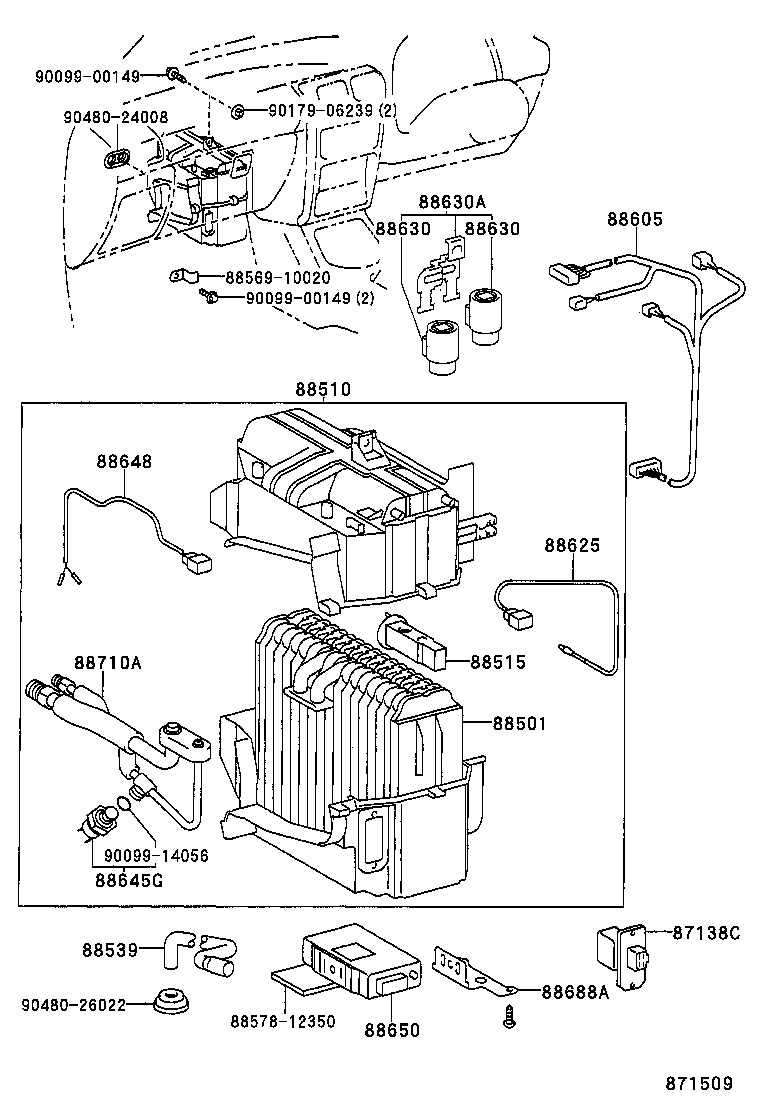

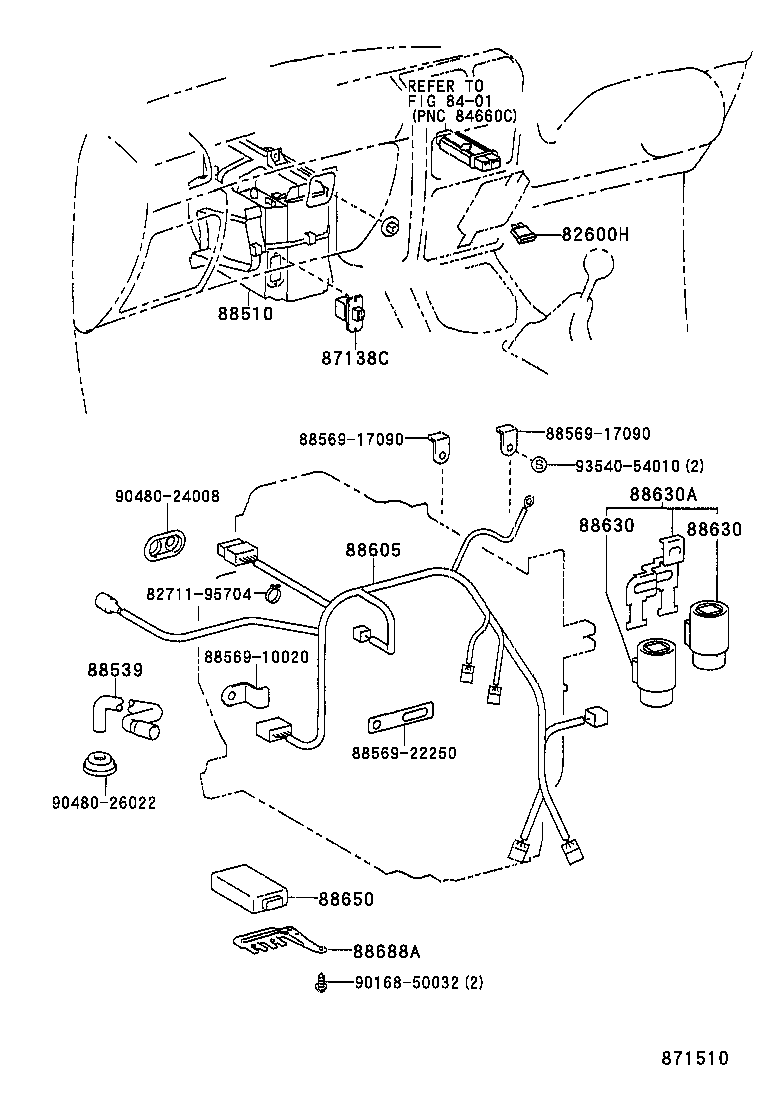

Heating & Air Conditioning - Cooler Unit
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82600H | Fuse, Fuse Block |
| 87138C | Resistor, Blower |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88502 | Case Sub-assy, Cooling Unit |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88521E | Case Sub-assy, Cooling Unit |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630 | Relay Assy, Cooler |
| 88630A | Relay Assy, Cooler |
| 88645G | Switch, Pressure |
| 88648 | Wiring, Cooler, NO.1 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88688A | Bracket, Cooler Stabilizer Amplifier |
| 88710A | Tube Assy, Air Conditioner |
| 88723A | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
