Toyota Starlet
1996-01 → 1999-07 · chassis EP9# · catalogue 121350 · General
Discontinued model
Data version 2000-01

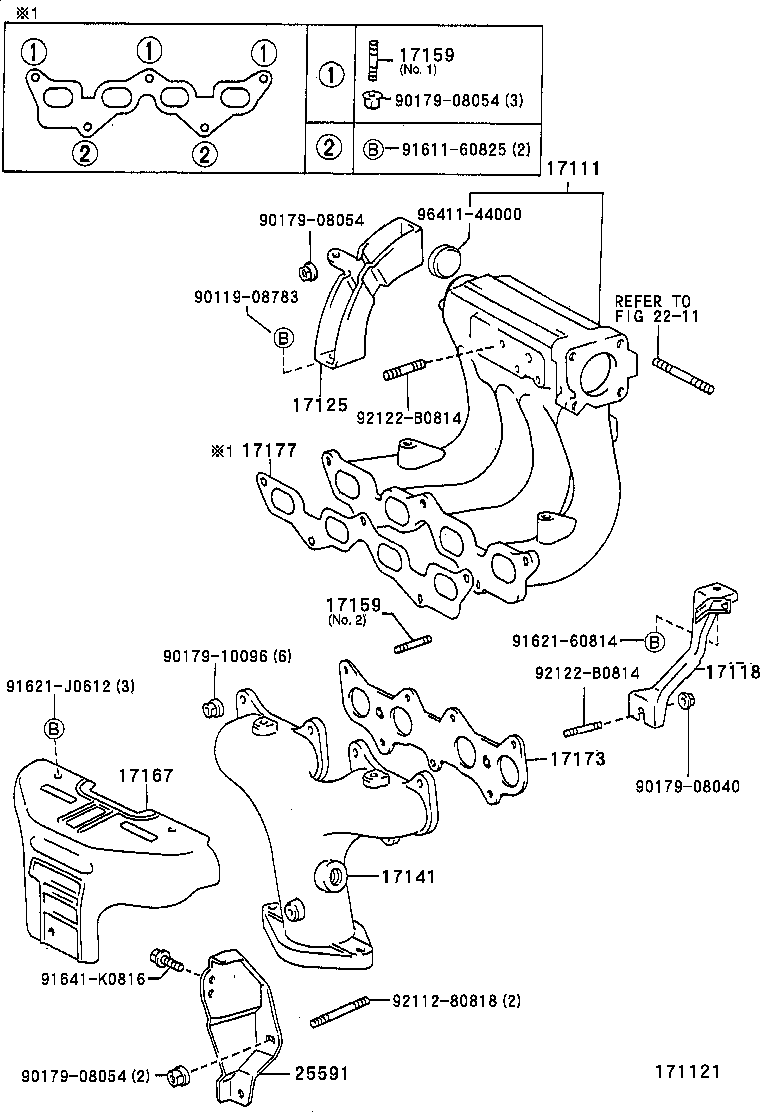

Manifold
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16265 | Hose, Intake Manifold Water |
| 16265A | Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER) |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17118 | Stay, Manifold |
| 17125 | Stay, Surge Tank, NO.1 |
| 17141 | Manifold, Exhaust |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 25591 | Bracket, Manifold Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
