Toyota Starlet

1996-01 → 1999-07 · chassis EP9# · catalogue 121350 · General

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

13 part groups · 2 illustrations

Illustrations

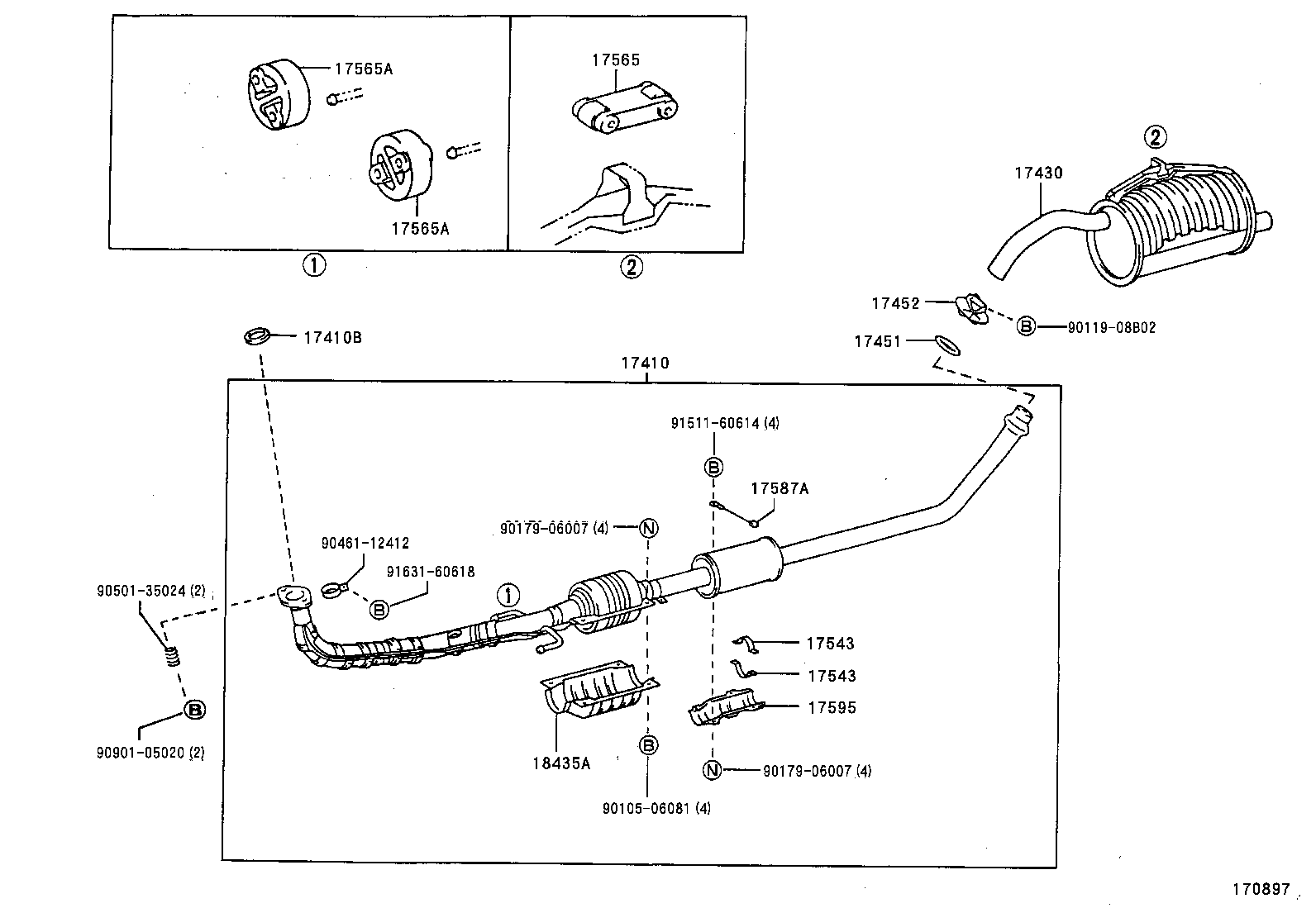

Figure MAJ818A MAJ818A 1996-01 → — Figure 170897 170897 1996-01 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17543 Stay, Exhaust Pipe Protector, NO.3
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17587A Clamp Exhaust Pipe Hanger
17595 Protector, Exhaust Pipe, Lower NO.3
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
