Toyota Starlet
1996-01 → 1999-07 · chassis EP9# · catalogue 121350 · General
Discontinued model
Data version 2000-01

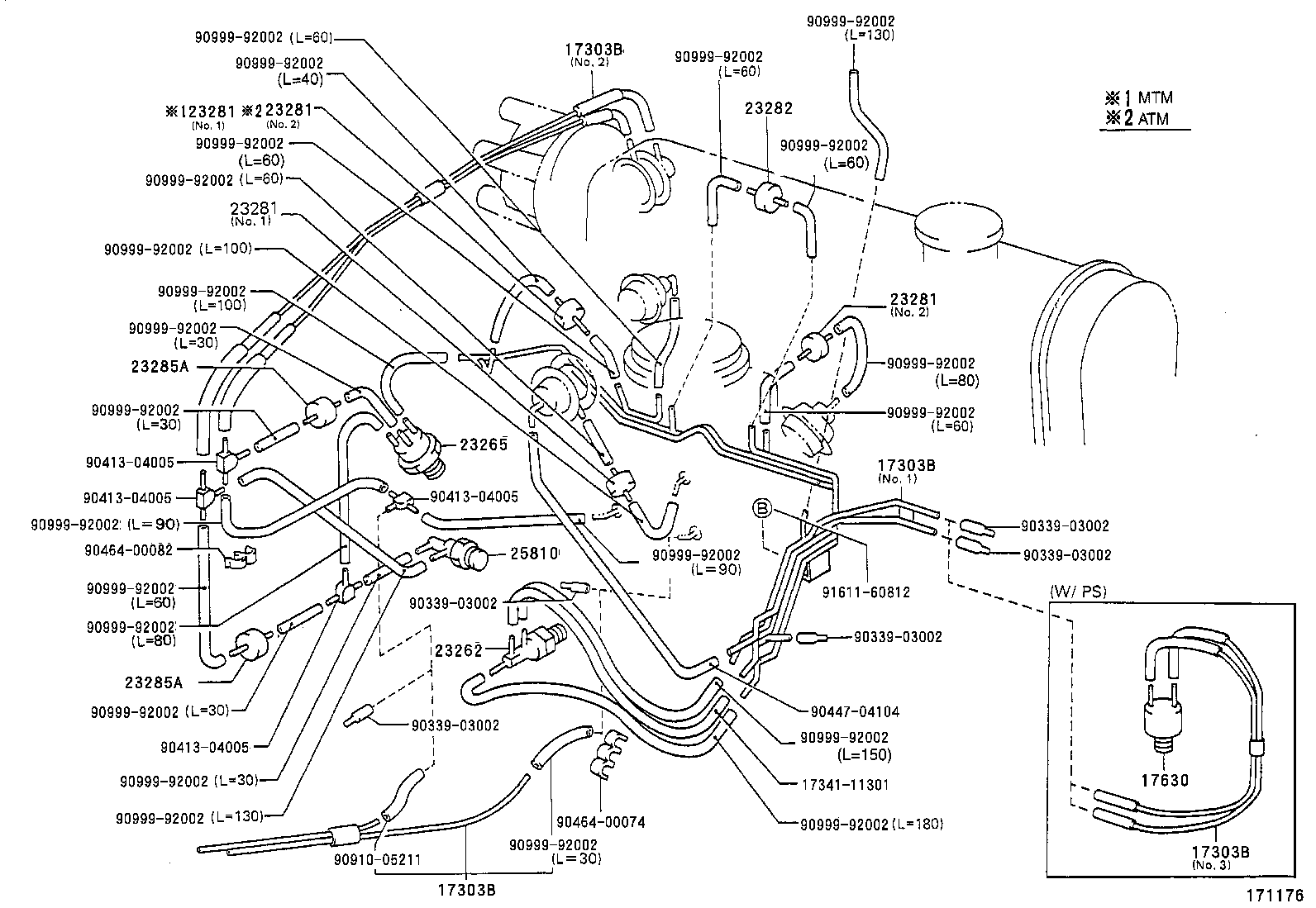

Vacuum Piping
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302 | Hose Sub-assy, Air |
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17630 | Valve Assy, Air Control |
| 23262 | Valve, Bimetal Vacuum Switching, NO.1 |
| 23265 | Filter, Gas, NO.1 |
| 23281 | Valve, Vacuum Transmitting, NO.1 |
| 23282 | Valve, Vacuum Transmitting, NO.2 |
| 23285A | Valve, Check, NO.1 |
| 25810 | Valve Assy, Bimetal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
