Toyota Starlet

1996-01 → 1999-07 · chassis EP9# · catalogue 121350 · General

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

29 part groups · 3 illustrations

Illustrations

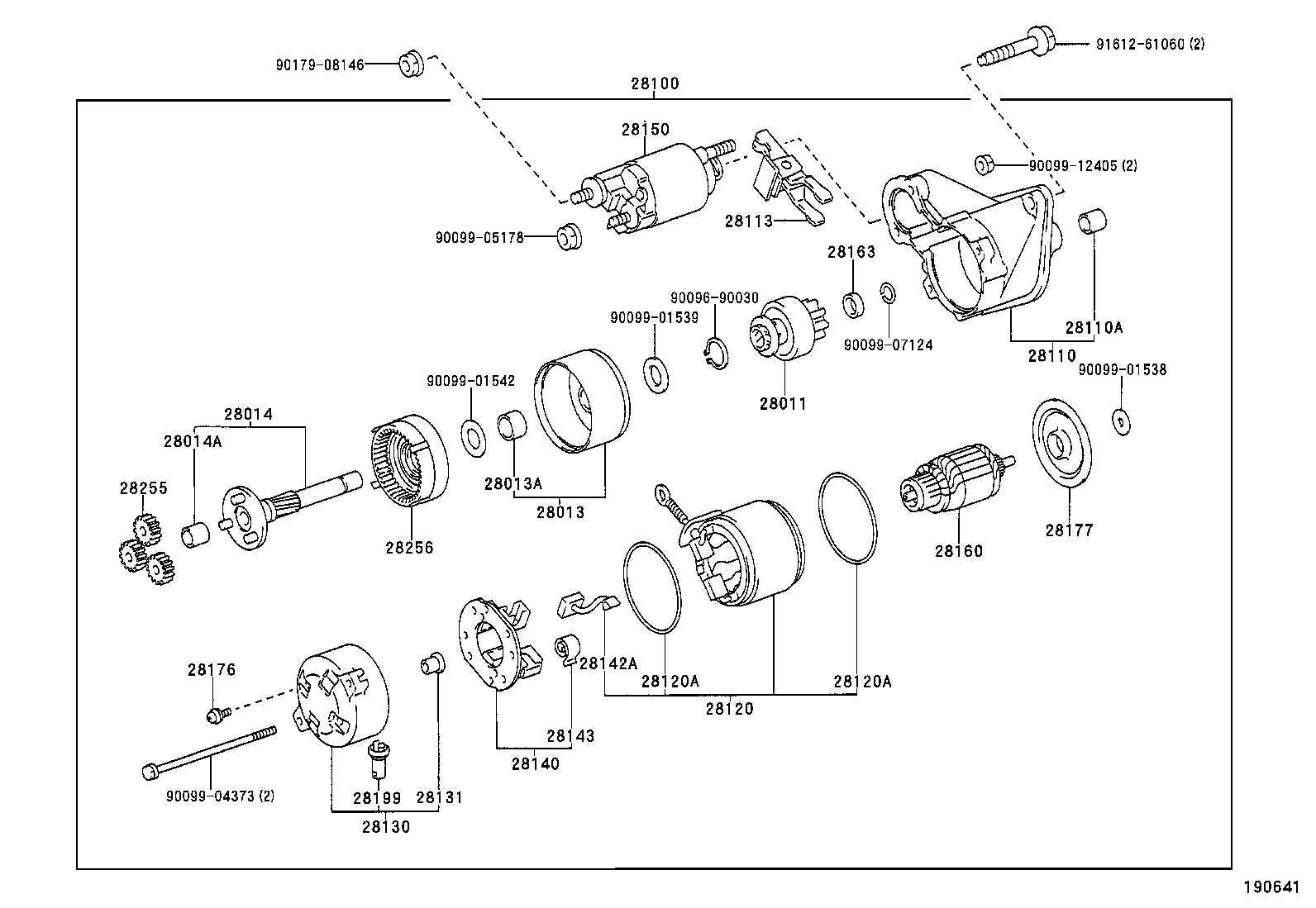

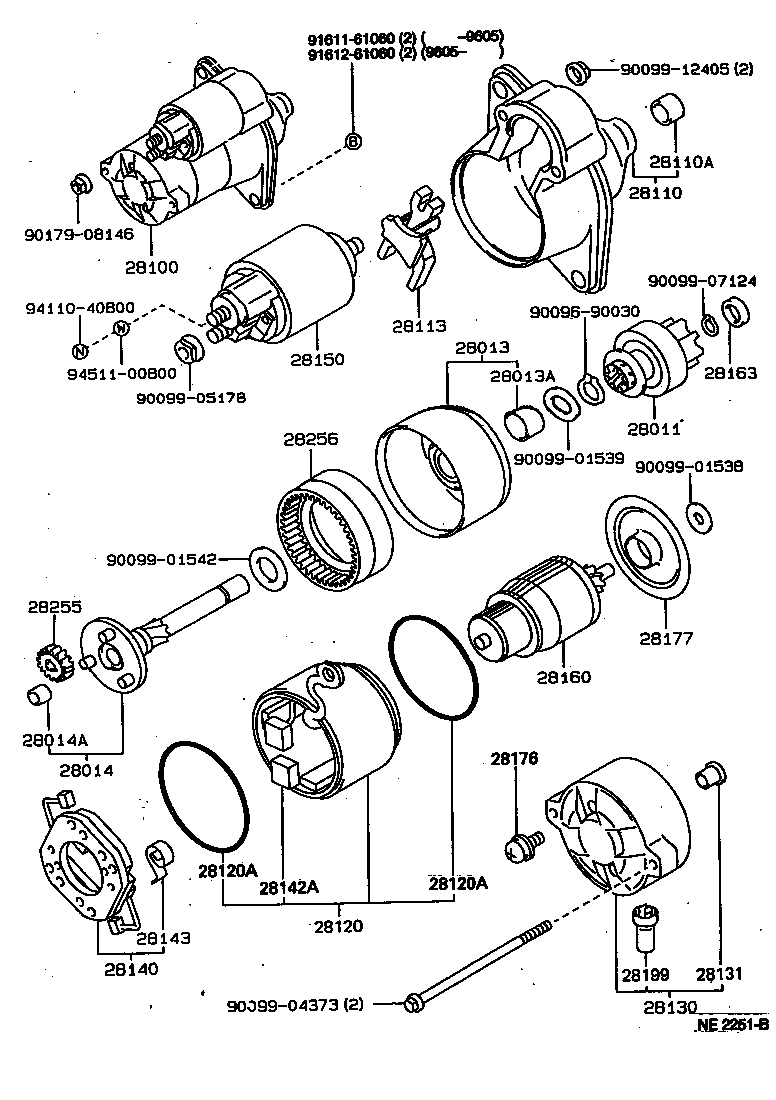

Figure NE2250A NE2250A 1996-01 → 1997-12 Figure NE2251B NE2251B 1996-01 → 1997-12 Figure 190641 190641 1997-12 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28013 Bearing, Starter Center & Shock Absorber, NO.1
28013A Bearing, Starter Center & Shock Absorber, NO.2
28014 Shaft Sub-assy, Planet Carrier
28014A Bush OR Bearing, Planet Carrier Shaft
28100 Starter Assy
28110 Housing Assy, Starter Drive
28110A Bearing(FOR STARTER HOUSING)
28111 Bush(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28131 Bush, Commutator End Frame
28133 Cover, Bearing(FOR END FRAME)
28136 Plate, Starter Lock
28138 Rubber(FOR STARTER BEARING COVER)
28140 Holder Assy, Starter Brush
28142A Starter Kit
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28162 Spring, Starter Brake
28163 Nut OR Collar, Pinion Stop, Starter
28176 Screw, Starter
28177 Plate(FOR STARTER ARMATURE)
28199 Cover, Starter
28255 Gear, Planet
28256 Gear, Starter Internal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
