Toyota Starlet

1996-01 → 1999-07 · chassis EP9# · catalogue 121350 · General

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

14 part groups · 2 illustrations

Illustrations

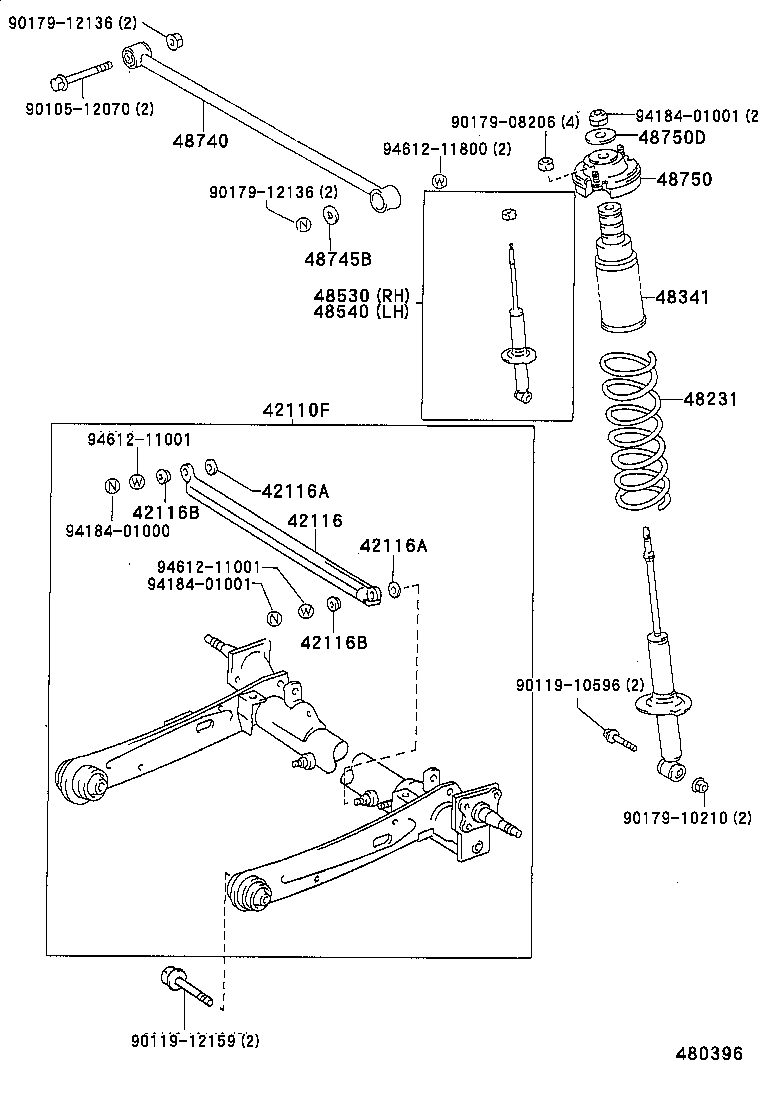

Figure 480491A 480491A 1996-01 → — Figure 480396 480396 1996-01 → —

Part groups

PNCDescription
42110F Beam Assy, Rear Axle
42116 Cover, Rear Axle Beam
42116A Cushion, NO.1 (FOR REAR AXLE BEAM COVER)
42116B Cushion, NO.2 (FOR REAR AXLE BEAM COVER)
48231 Spring, Coil, Rear
48341 Bumper, Rear Spring
48530 Absorber Assy, Shock, Rear RH
48540 Absorber Assy, Shock, Rear LH
48725B Bush, Rear Suspension Arm, NO.1
48726 Seat, Rear Suspension Arm
48740 Rod Assy, Rear Lateral Control
48745B Washer, Lateral Control Rod Cushion
48750 Support Assy, Rear Suspension
48750D Retainer(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
