Toyota Starlet
1996-01 → 1999-07 · chassis EP9# · catalogue 121350 · General
Discontinued model
Data version 2000-01

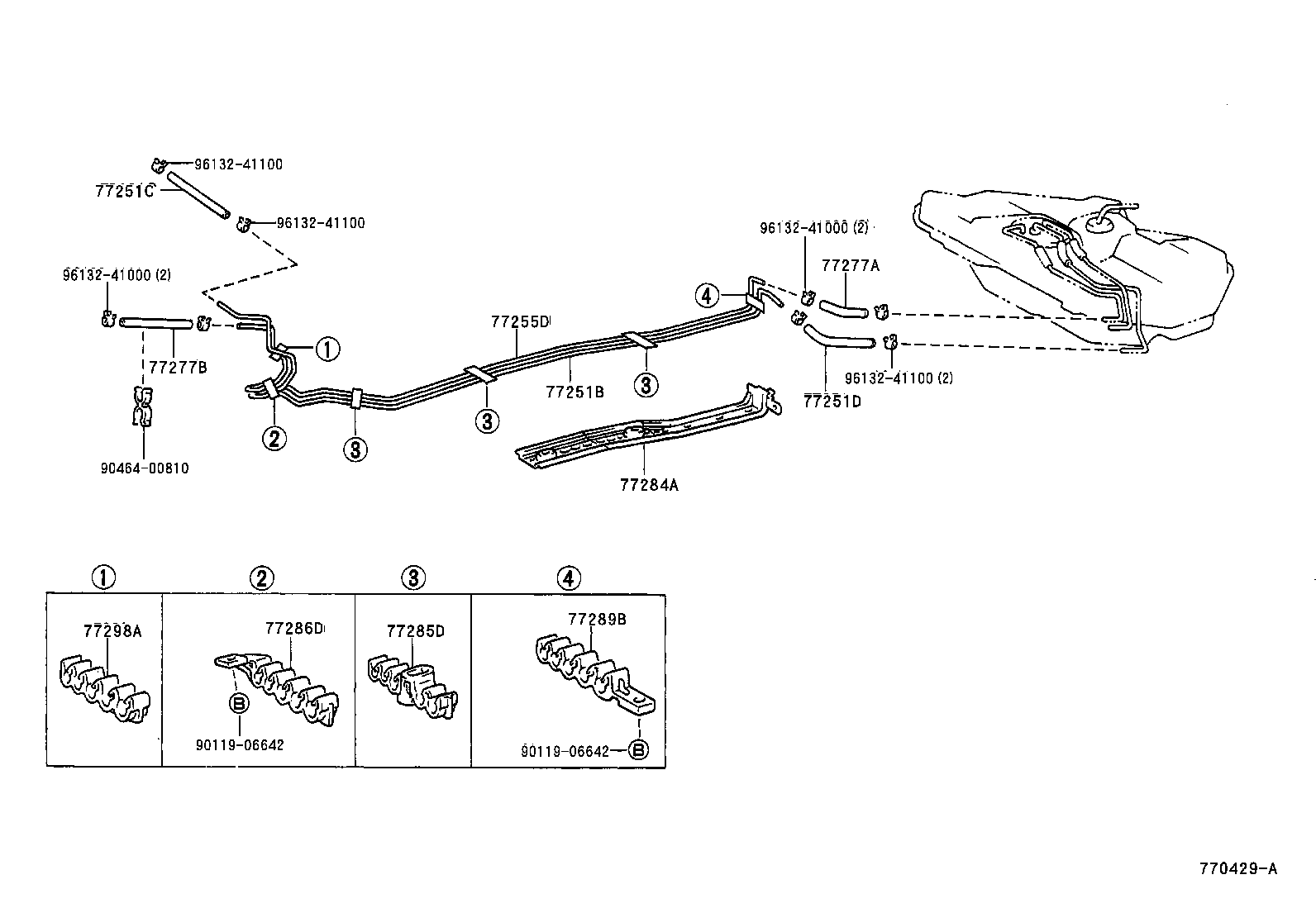

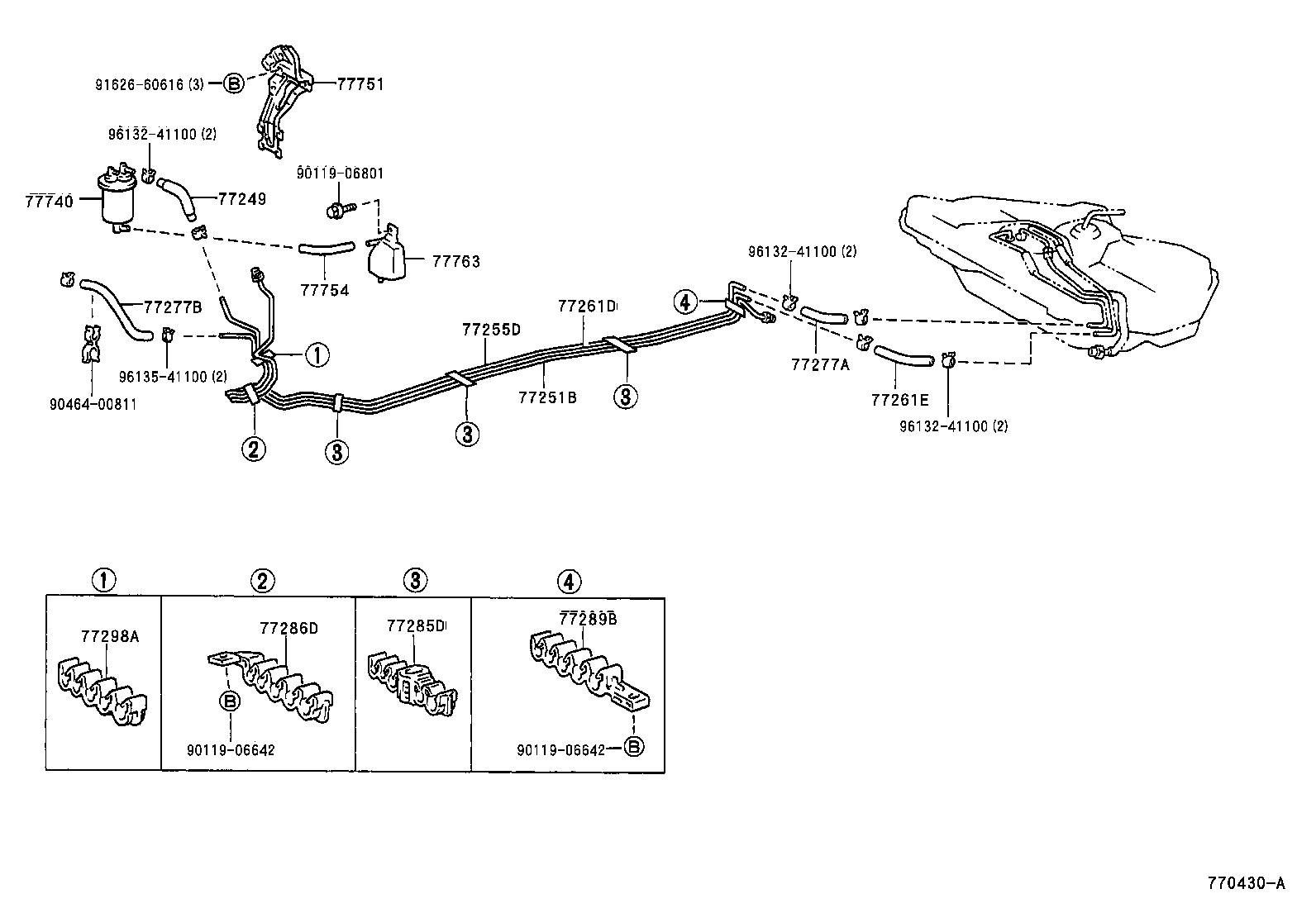

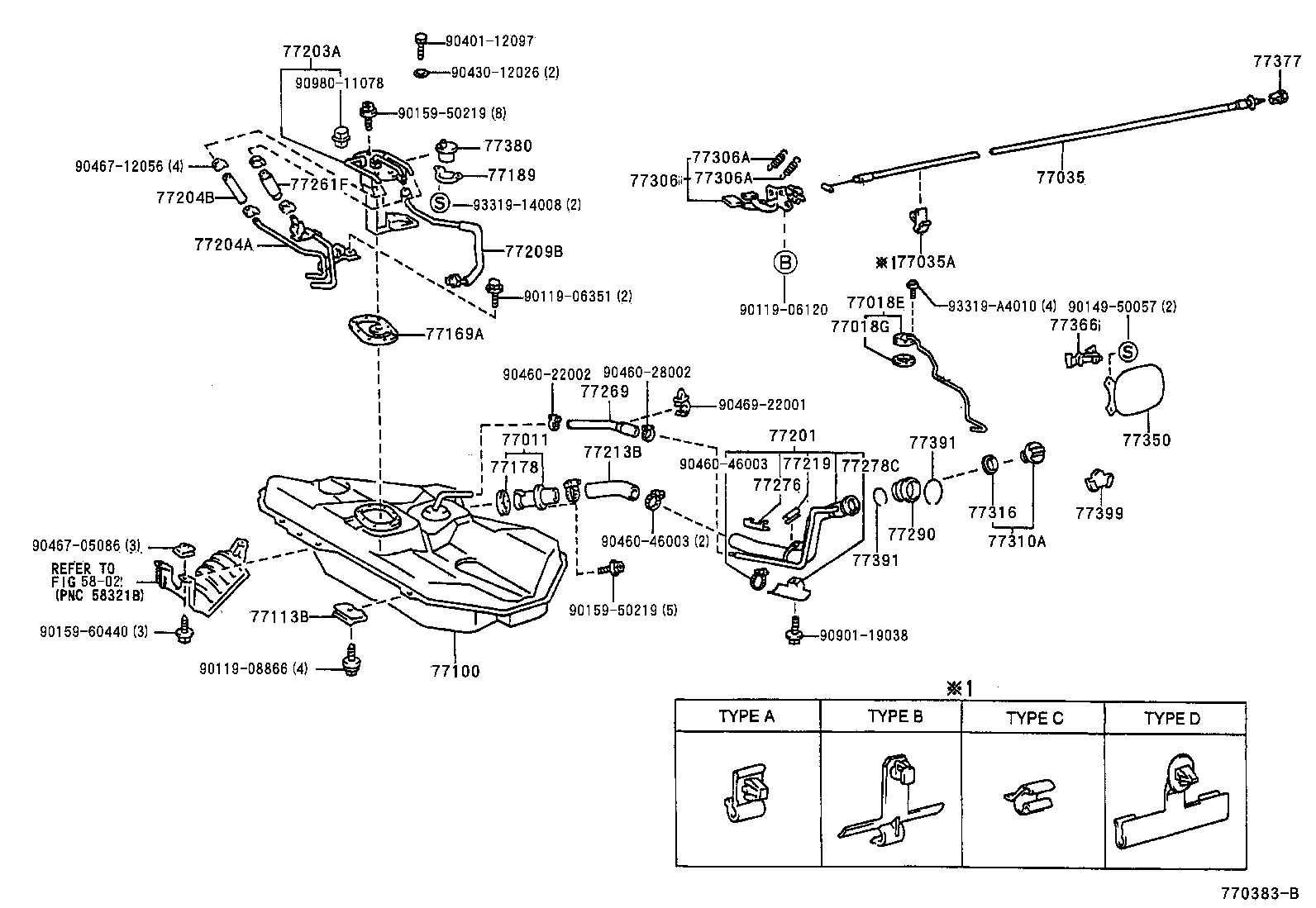

Fuel Tank & Tube
60 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77017 | Tube Sub-assy, Fuel And Evaporation Vent |
| 77018E | Tube Sub-assy, Fuel Tank Evaporation Vent |
| 77018G | Gasket, Fuel Tank Evap/Vent Tube |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77035A | Clamp (FOR FUEL LID LOCK CONTROL CABLE) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77113B | Plate, Fuel Tank Side |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77189 | Retainer, Fuel Check Valve |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77204A | Tube, Fuel Tank Return |
| 77204B | Hose, Fuel(FOR FUEL RETURN) |
| 77209B | Tube Sub-assy, Fuel Pump |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77251D | Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) |
| 77255D | Tube, Fuel Return |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77261F | Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE) |
| 77269 | Tube, Fuel Connecting |
| 77276 | Protector, Fuel Hose |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77278C | Protector, Fuel Tank Filler Pipe, NO.2 |
| 77284A | Protector, Fuel Tube, NO.3 |
| 77284B | Protector, Fuel Tube, NO.3 |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77289 | Holder, Fuel Tank Pipe Setting |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77306A | Spring, Fuel Lid Open Lever |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391 | Ring, Fuel Inlet Box |
| 77399 | Hanger, Fuel Tank Cap |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
| 77740 | Canister Assy, Charcoal |
| 77751 | Bracket, Charcoal Canister Base |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77763 | Case, Charcoal Canister Drain |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
