Toyota Starlet

1996-01 → 1999-07 · chassis EP9# · catalogue 121350 · General

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

18 part groups · 8 illustrations

Illustrations

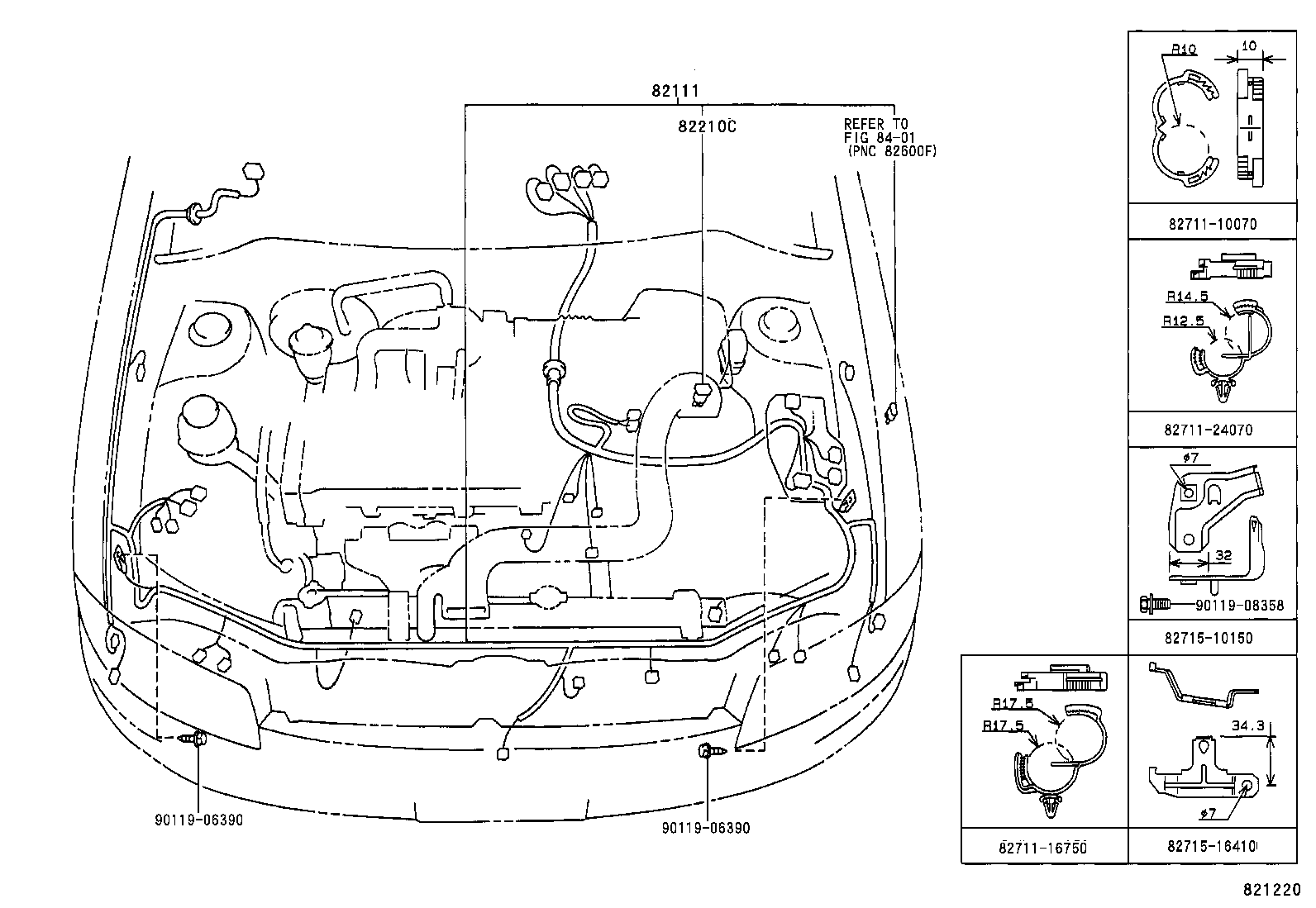

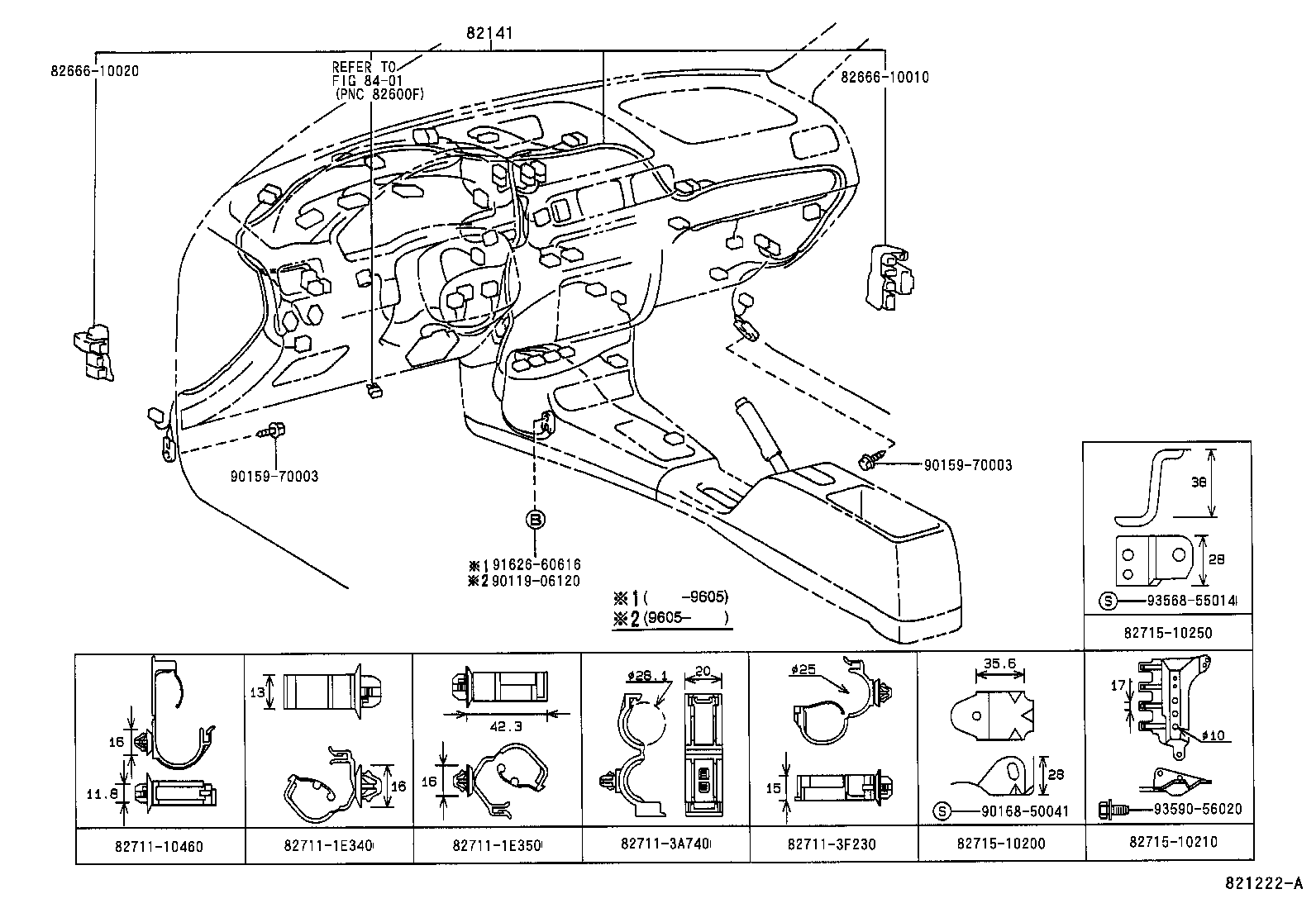

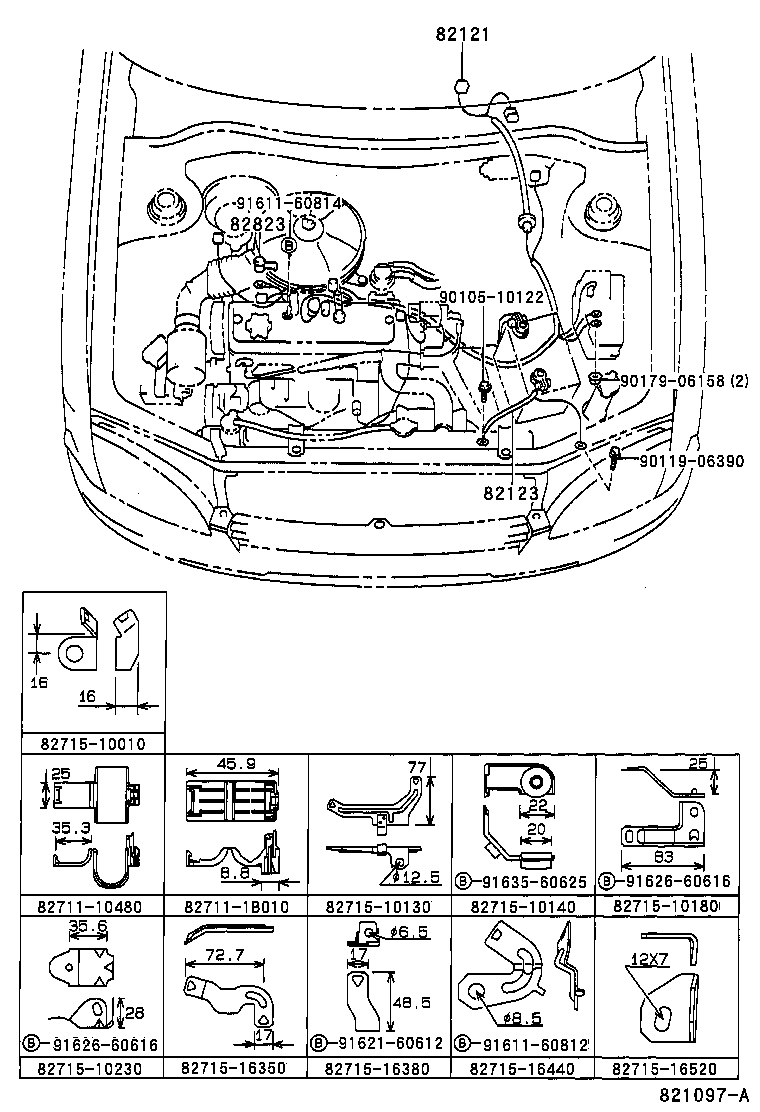

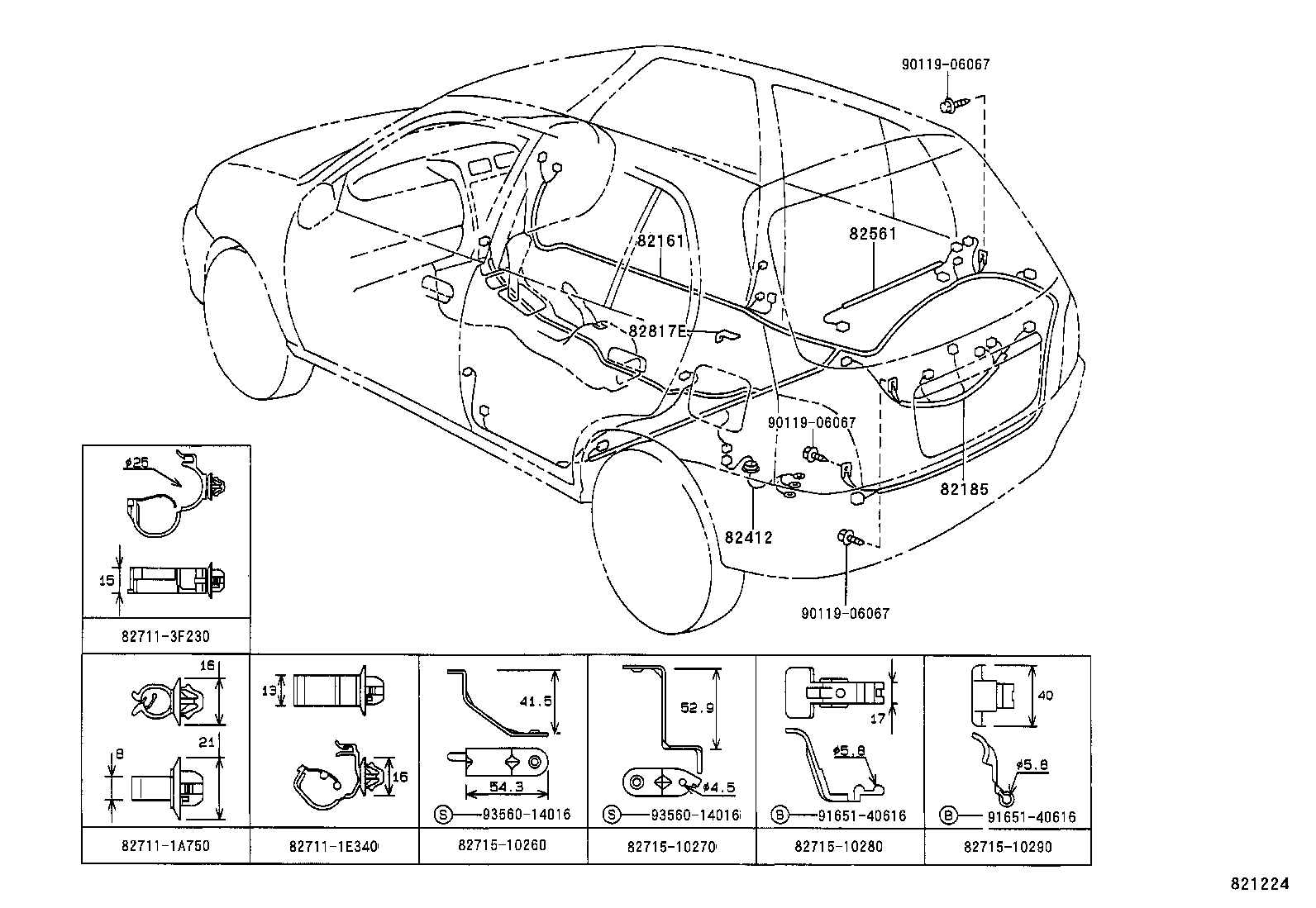

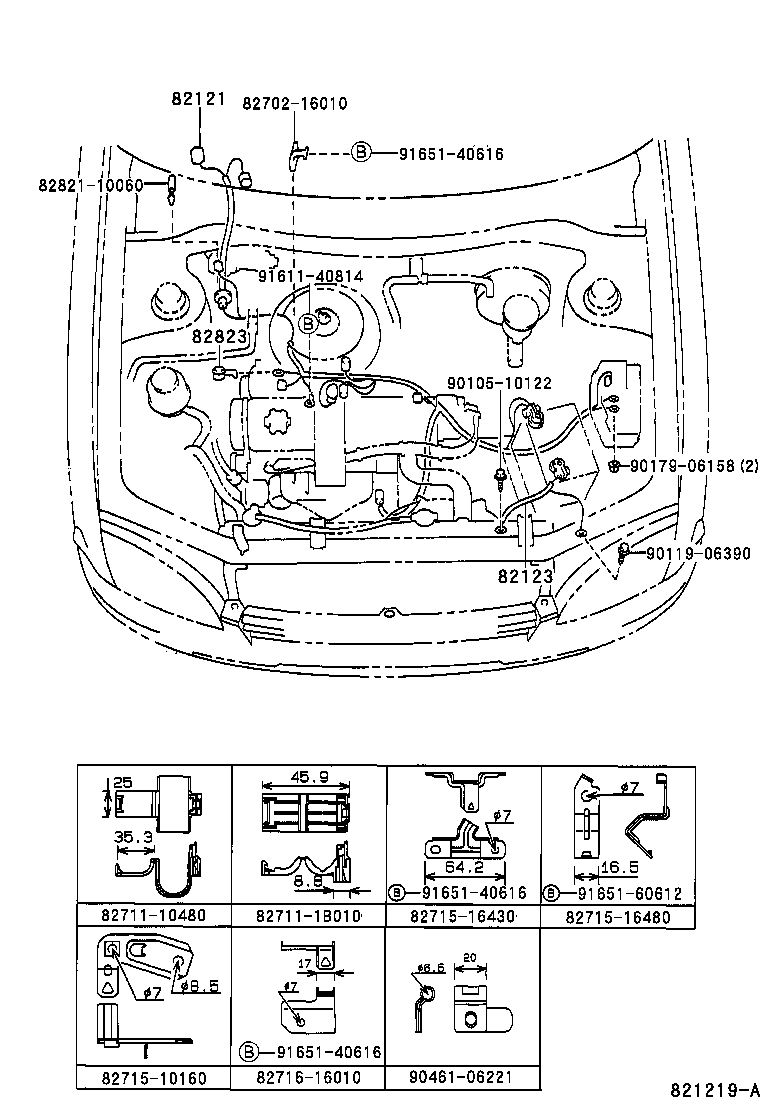

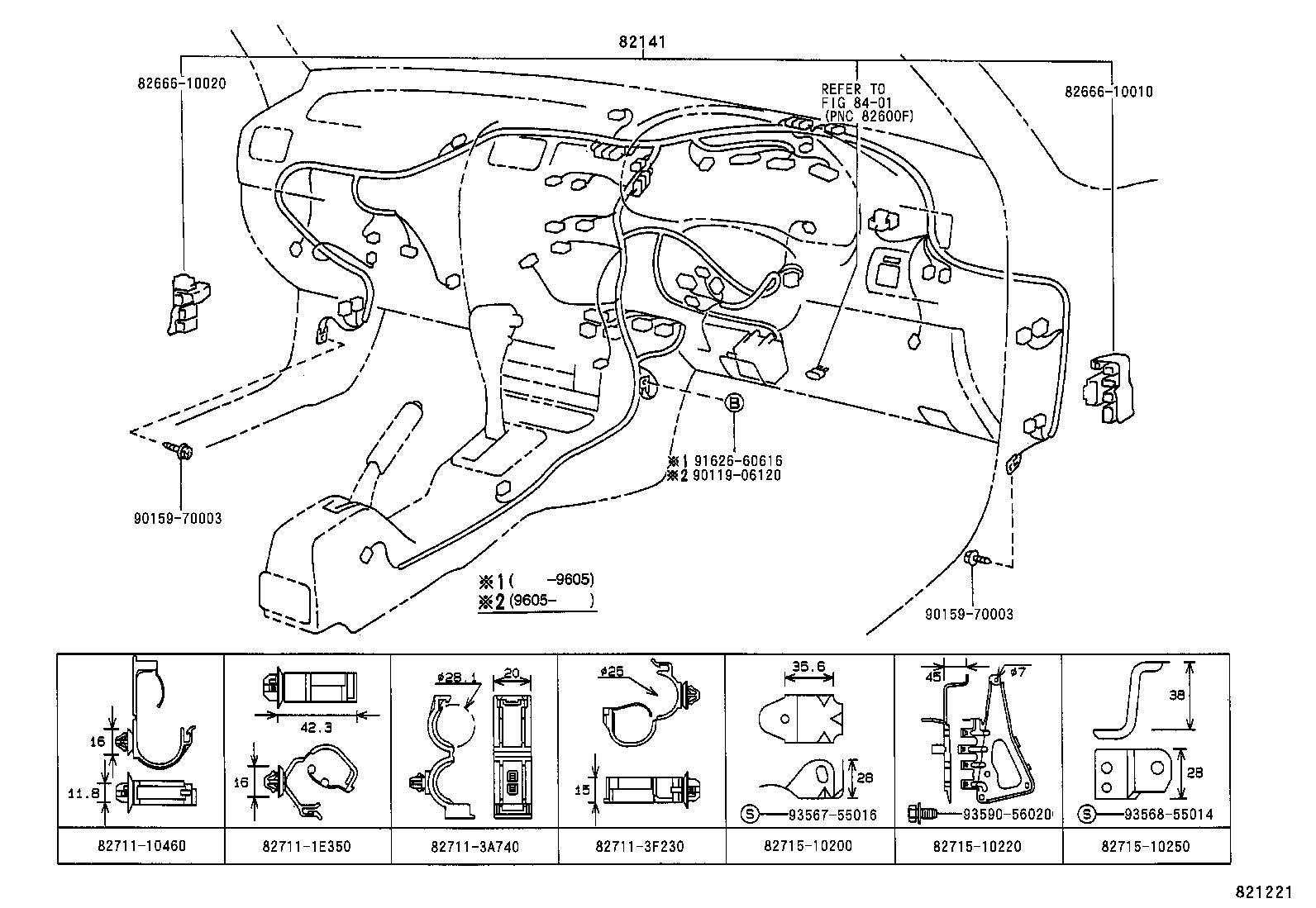

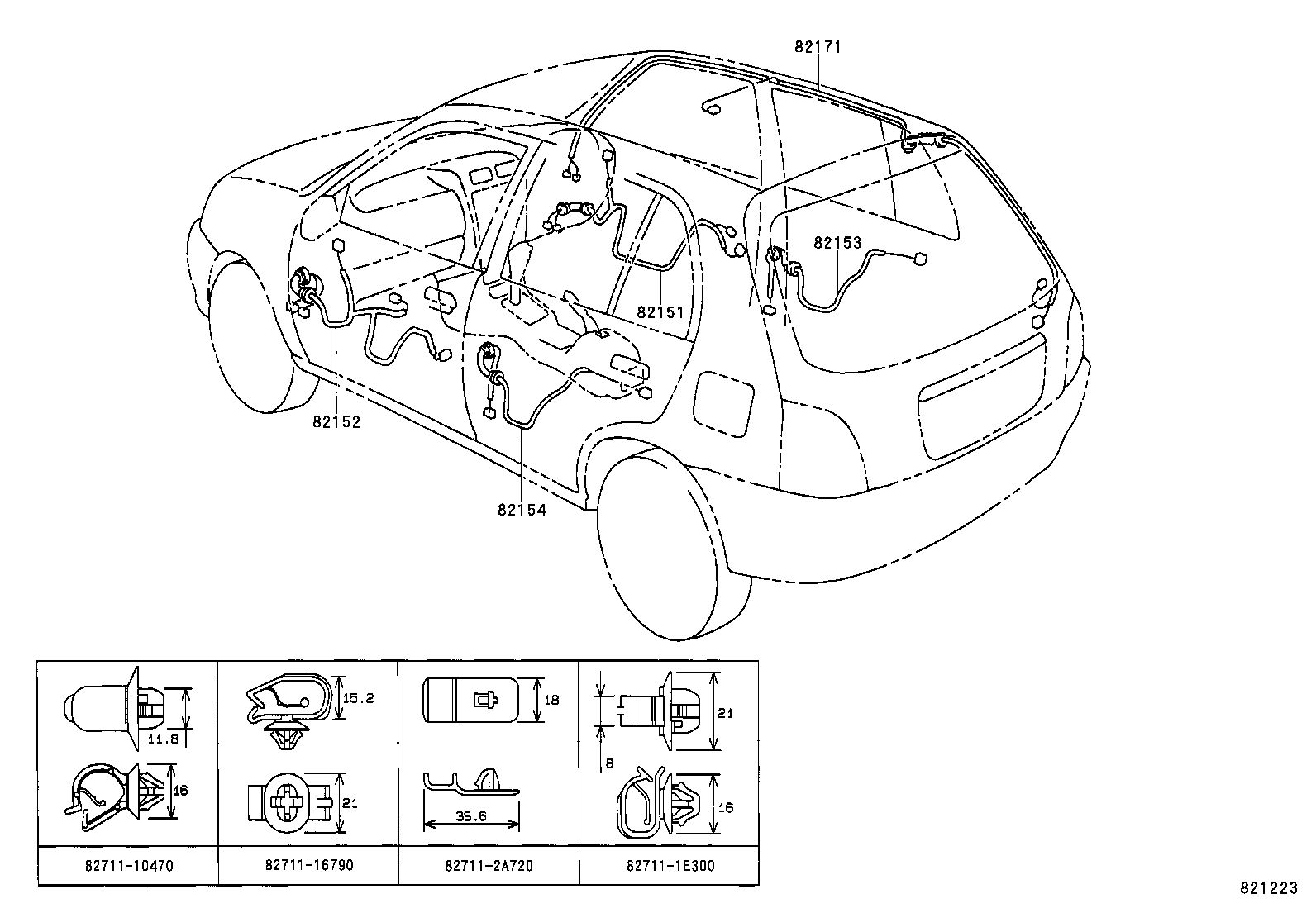

Figure NE1981A NE1981A 1996-01 → — Figure 821219A 821219A 1996-01 → — Figure 821097A 821097A 1996-01 → — Figure 821220 821220 1996-01 → — Figure 821221 821221 1996-01 → — Figure 821222A 821222A 1996-01 → — Figure 821223 821223 1996-01 → — Figure 821224 821224 1996-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82412 Wire, Fuel Gage
82561 Wire, Rear Speaker
82817E Protector, Wiring Harness, NO.6
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
