Factory parts data · Europe

Toyota Starlet

1996-01 → 1999-07 · chassis EP9# · catalogue 121350 · General

Discontinued model Data version 2000-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 3 illustrations

Illustrations

Figure 860488B

860488B 1996-01 → —

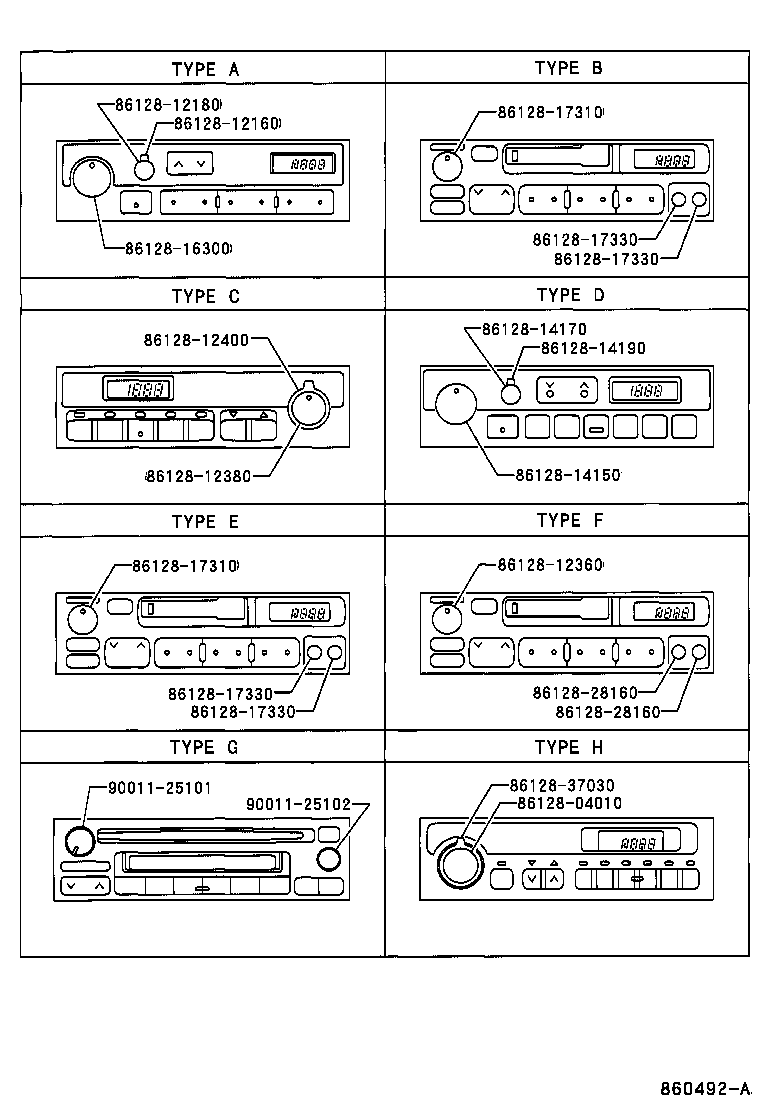

Figure 860492A

860492A 1996-01 → —

Figure 860610A

860610A 1997-12 → —

Part groups

PNC	Description
86011C	Filter, Noise
86011N	Filter, Noise
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2
86270A	Disc Player Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
