Toyota Spade
2015-07 → 2020-12 · chassis NSP141 · catalogue 123320 · General
Supported model
Data version 2021-11
Radiator & Water Outlet

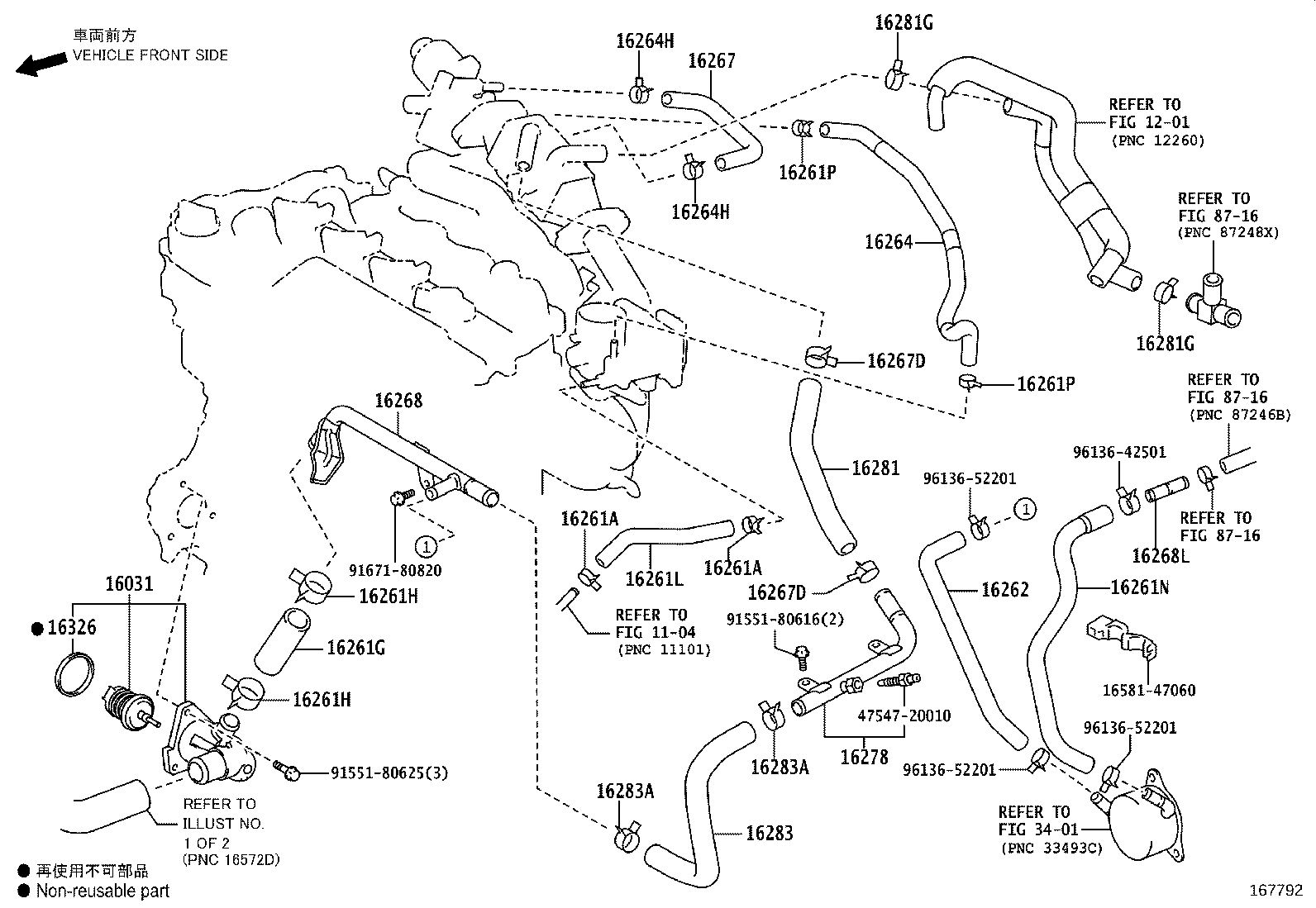

40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261L | Hose, Water By-pass |
| 16261N | Hose, Water By-pass, NO.2 |
| 16261P | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16262 | Hose, Water Inlet |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264H | Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267D | Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268L | Pipe, Water By-pass |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281G | Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16374 | Insulator, Cooling Fan Motor |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16431 | Inlet, Radiator Water |
| 16431A | Ring, O(FOR RADIATOR WATER INLET) |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16472 | Hose, Breather |
| 16523A | Cushion, Radiator Support |
| 16535 | Support, Radiator, Lower |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16711 | Shroud, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
