Toyota Spade
2015-07 → 2020-12 · chassis NSP141 · catalogue 123320 · General
Supported model
Data version 2021-11

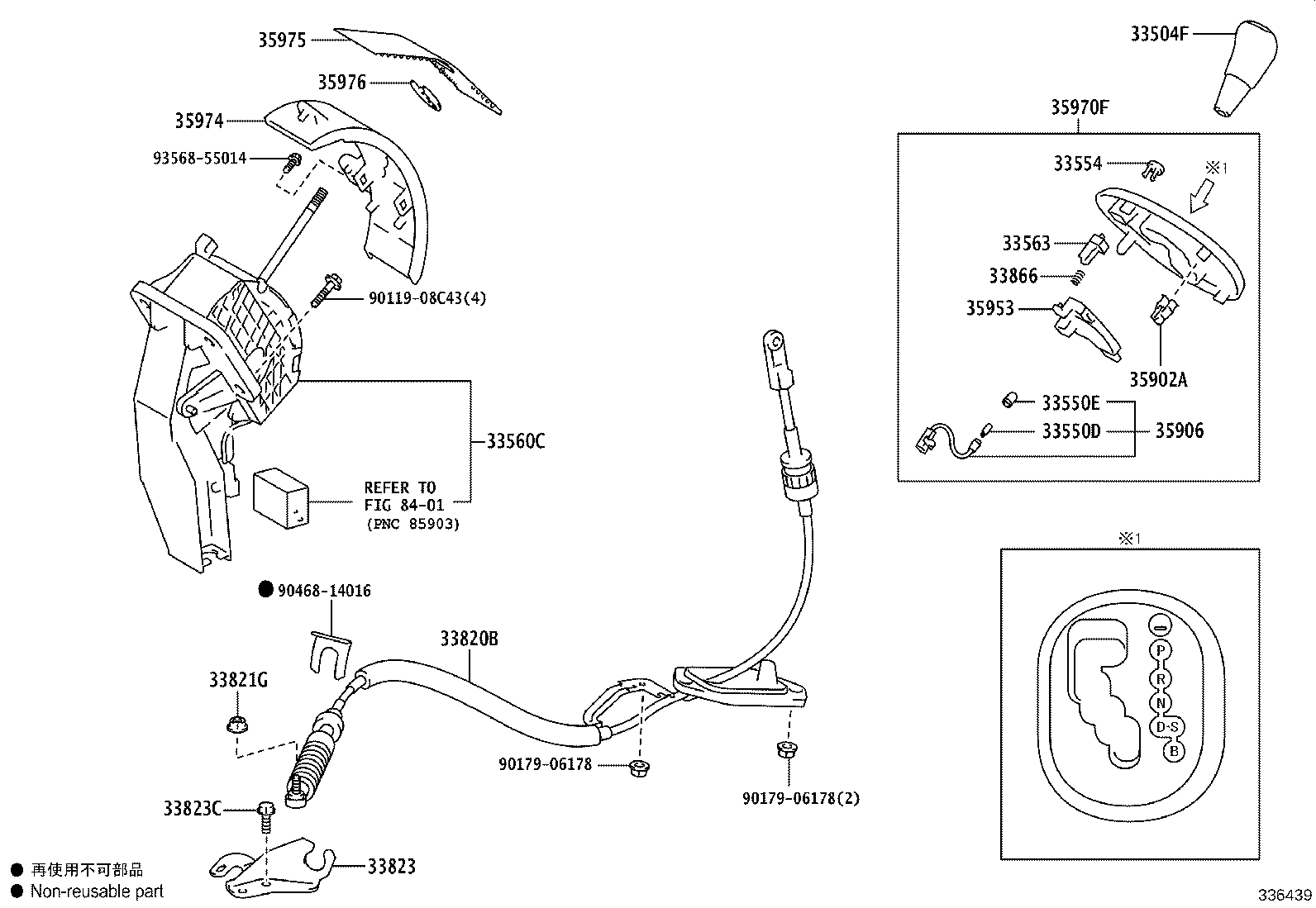

Shift Lever & Retainer
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33554 | Cap, Shift Lever |
| 33560C | Lever Assy, Shift, Lower |
| 33563 | Button, Shift Lock Release |
| 33820B | Cable Assy, Transmission Control |
| 33821G | Nut (FOR TRANSMISSION CONTROL CABLE) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33823C | Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) |
| 33866 | Spring, Shift Lock Release |
| 35902A | Clip, Cover Sub-assy, Position Indicator Housing |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35953 | Guide, Position Indicator Light |
| 35970F | Housing Assy, Position Indicator |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
