Toyota Spade
2015-07 → 2020-12 · chassis NSP141 · catalogue 123320 · General
Supported model
Data version 2021-11

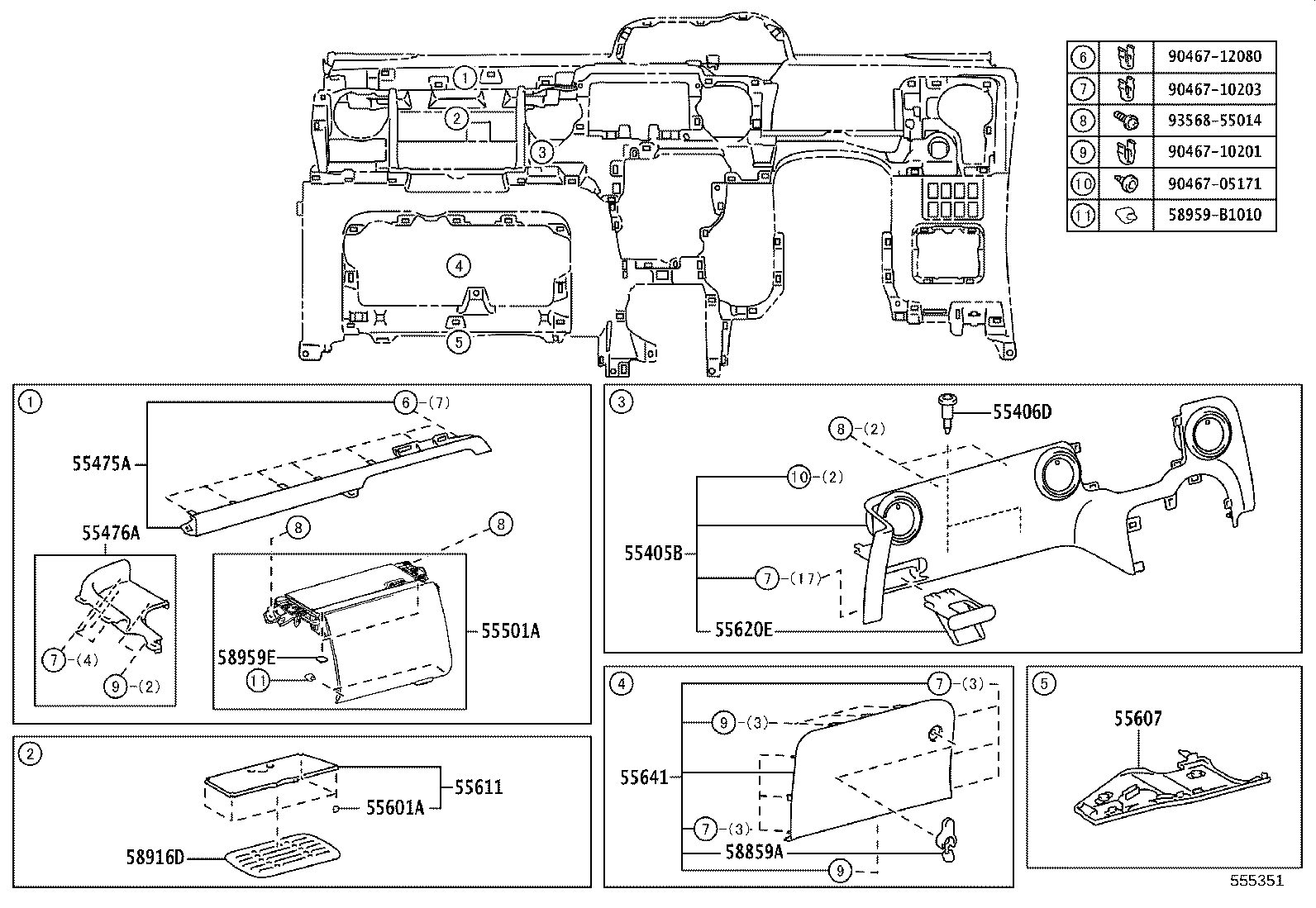

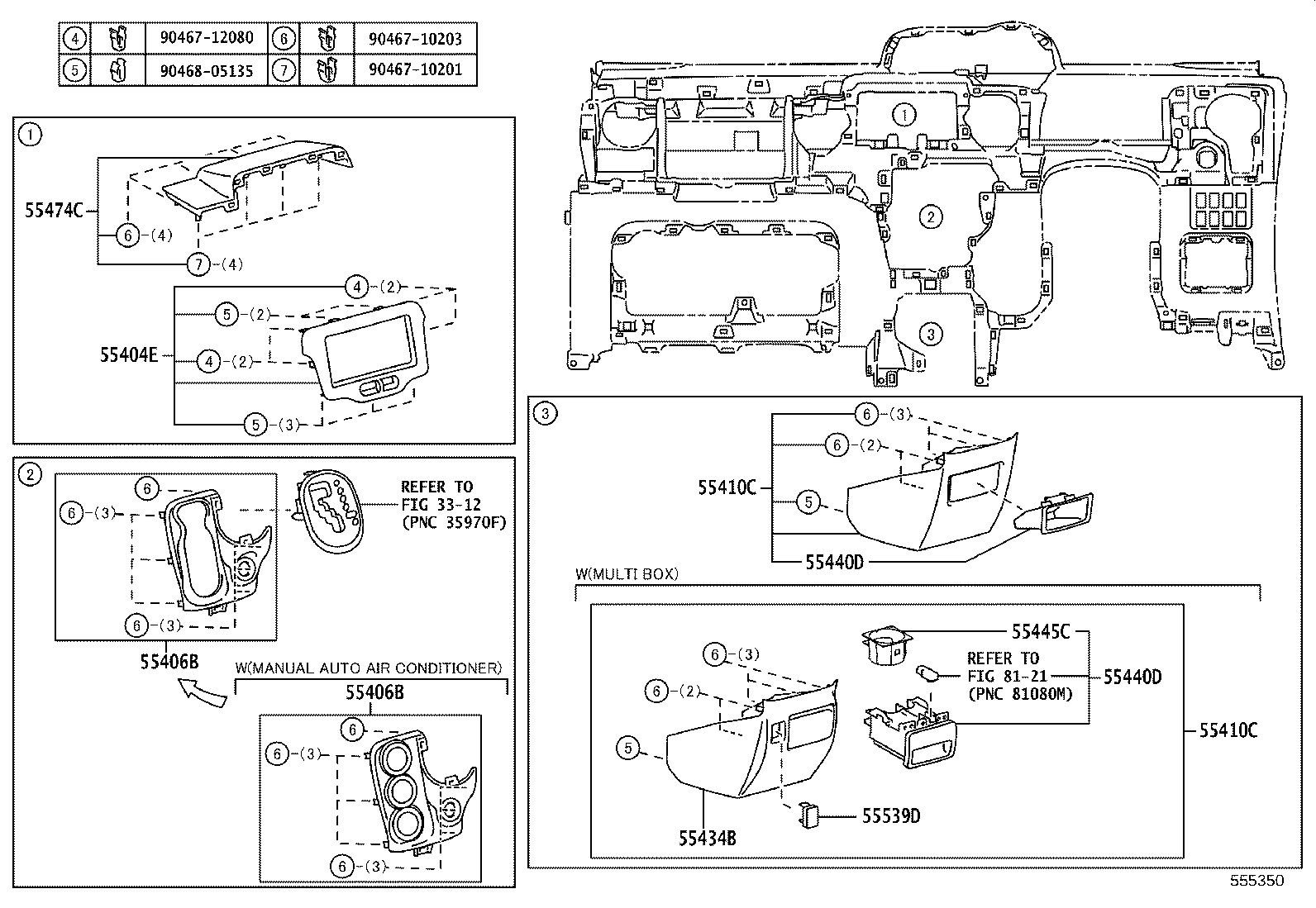

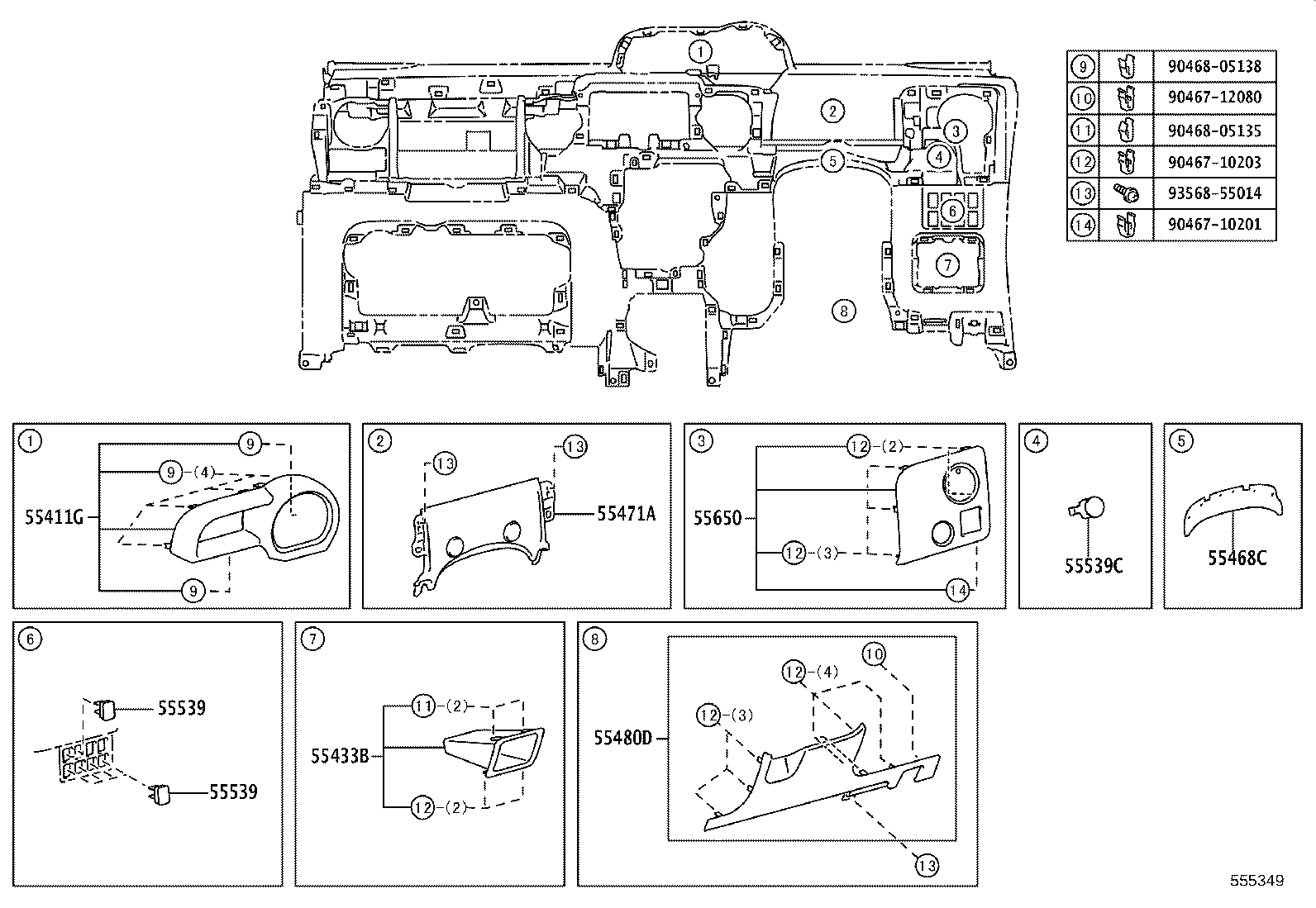

Instrument Panel & Glove Compartment
51 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55312A | Clip, Instrument Panel |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55349C | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55359D | Cushion, Instrument Panel, NO.5 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55377A | Bracket, Instrument Panel Mounting, NO.2 |
| 55404E | Panel Sub-assy, Instrument Cluster Finish, Upr |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55406D | Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH) |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55440D | Box Assy, Instrument Panel |
| 55445C | Plate, Instrument Panel Box |
| 55453D | Pad, Instrument Panel Safety, NO.1 |
| 55454B | Pad, Instrument Panel Safety, NO.2 |
| 55468C | Seal, Instrument Cluster Finish Panel, NO.1 |
| 55471A | Ornament, Instrument Cluster Finish Panel |
| 55474C | Garnish, Instrument Cluster Finish Panel, NO.1 |
| 55475A | Garnish, Instrument Cluster Finish Panel, NO.2 |
| 55476A | Garnish, Instrument Cluster Finish Panel, NO.3 |
| 55480D | Panel Assy, Instrument Panel Finish, Lwr |
| 55501A | Door Sub-assy, Glove Compartment |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55601A | Cushion(FOR UNDER TRAY) |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55611 | Tray, Instrument Panel Under |
| 55620E | Holder Assy, Instrument Panel Cup |
| 55641 | Cover, Instrument Panel Under, NO.1 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 58859A | Hook, Console Box Holder |
| 58916D | Mat, Box Bottom |
| 58959E | Cushion, Console Compartment Door |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
