Toyota Spade
2015-07 → 2020-12 · chassis NSP141 · catalogue 123320 · General
Supported model
Data version 2021-11

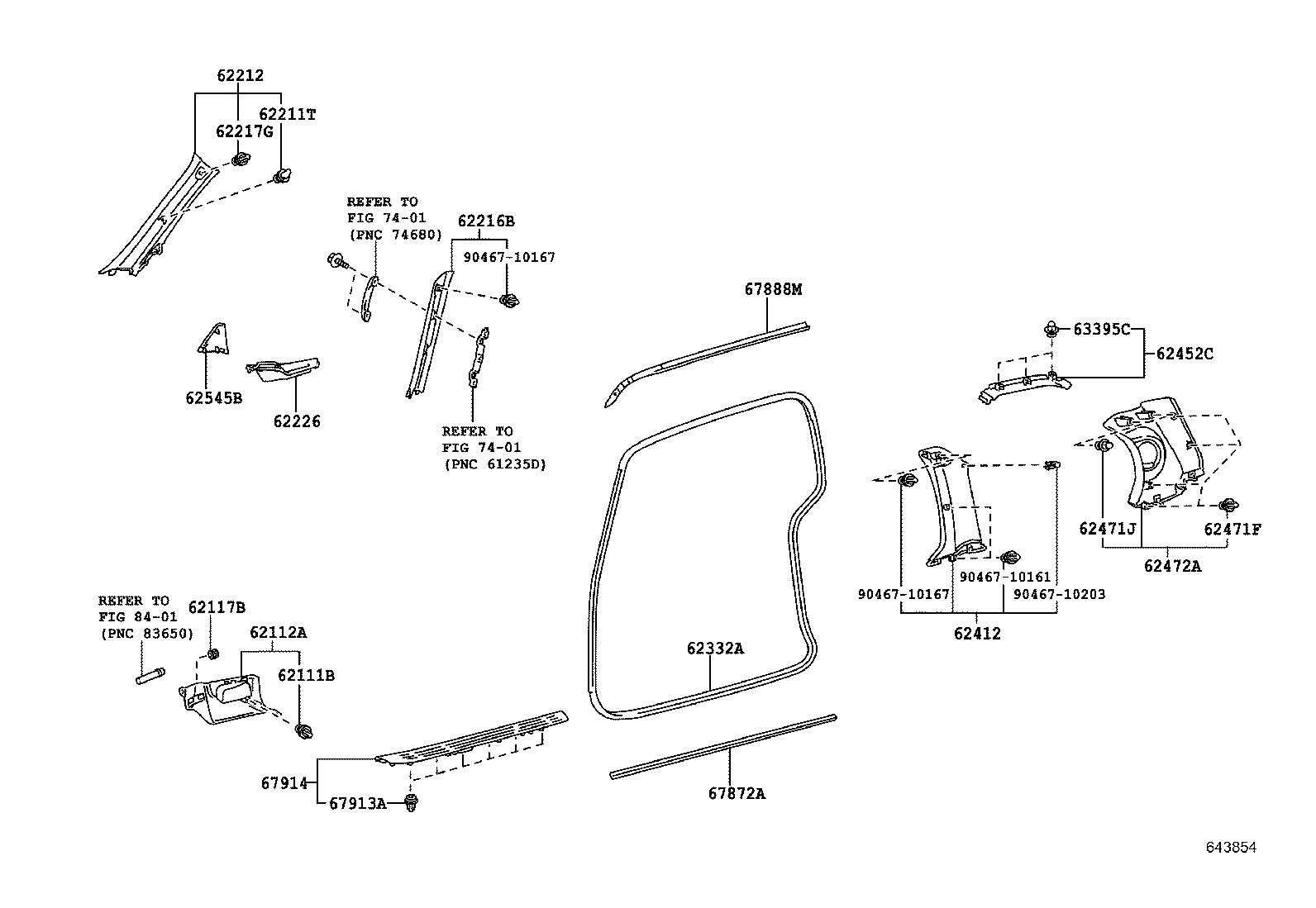

Inside Trim Board & Door Opening Trim Moulding
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62211 | Garnish, Front Pillar, RH |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62216B | Cover, Front Pillar Garnish, NO.1 LH |
| 62217G | Clip, Front Pillar Garnish |
| 62226 | Garnish, Front Pillar, Lower LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62452C | Garnish, Roof Side Rail, Rear LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471F | Clip (FOR ROOF SIDE, INNER UPPER GARNISH) |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62545B | Garnish, Pillar NO.1, LH |
| 63395C | Clip(FOR ROOF SIDE INNER GARNISH) |
| 67872A | Weatherstrip, Slide Door, NO.1 LH |
| 67888M | Weatherstrip, Slide Door, NO.2 LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67924A | Clamp, Door Scuff Plate, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
