Toyota Spade

2015-07 → 2020-12 · chassis NSP141 · catalogue 123320 · General

Supported model Data version 2021-11

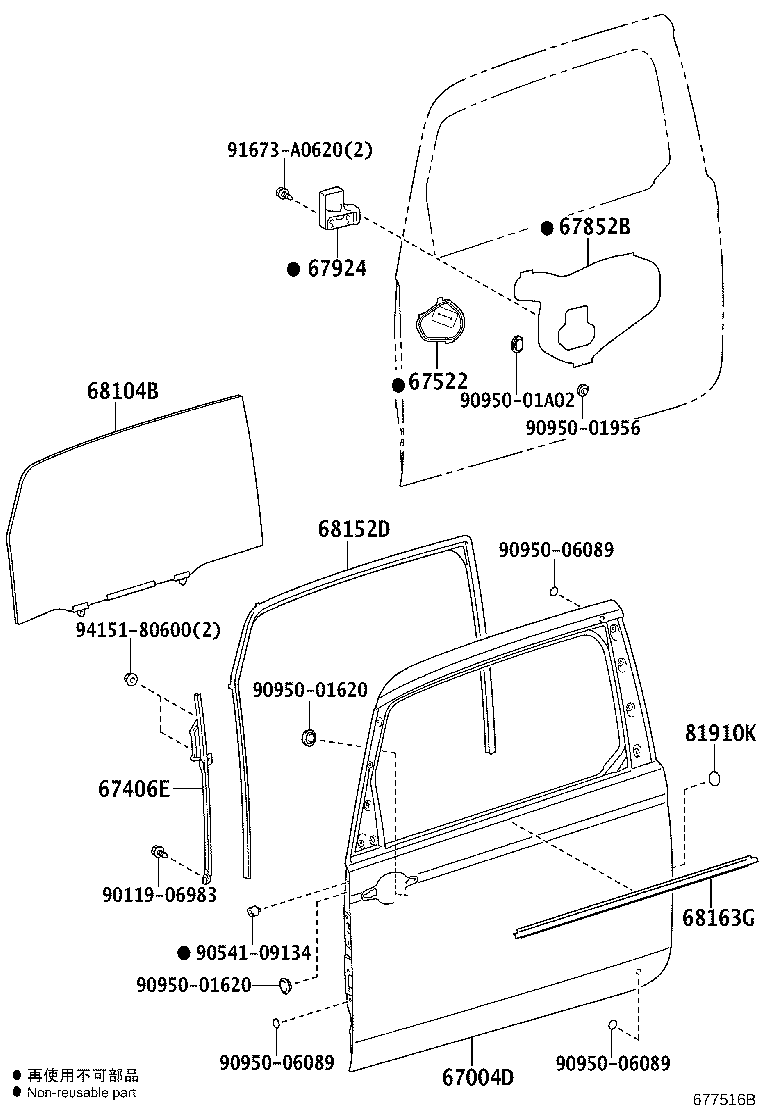

Front Door Panel & Glass

38 part groups · 4 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67001A	Cushion, Front Door Panel
67004D	Door Sub-assy, Slide, LH
67169	Lining, Door Outside Panel Reinforcement
67401F	Frame Sub-assy, Front Door, Front Lower RH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67406E	Guide Sub-assy, Slide Door Window, FR LH
67522	Cover Sub-assy, Slide Door Panel, LH
67601	Board Sub-assy, Front Door Trim, RH
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67625C	Bracket, Door Trim, NO.1
67663D	Garnish, Door Frame, RH
67664C	Garnish, Door Frame, LH
67668A	Garnish, Slide Door Window, LH
67831	Cover, Front Door Service Hole, RH
67852B	Cover, Slide Door Service Hole
67861	Weatherstrip, Front Door, RH
67867A	Clip, Door Weatherstrip(FOR FRONT DOOR)
67867C	Retainer, Front Door Weatherstrip, RH
67869B	Clip, Front Door Weatherstrip
67923	Cushion, Front Door Stiffener, NO.1
67924	Cushion, Front Door Stiffener, NO.2
68101	Glass Sub-assy, Front Door, RH
68104B	Glass Sub-assy, Slide Door, NO.1 LH
68125	Glass, Front Door Fix Window, RH
68141C	Run, Front Door Glass, RH
68152D	Run, Slide Door Glass, NO.1 LH
68160C	Weatherstrip Assy, Front Door Glass, Outer RH
68163G	Weatherstrip, Slide Door Glass, LH
68171B	Weatherstrip, Front Door Glass, Inner RH
68172A	Weatherstrip, Front Door Glass, Inner LH
68215	Weatherstrip, Front Door Fix Window, RH
68610B	Check Assy, Front Door, RH
75921C	Tape, Black Out, NO.1 RH
75925	Tape, Black Out, NO.3 RH
81910K	Reflector Assy, Reflex
87963	Cover, Outer Mirror Install Hole, RH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
