Toyota Spade
2015-07 → 2020-12 · chassis NSP141 · catalogue 123320 · General
Supported model
Data version 2021-11

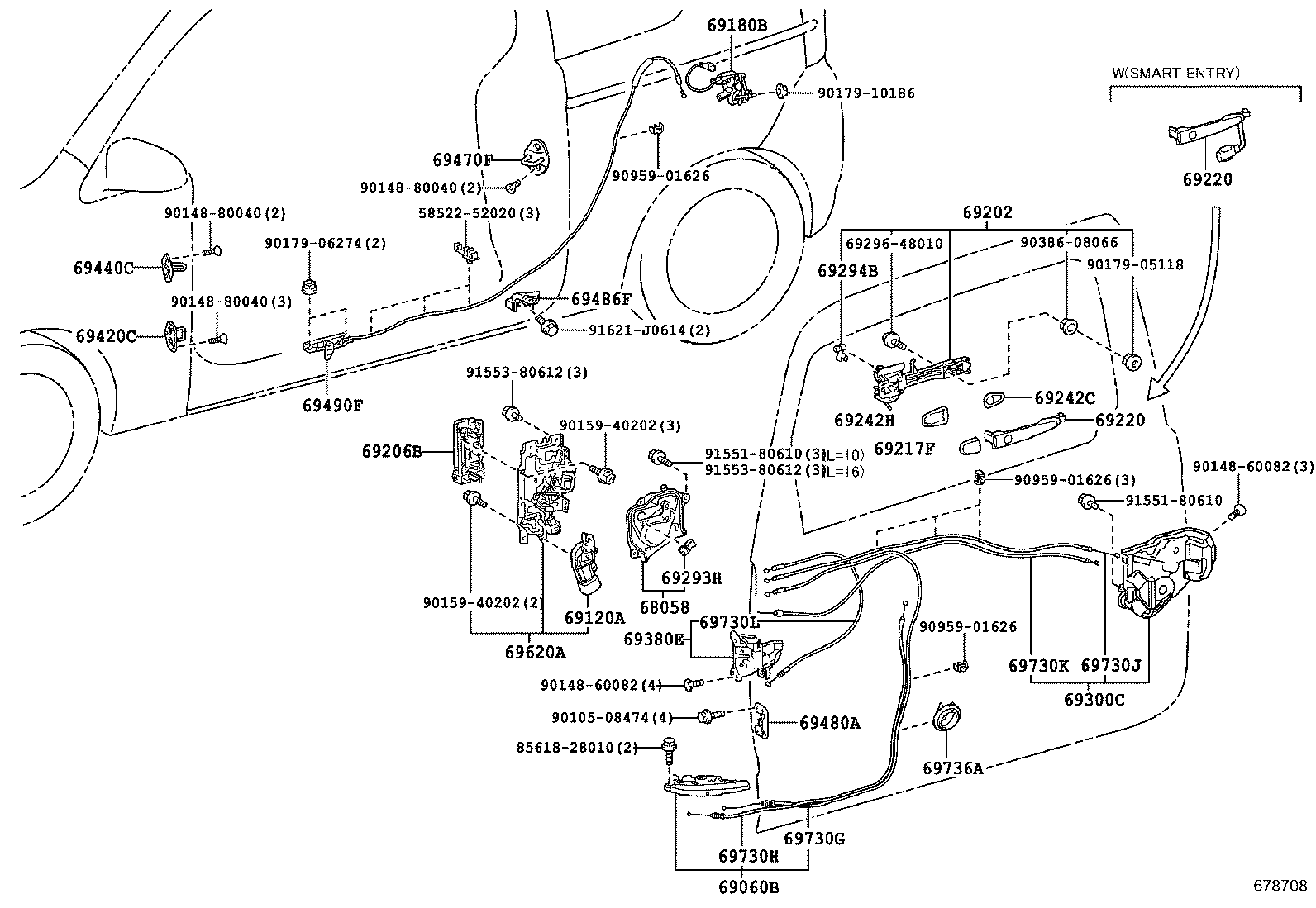

Front Door Lock & Handle
42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 68058 | Guide Sub-assy, FR Side Door |
| 69030A | Lock Assy, Front Door W/Motor, RH |
| 69060B | Lock Assy, Slide Door Full Open Stop, NO.1 LH |
| 69120A | Actuator Assy, Front Door Lock, LH |
| 69180B | Control Assy, Slide Door Half Open Stoper |
| 69201A | Frame Sub-assy, Front Door Outside Handle, RH |
| 69202 | Handle Sub-assy, Door Outside, LH |
| 69205 | Handle Sub-assy, Front Door Inside, RH |
| 69205B | Cushion(FOR FRONT DOOR INSIDE HANDLE) |
| 69206B | Handle Sub-assy, Front Door Inside, LH |
| 69210 | Handle Assy, Front Door, Outside RH |
| 69217E | Cover, Front Door Outside Handle, RH |
| 69217F | Cover, Front Door Outside Handle, LH |
| 69220 | Handle Assy, Front Door Outside, LH |
| 69241D | Pad, Front Door Outside Handle, RH |
| 69242C | Pad, Front Door Outside Handle, LH |
| 69242E | Pad, Front Door Outside Handle, Rear |
| 69242H | Pad, Front Door Outside Handle, Rear |
| 69283 | Plug, Front Door Inside Handle Bezel, RH |
| 69293G | Snap, Front Door Outside Handle, RH |
| 69293H | Snap, Front Door Outside Handle, LH |
| 69294B | Snap, Front Door Outside Handle, LH |
| 69300C | Lock Assy, Power Slide Door, NO.1 LH |
| 69311A | Rod, Front Door Lock Open, RH |
| 69318C | Seal, Door Lock Wiring Harness |
| 69380E | Lock Assy, Slide Door, Front LH |
| 69410 | Plate Assy, Front Door Lock Striker |
| 69420C | Plate Assy, Door Lock Striker |
| 69440C | Plate Assy, Slide Door Front Lock Striker |
| 69470F | Plate Assy, Slide Door Rear Lock Striker |
| 69480A | Hook Assy, Slide Door Front Lock |
| 69486F | Striker, Slide Door Open, LH |
| 69490F | Stoper Assy, Slide Door Half Open |
| 69620A | Control Assy, Front Door Lock Remote, LH |
| 69710B | Cable Assy, Front Door Lock Remote Control, RH |
| 69730G | Cable Assy, Side Door Lock Remote Control, NO.1 |
| 69730H | Cable Assy, Side Door Lock Remote Control, NO.2 |
| 69730J | Cable Assy, Side Door Lock Remote Control, NO.3 |
| 69730K | Cable Assy, Side Door Lock Remote Control, NO.4 |
| 69730L | Cable Assy, Side Door Lock Remote Control, NO.5 |
| 69736A | Guide, Front Door Lock Link |
| 69750C | Cable Assy, Front Door Inside Locking, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
