Toyota Spade

2015-07 → 2020-12 · chassis NSP141 · catalogue 123320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

9 part groups · 2 illustrations

Illustrations

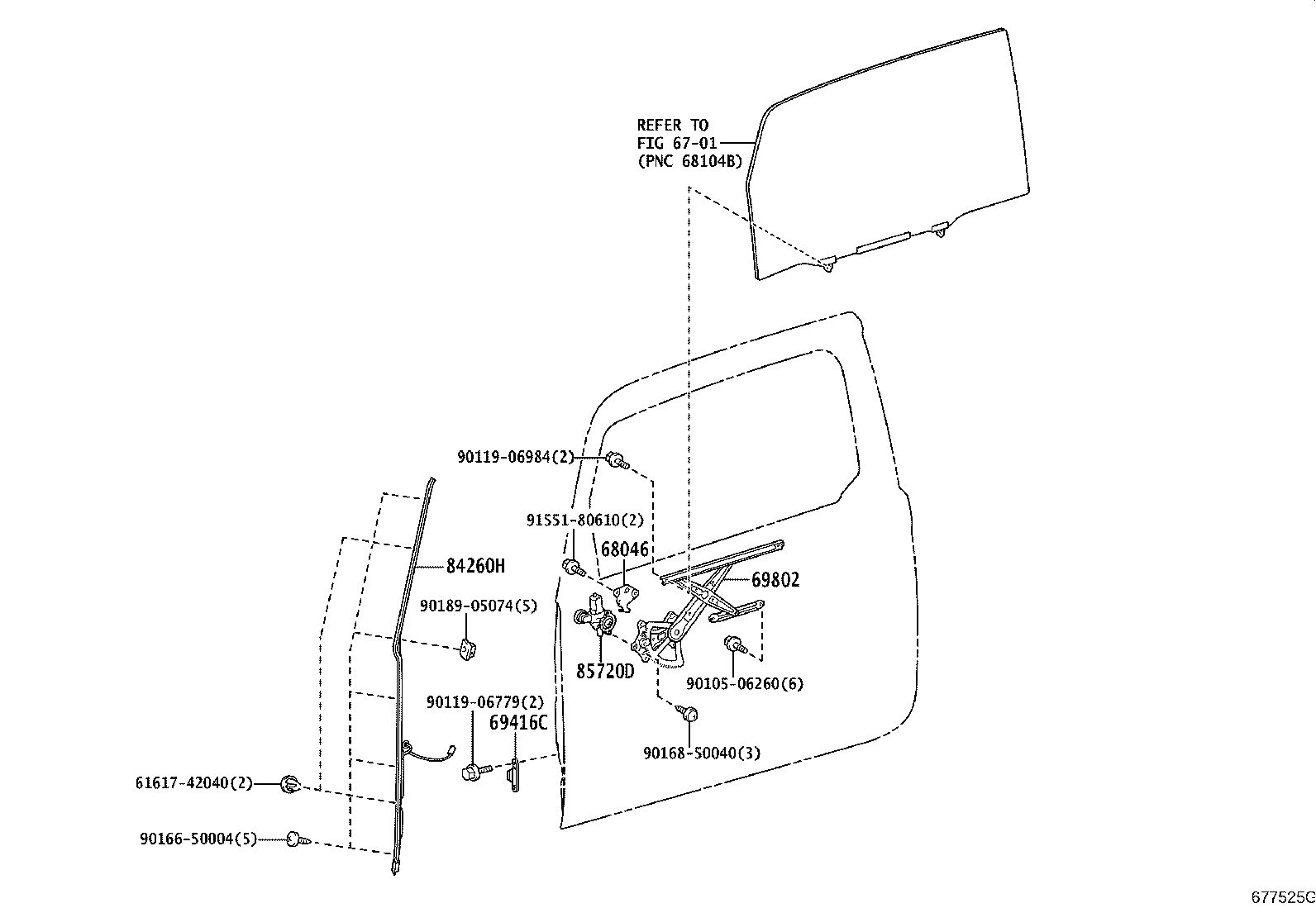

Figure 677524B 677524B 2015-07 → — Figure 677525G 677525G 2015-07 → —

Part groups

PNCDescription
68046 Lever Sub-assy, FR Side Door Rail Stop
68710 Hinge Assy, Front Door, Upper RH
68730 Hinge Assy, Front Door, Lower RH
69416C Stopper, Slide Door Down Male, NO.1
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
84260H Sensor Assy, Power Slide Door, LH
85710E Motor Assy, Power Window Regulator, RH
85720D Motor Assy, Power Window Regulator, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
