Toyota Spade

2015-07 → 2020-12 · chassis NSP141 · catalogue 123320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

21 part groups · 2 illustrations

Illustrations

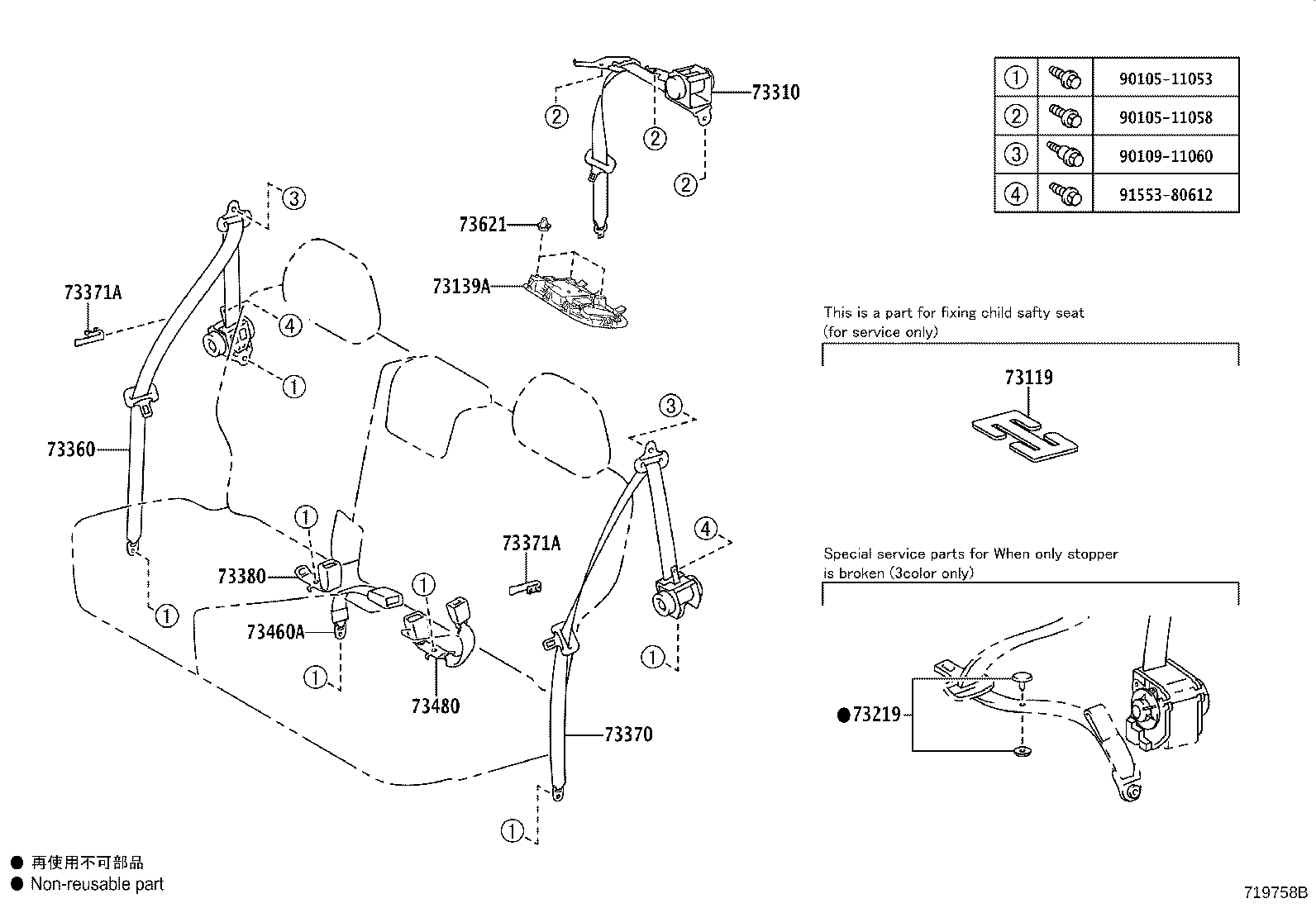

Figure 717989E 717989E 2015-07 → — Figure 719758B 719758B 2015-07 → —

Part groups

PNCDescription
73119 Plate, Seat Belt Webbing Clip
73139A Cover, Seat Belt Anchor
73174 Cover, Front Seat Belt Hole, LH
73187 Guide, Front Seat Shoulder Belt
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73310 Belt Assy, Rear Seat 3 Point Type, RH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73375 Cover, Rear Seat Shoulder Belt, LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73381 Holder, Rear Seat Belt
73381A Holder, Rear Seat Belt NO.2
73460A Belt Assy, Rear Seat Center, Inner
73480 Belt Assy, Rear Seat Inner W/Center, LH
73621 Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
