Toyota Spade
2015-07 → 2020-12 · chassis NSP141 · catalogue 123320 · General
Supported model
Data version 2021-11

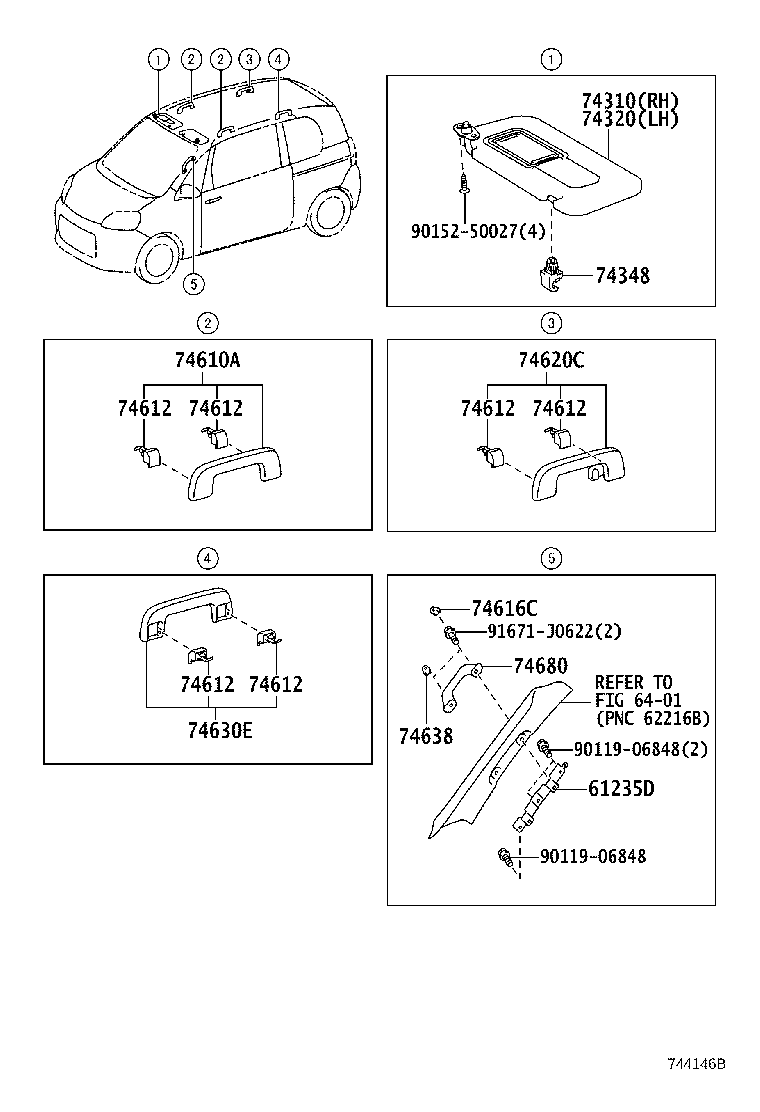

Armrest & Visor
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61235D | Bracket, Assist Grip |
| 74221 | Cover, Door Armrest, RH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74616C | Plug, Front Assist Grip, NO.1 LH |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
| 74638 | Plug, Assist Grip, NO.2 LH |
| 74680 | Grip Assy, Pillar Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
