Toyota Spade
2015-07 → 2020-12 · chassis NSP141 · catalogue 123320 · General
Supported model
Data version 2021-11

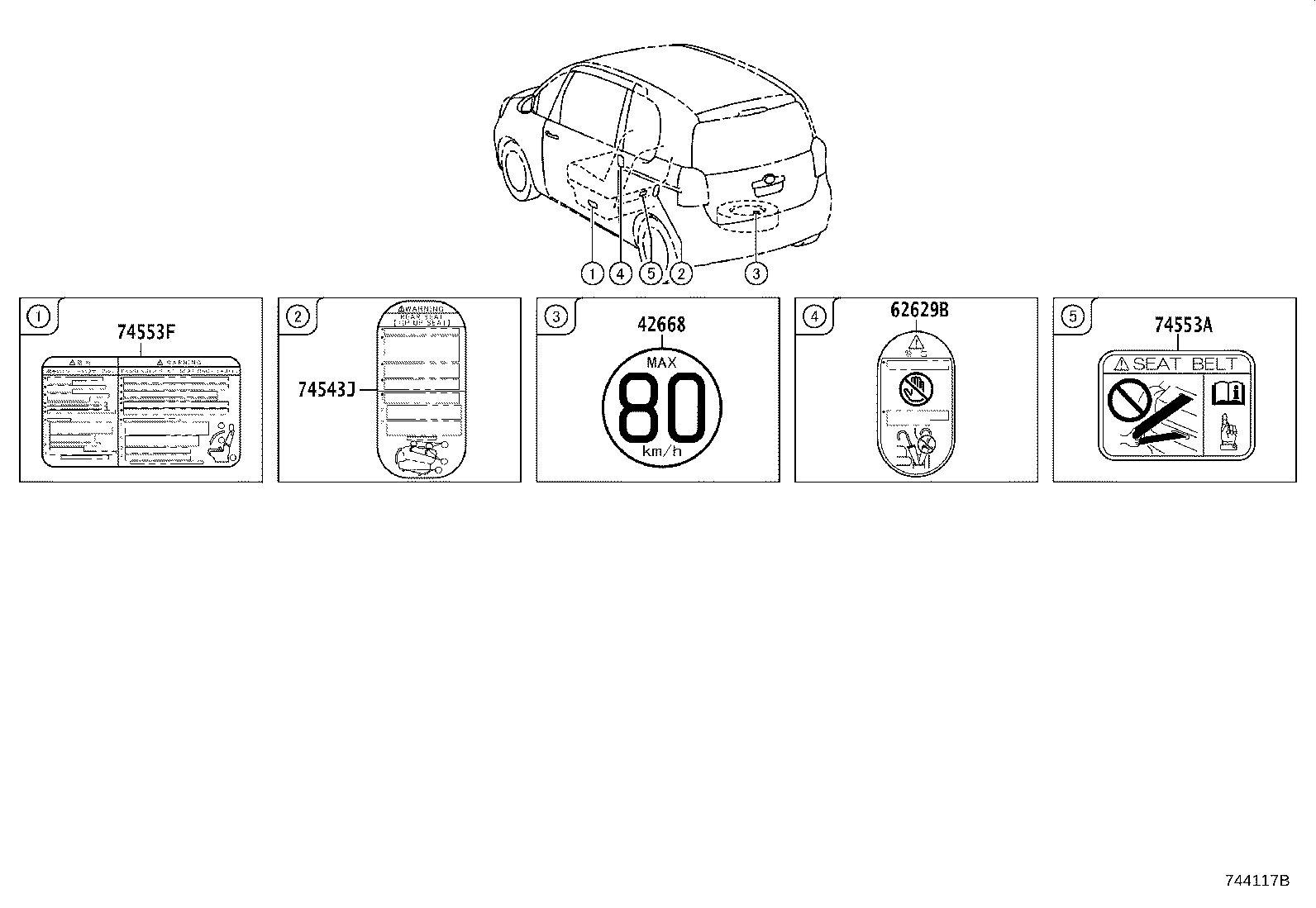

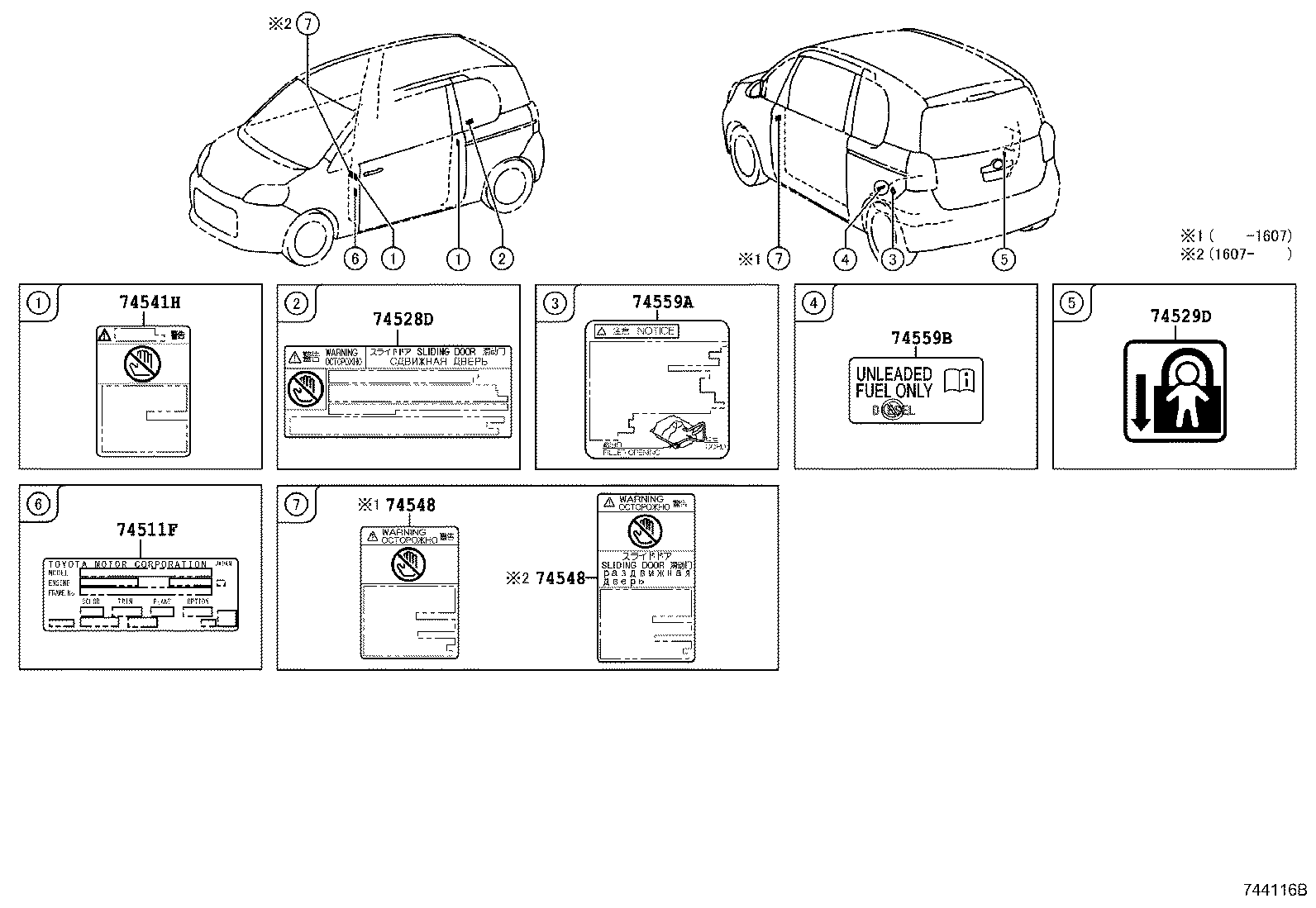

Caution Plate (EXTERIOR & INTERIOR)
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11291B | Plate, Engine Name |
| 16793B | Label, Cooling Fan Information |
| 42668 | Label, Compact Spare Tire Caution |
| 62629B | Label,Quarter Trim |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74528D | Label, Power Slide Door Notice |
| 74529D | Plate, Child Protector Lock Caution |
| 74541H | Plate, Body Caution |
| 74543J | Label, Rear Seat Caution |
| 74548 | Plate, Body Caution |
| 74553A | Plate, Front Seat Caution |
| 74553F | Label, Front Seat Caution |
| 74559A | Plate, Fuel Caution |
| 74559B | Label, Fuel Information |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
