Toyota Spade
2015-07 → 2020-12 · chassis NSP141 · catalogue 123320 · General
Supported model
Data version 2021-11
Switch & Relay & Computer
70 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300E | Relay Assy, Starter, NO.1 |
| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 81980 | Flasher Assy, Turn Signal |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82620A | Block Assy, Fusible Link |
| 82621A | Cover, Fusible Link |
| 82630 | Holder Assy, Fuse |
| 82630C | Holder Assy, Fuse |
| 82630D | Holder, Fuse |
| 82630F | Holder, Fuse |
| 82641 | Relay, Integration NO.1 |

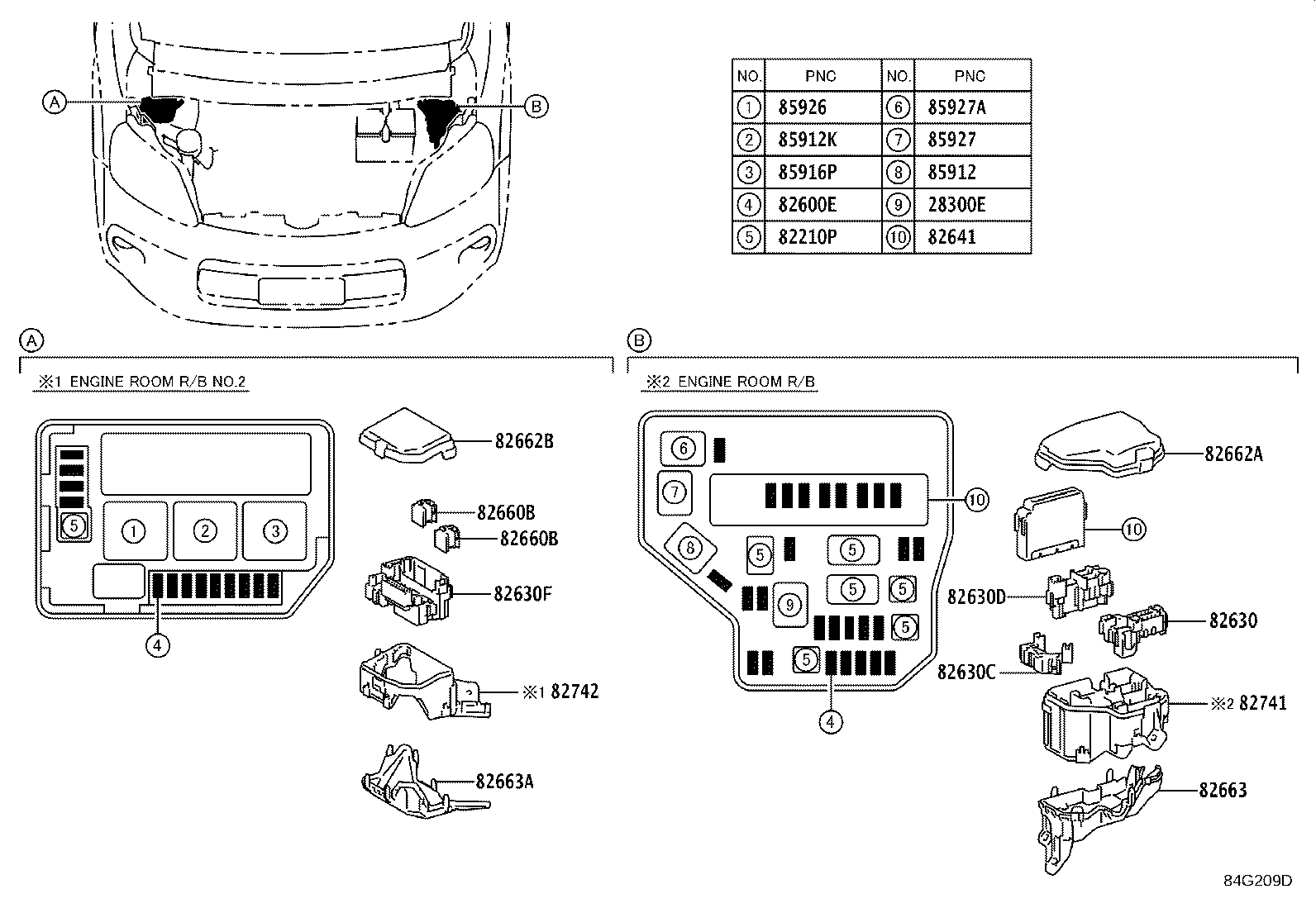

| 82660B | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82672A | Cover, Junction Block |

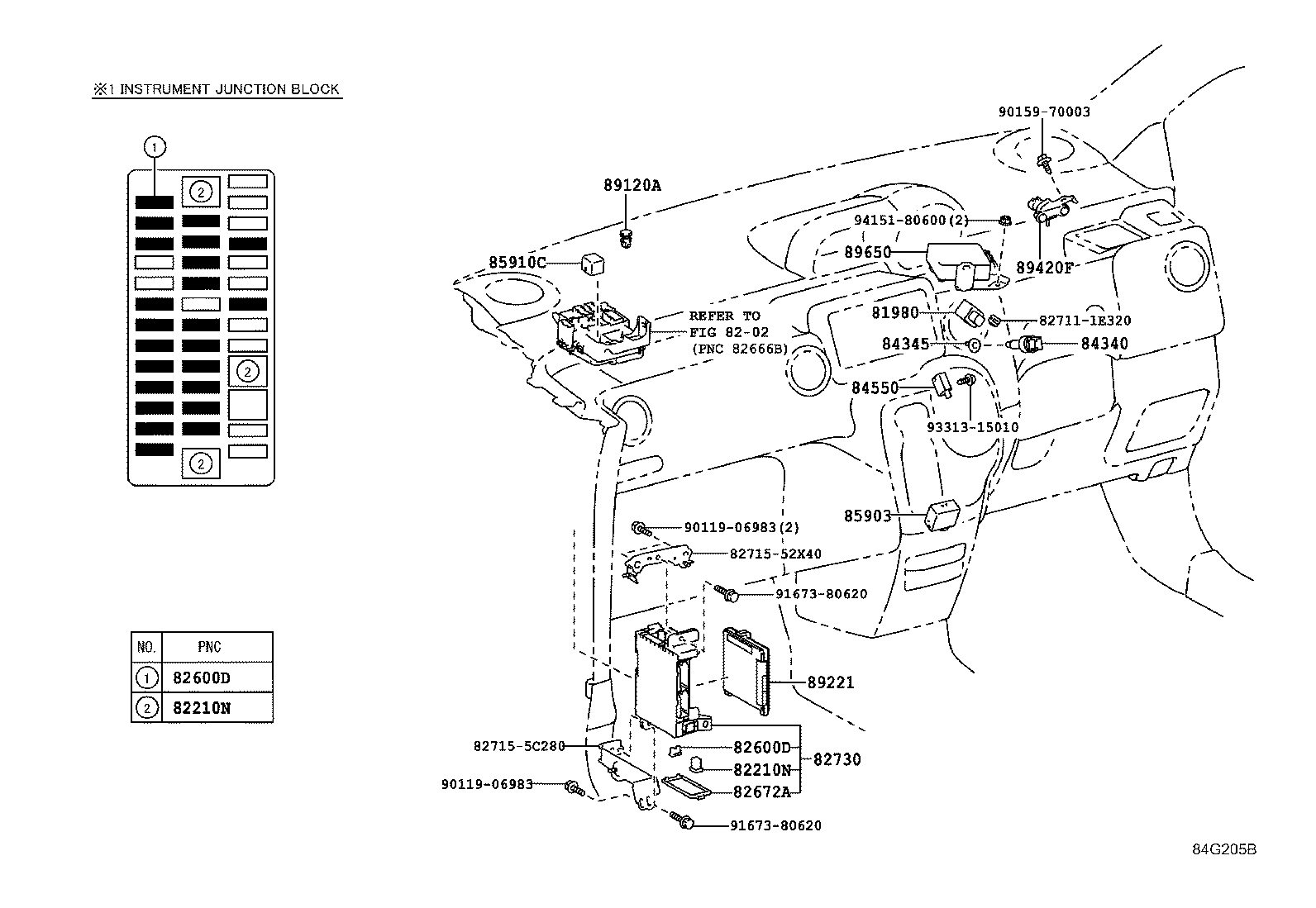

| 82730 | Block Assy, Instrument Panel Junction |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |

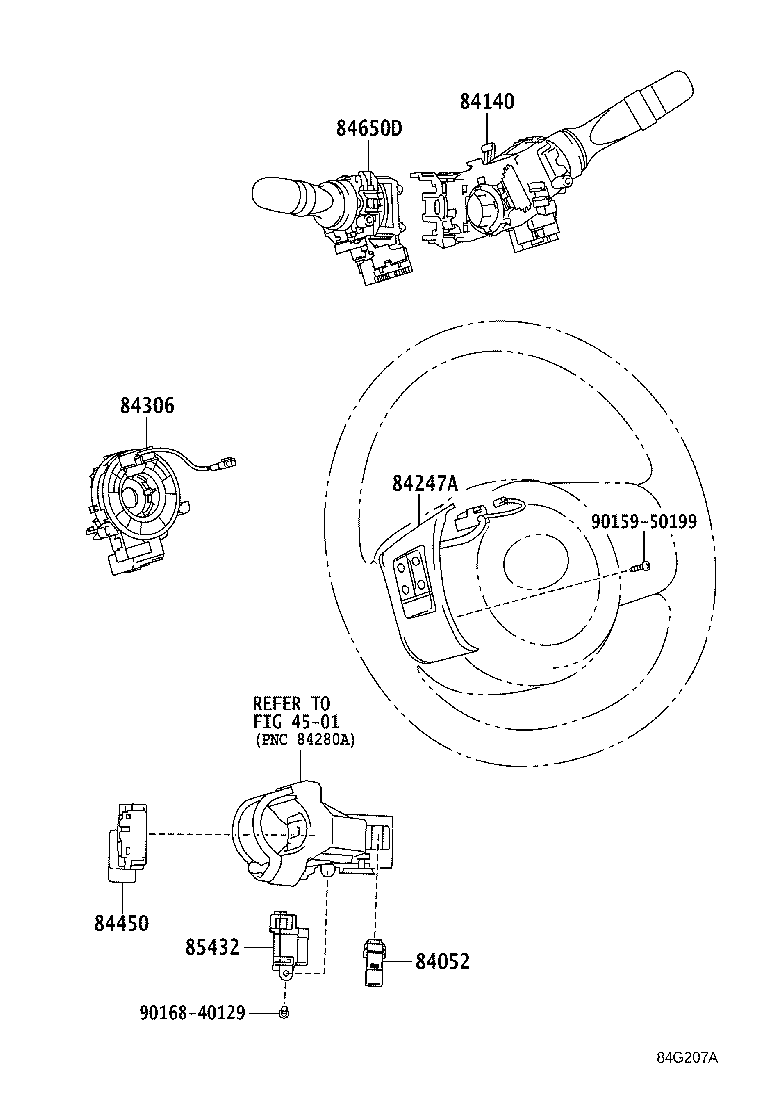

| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |

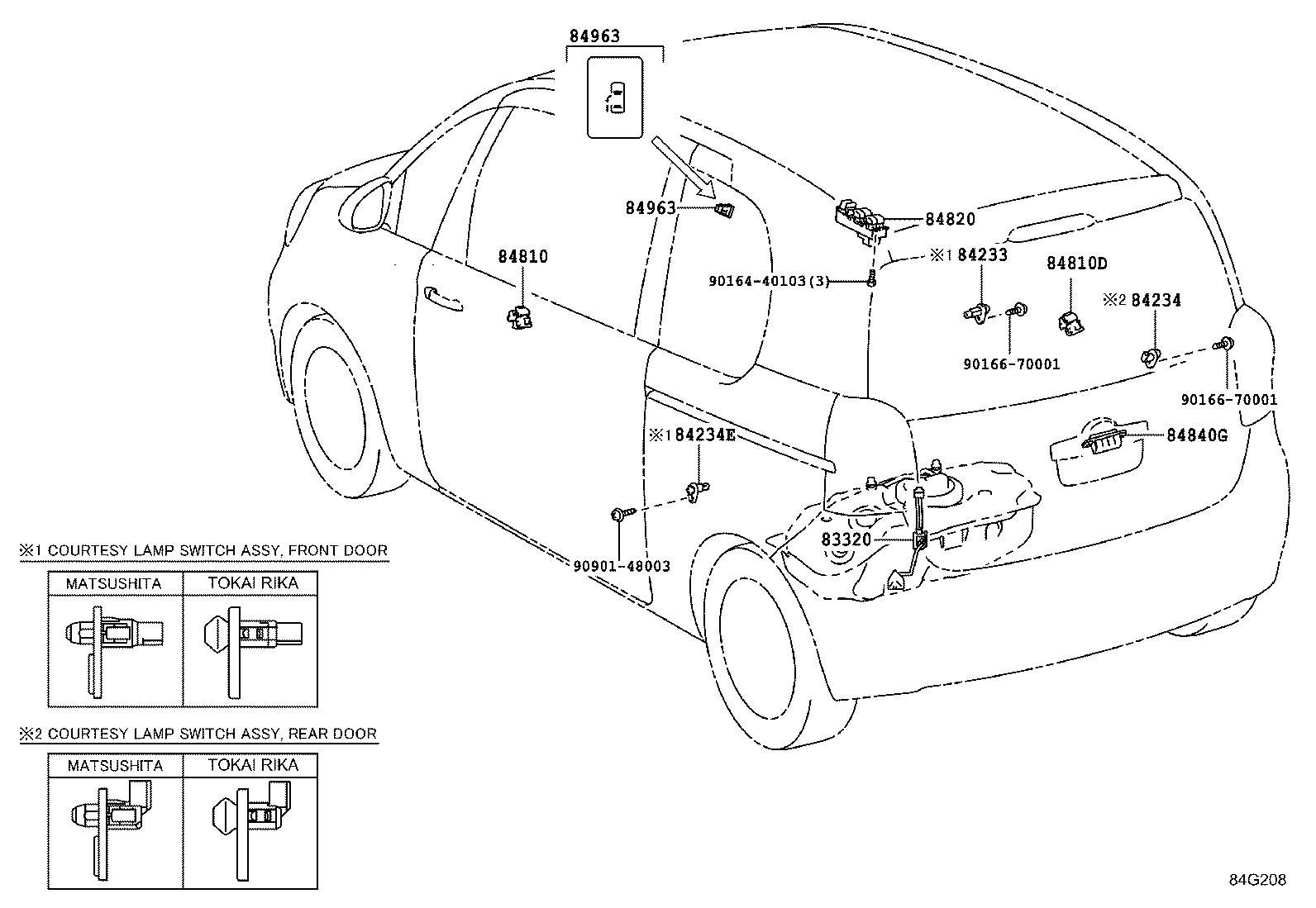

| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84234E | Switch, Courtesy Lamp (FOR SLIDE DOOR) |
| 84247A | Switch, Steering Pad, LH |
| 84306 | Cable Sub-assy, Spiral |

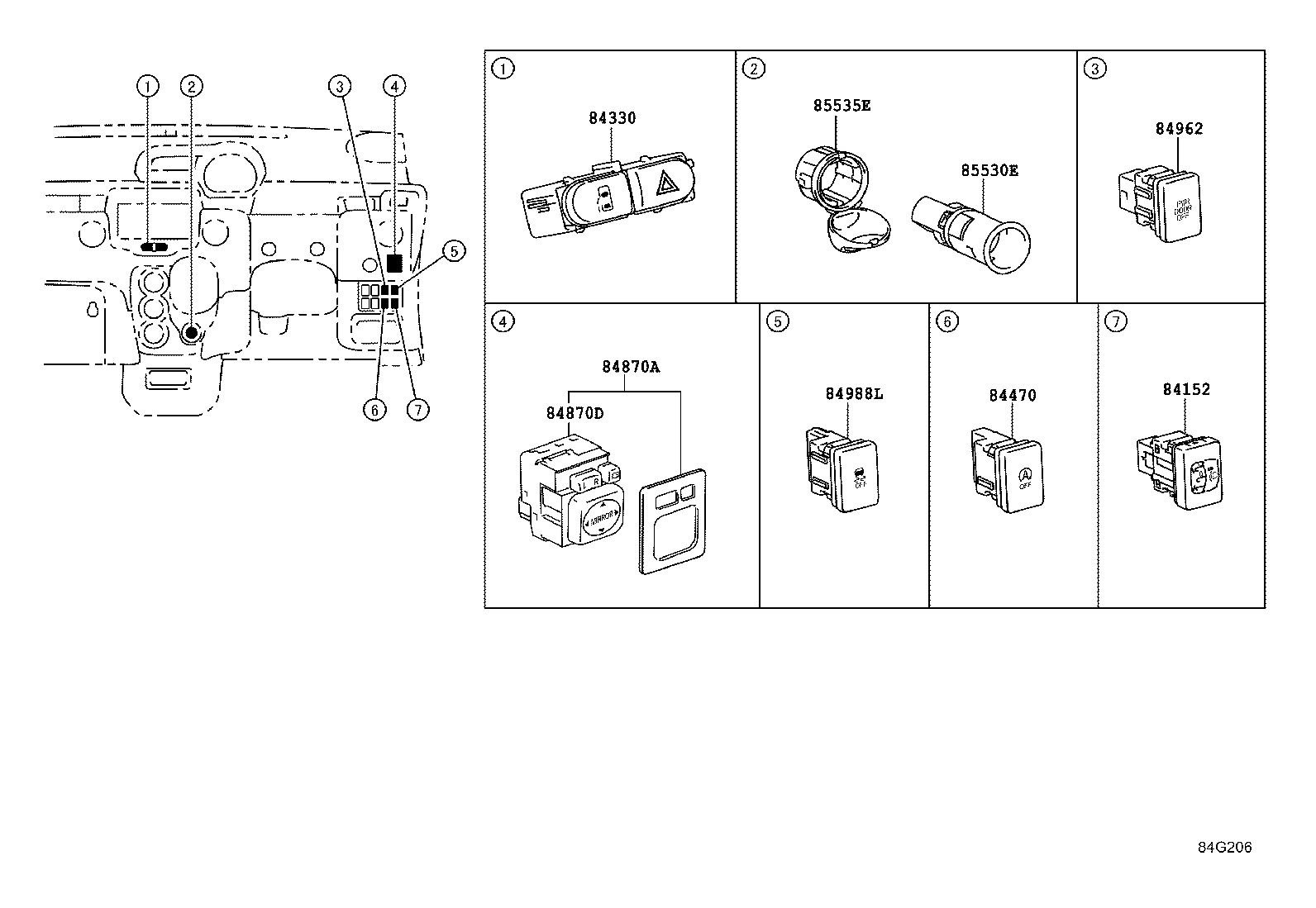

| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84450 | Switch Assy, Ignition OR Starter |
| 84470 | Switch Assy, Warning Canceling |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84870D | Switch Assy, Outer Mirror, NO.2 |
| 84962 | Switch, Power Slide Door Main |
| 84963 | Switch, Power Slide Door Control, NO.1 |
| 84988L | Switch, Vsc Off |
| 85432 | Solenoid, Key Interlock |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85912K | Relay, Vvt |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85928B | Resistor, Cooling Fan |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89420F | Sensor Assy, Vacuum |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
