Toyota Spade

2015-07 → 2020-12 · chassis NSP141 · catalogue 123320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 3 illustrations

Illustrations

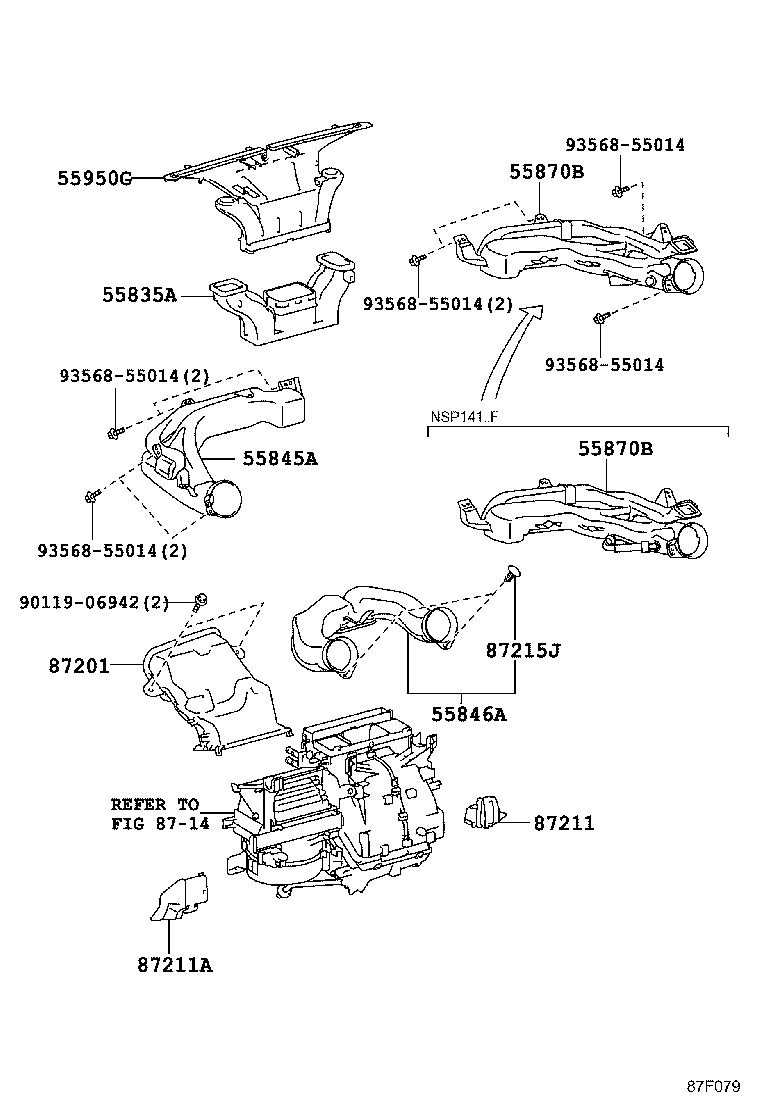

Figure 87F078B 87F078B 2015-07 → — Figure 87F079 87F079 2015-07 → — Figure 87F080A 87F080A 2015-07 → —

Part groups

PNCDescription
55835A Duct, Heater TO Register, Center
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55870B Duct Assy, Heater TO Register
55900 Control Assy, Air Conditioner
55901A Bulb, Heater Control Sub-assy, NO.1
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55902G Bulb, Heater Control Sub-assy, NO.2
55903A Control Sub-assy, Heater, NO.3
55903B Bulb, Heater Control Sub-assy, NO.3
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55911A Base, Heater Control
55950G Nozzle Assy, Defroster
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87215J Clip (FOR AIR REAR DUCT)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
