Toyota Prius C

2011-12 → 2021-06 · chassis NHP10 · catalogue 125310 · General

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

5 part groups · 2 illustrations

Illustrations

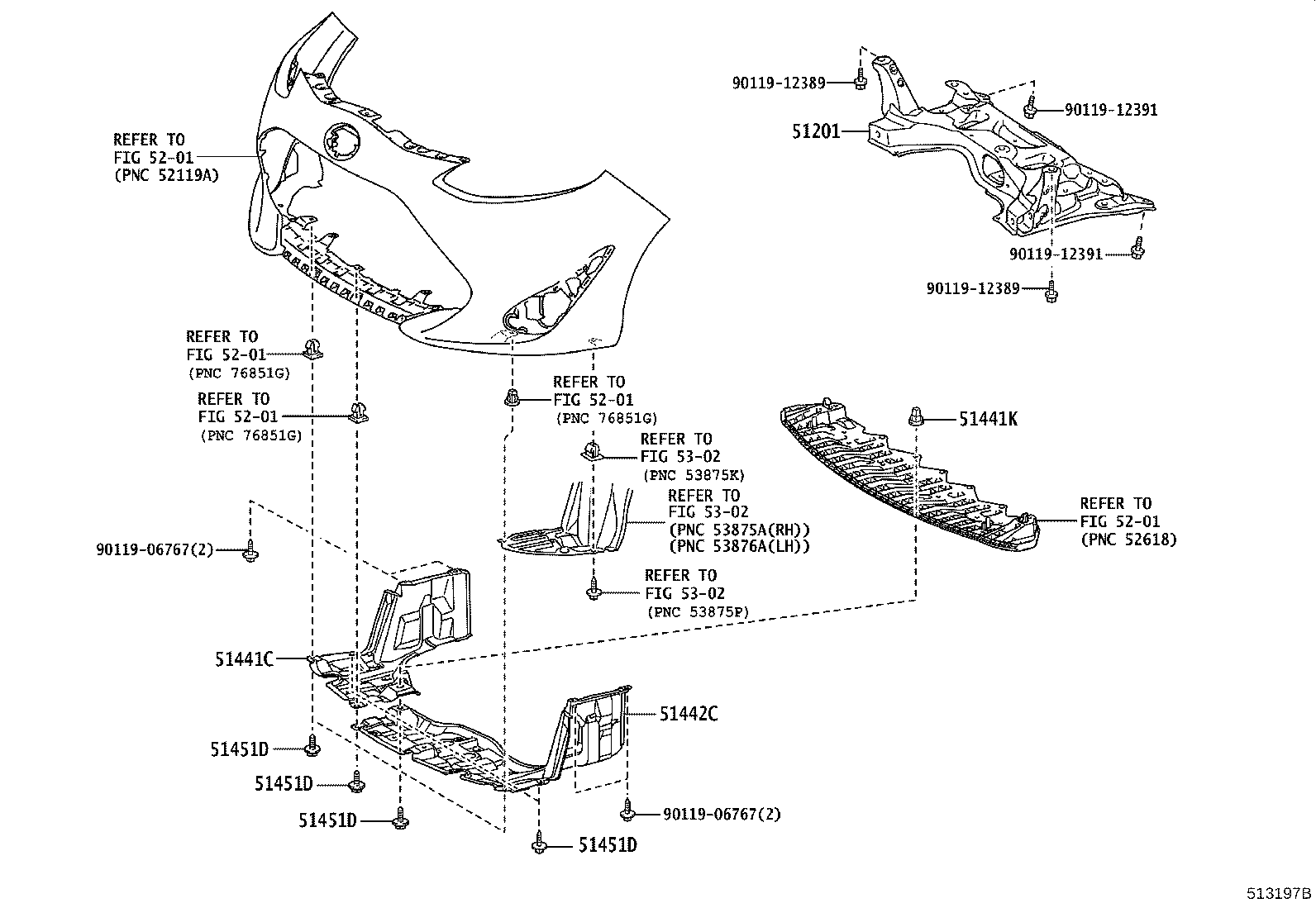

Figure 512859D 512859D 2011-12 → 2017-06 Figure 513197B 513197B 2017-06 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51441C Cover, Engine Under, RH
51441K Grommet(FOR ENGINE UNDER COVER)
51442C Cover, Engine Under, LH
51451D Screw, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
