Toyota Prius C

2011-12 → 2021-06 · chassis NHP10 · catalogue 125310 · General

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

18 part groups · 2 illustrations

Illustrations

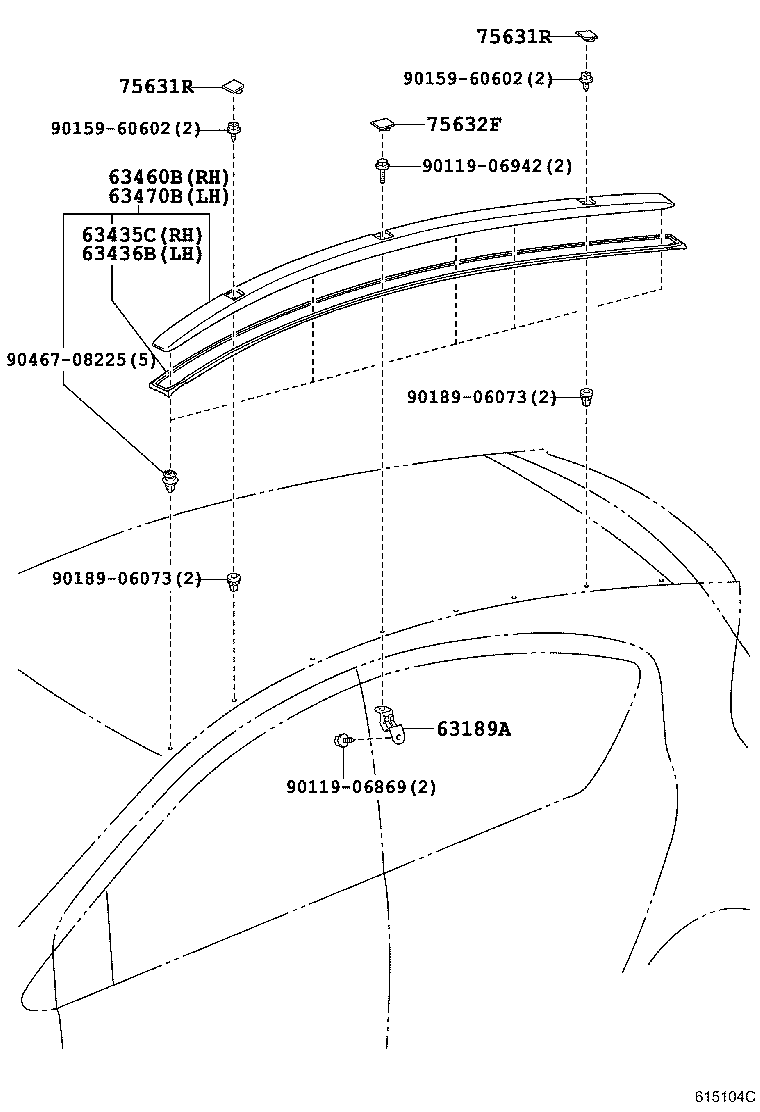

Figure 614105 614105 2011-12 → — Figure 615104C 615104C 2018-08 → —

Part groups

PNCDescription
61824A Plate, Noise Control, NO.1
63102A Panel Sub-assy, Windshield Header
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63145A Reinforcement, Roof Panel, NO.5
63147F Bracket, Roof Panel Reinforcement, RH
63148E Bracket, Roof Panel Reinforcement, LH
63189A Bracket, Roof Rack, Center
63435C Seal, Roof Carrier, NO.1 RH
63436B Seal, Roof Carrier, NO.1 LH
63460B Rack Assy, Roof, RH
63470B Rack Assy, Roof, LH
75631R Garnish, Roof Top, NO.1
75632F Garnish, Roof Top, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
