Toyota Tercel

1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · General

Discontinued model Data version 1982-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

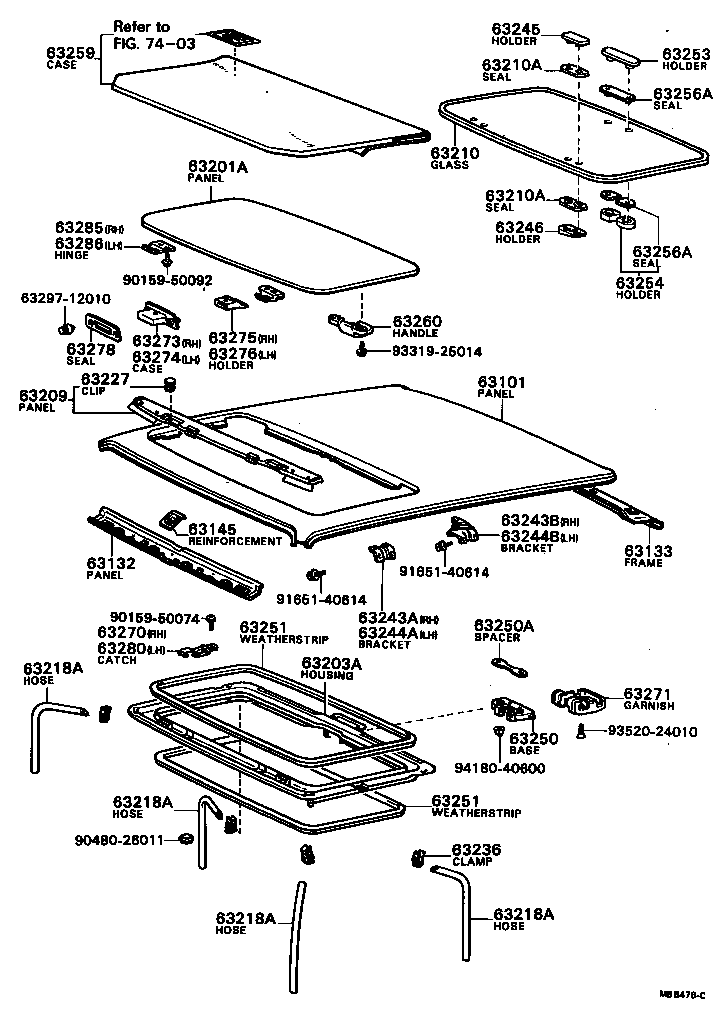

Exploded illustration MBB476C 63245 — HOLDER, REMOVABLE ROOF GLASS, OUTER FRONT (1 parts) 7403 — not listed in this catalogue 63259 — CASE, REMOVABLE ROOF (1 parts) 63253 — HOLDER, REMOVABLE ROOF GLASS, OUTER REAR (1 parts) 63210A — SEAL, REMOVABLE ROOF GLASS, OUTER (1 parts) 63256A — SEAL, REMOVABLE ROOF GLASS (2 parts) 63210 — GLASS SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF (2 parts) 63201A — PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF (2 parts) 63210A — SEAL, REMOVABLE ROOF GLASS, OUTER (1 parts) 63285 — HINGE, REMOVABLE ROOF, RH (1 parts) 63246 — HOLDER, REMOVABLE ROOF GLASS, INNER FRONT (1 parts) 63286 — HINGE, REMOVABLE ROOF, LH (1 parts) 63256A — SEAL, REMOVABLE ROOF GLASS (2 parts) 9015950092 — not listed in this catalogue 63254 — HOLDER, REMOVABLE ROOF GLASS, INNER REAR (1 parts) 6329712010 — not listed in this catalogue 63260 — HANDLE ASSY, REMOVABLE ROOF LOCK (1 parts) 63273 — CASE, REMOVABLE ROOF HINGE, RH (1 parts) 63275 — HOLDER, REMOVABLE ROOF HINGE, RH (1 parts) 63278 — SEAL, REMOVABLE ROOF HINGE CASE (1 parts) 9331925014 — not listed in this catalogue 63276 — HOLDER, REMOVABLE ROOF HINGE, LH (1 parts) 63274 — CASE, REMOVABLE ROOF HINGE, LH (1 parts) 63227 — CLIP, ROOF WIND DEFLECTOR PANEL (2 parts) 63101 — PANEL SUB-ASSY, ROOF (5 parts) 63209 — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (1 parts) 63243B — BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, RH (1 parts) 63145 — REINFORCEMENT, WINDSHIELD HEADER INNER PANEL (1 parts) 63244B — BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, LH (1 parts) 63133 — FRAME, BACK WINDOW OPENING, UPPER (2 parts) 63132 — PANEL, WINDSHIELD HEADER, INNER (1 parts) 9165140614 — not listed in this catalogue 9165140614 — not listed in this catalogue 9015950074 — not listed in this catalogue 63243A — BRACKET, REMOVABLE ROOF HOUSING FRONT MOUNTING, RH (1 parts) 63250A — SPACER, REMOVABLE ROOF LOCK BASE (1 parts) 63251 — WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF (3 parts) 63270 — CATCH ASSY, REMOVABLE ROOF AUXILIARY, RH (1 parts) 63244A — BRACKET, REMOVABLE ROOF HOUSING FRONT MOUNTING, LH (1 parts) 63280 — CATCH ASSY, REMOVABLE ROOF AUXILIARY, LH (1 parts) 63203A — HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF (2 parts) 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (2 parts) 63271 — GARNISH, REMOVABLE ROOF LOCK (1 parts) 9352024010 — not listed in this catalogue 63250 — BASE ASSY, REMOVABLE ROOF LOCK (1 parts) 9418040600 — not listed in this catalogue 63251 — WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF (3 parts) 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (2 parts) 9048026011 — not listed in this catalogue 63236 — CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE (1 parts) 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (2 parts) 63218A — HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) (2 parts)
MBB476C · 42 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
49 parts on this figure
Part number Description Fitment Price
63101 — Panel Sub-assy, Roof
63111-16010 note Panel Sub-assy, Roof
1979-01 → 1982-04 ended
AL11 3DS —
63111-16020 Panel Sub-assy, Roof
1979-01 → 1982-04 ended
AL11 2DS,4DS —
63111-16030 Panel Sub-assy, Roof
1979-01 → 1982-04 ended
AL11 3DS —
63111-16040 note Panel Sub-assy, Roof
1980-08 → 1982-04 ended
AL11 3DS DLX —
63111-16050 note Panel Sub-assy, Roof
1980-08 → 1982-04 ended
AL11 3DS DLX —
63132 — Panel, Windshield Header, Inner
63132-16010 Panel, Windshield Header, Inner
1979-01 → 1982-04 ended
AL11 —
63133 — Frame, Back Window Opening, Upper
63105-16010 Frame, Back Window Opening, Upper
1979-01 → 1982-04 ended
AL11 3DS —
63133-16010 Frame, Back Window Opening, Upper
1979-01 → 1982-04 ended
AL11 2DS,4DS —
63145 — Reinforcement, Windshield Header Inner Panel
63145-16010 Reinforcement, Windshield Header Inner Panel
1979-01 → 1982-04 ended
AL11 —
63201A — Panel Sub-assy, Sliding Roof OR Removable Roof
63201-12031 Panel Sub-assy, Sliding Roof OR Removable Roof
1980-08 → 1982-04 ended
AL11 3DS RHD —
63201-12041 Panel Sub-assy, Sliding Roof OR Removable Roof
1980-08 → 1982-04 ended
AL11 3DS LHD DLX —
63203A — Housing Sub-assy, Sliding Roof OR Removable Roof
63203-16010 Housing Sub-assy, Sliding Roof OR Removable Roof
1980-08 → 1982-04 ended
AL11 3DS RHD —
63203-16020 Housing Sub-assy, Sliding Roof OR Removable Roof
1980-08 → 1982-04 ended
AL11 3DS LHD DLX —
63209 — Panel Sub-assy, Roof Wind Deflector
63209-12010 Panel Sub-assy, Roof Wind Deflector
1980-08 → 1982-04 ended
AL11 3DS DLX —
63210 — Glass Sub-assy, Sliding Roof OR Removable Roof
63201-12010 Glass Sub-assy, Sliding Roof OR Removable Roof
1980-08 → 1982-04 ended
AL11 3DS RHD —
63201-12020 Glass Sub-assy, Sliding Roof OR Removable Roof
1980-08 → 1982-04 ended
AL11 3DS LHD DLX —
63210A — Seal, Removable Roof Glass, Outer
63257-12010 Seal, Removable Roof Glass, Outer
1980-08 → 1982-04 ended
AL11 3DS DLX —
63218A — Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
90445-14051 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1980-08 → 1982-04 ended
AL11 3DS DLX —
90445-14077 note Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1980-08 → 1982-04 ended
AL11 3DS DLX —
63227 — Clip, Roof Wind Deflector Panel
63227-12010 Clip, Roof Wind Deflector Panel
1980-08 → 1981-10 ended
AL11 3DS DLX —
63227-12011 Clip, Roof Wind Deflector Panel
1981-10 → 1982-04 ended
AL11 3DS DLX —
63236 — Clamp, Sliding Roof OR Removable Roof Drain Hose
63236-16010 Clamp, Sliding Roof OR Removable Roof Drain Hose
1980-08 → 1982-04 ended
AL11 3DS DLX —
63243A — Bracket, Removable Roof Housing Front Mounting, RH
63241-16010 Bracket, Removable Roof Housing Front Mounting, RH
1980-08 → 1982-04 ended
AL11 3DS DLX —
63243B — Bracket, Removable Roof Housing Side Mounting, RH
63243-16010 Bracket, Removable Roof Housing Side Mounting, RH
1980-08 → 1982-04 ended
AL11 3DS DLX —
63244A — Bracket, Removable Roof Housing Front Mounting, LH
63242-16010 Bracket, Removable Roof Housing Front Mounting, LH
1980-08 → 1982-04 ended
AL11 3DS DLX —
63244B — Bracket, Removable Roof Housing Side Mounting, LH
63244-16010 Bracket, Removable Roof Housing Side Mounting, LH
1980-08 → 1982-04 ended
AL11 3DS DLX —
63245 — Holder, Removable Roof Glass, Outer Front
63245-12010 Holder, Removable Roof Glass, Outer Front
1980-08 → 1982-04 ended
AL11 3DS DLX —
63246 — Holder, Removable Roof Glass, Inner Front
63246-12010 Holder, Removable Roof Glass, Inner Front
1980-08 → 1982-04 ended
AL11 3DS DLX —
63250 — Base Assy, Removable Roof Lock
63250-12010 Base Assy, Removable Roof Lock
1980-08 → 1982-04 ended
AL11 3DS DLX —
63250A — Spacer, Removable Roof Lock Base
63277-12010 Spacer, Removable Roof Lock Base
1980-08 → 1982-04 ended
AL11 3DS DLX —
63251 — Weatherstrip, Sliding Roof Panel OR Removable Roof
63251-12010 note Weatherstrip, Sliding Roof Panel OR Removable Roof
1980-08 → 1982-04 ended
AL11 3DS DLX —
63251-12020 note Weatherstrip, Sliding Roof Panel OR Removable Roof
1980-08 → 1982-04 ended
AL11 3DS DLX —
63252-12010 note Weatherstrip, Sliding Roof Panel OR Removable Roof
1980-08 → 1982-04 ended
AL11 3DS DLX —
63253 — Holder, Removable Roof Glass, Outer Rear
63253-12010 Holder, Removable Roof Glass, Outer Rear
1980-08 → 1982-04 ended
AL11 3DS DLX —
63254 — Holder, Removable Roof Glass, Inner Rear
63254-12010 Holder, Removable Roof Glass, Inner Rear
1980-08 → 1982-04 ended
AL11 3DS DLX —
63256A — Seal, Removable Roof Glass
63254-12010 note Seal, Removable Roof Glass
1980-08 → 1982-04 ended
AL11 3DS DLX —
63255-12010 note Seal, Removable Roof Glass
1980-08 → 1982-04 ended
AL11 3DS DLX —
63259 — Case, Removable Roof
63259-12020 Case, Removable Roof
1980-08 → 1982-04 ended
AL11 3DS DLX —
63260 — Handle Assy, Removable Roof Lock
63260-12020 Handle Assy, Removable Roof Lock
1980-08 → 1982-04 ended
AL11 3DS DLX —
63270 — Catch Assy, Removable Roof Auxiliary, RH
63270-12010 Catch Assy, Removable Roof Auxiliary, RH
1980-08 → 1982-04 ended
AL11 3DS RHD —
63271 — Garnish, Removable Roof Lock
63271-12010 Garnish, Removable Roof Lock
1980-08 → 1982-04 ended
AL11 3DS DLX —
63273 — Case, Removable Roof Hinge, RH
63273-12010 Case, Removable Roof Hinge, RH
1980-08 → 1982-04 ended
AL11 3DS DLX —
63274 — Case, Removable Roof Hinge, LH
63274-12010 Case, Removable Roof Hinge, LH
1980-08 → 1982-04 ended
AL11 3DS DLX —
63275 — Holder, Removable Roof Hinge, RH
63275-12010 Holder, Removable Roof Hinge, RH
1980-08 → 1982-04 ended
AL11 3DS DLX —
63276 — Holder, Removable Roof Hinge, LH
63276-12010 Holder, Removable Roof Hinge, LH
1980-08 → 1982-04 ended
AL11 3DS DLX —
63278 — Seal, Removable Roof Hinge Case
63278-12010 Seal, Removable Roof Hinge Case
1980-08 → 1982-04 ended
AL11 3DS DLX —
63280 — Catch Assy, Removable Roof Auxiliary, LH
63280-12010 Catch Assy, Removable Roof Auxiliary, LH
1980-08 → 1982-04 ended
AL11 3DS LHD DLX —
63285 — Hinge, Removable Roof, RH
63285-16010 Hinge, Removable Roof, RH
1980-08 → 1982-04 ended
AL11 3DS DLX —
63286 — Hinge, Removable Roof, LH
63286-16010 Hinge, Removable Roof, LH
1980-08 → 1982-04 ended
AL11 3DS DLX —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
