Toyota Tercel

1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · General

Discontinued model Data version 1982-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

15 part groups · 2 illustrations

Illustrations

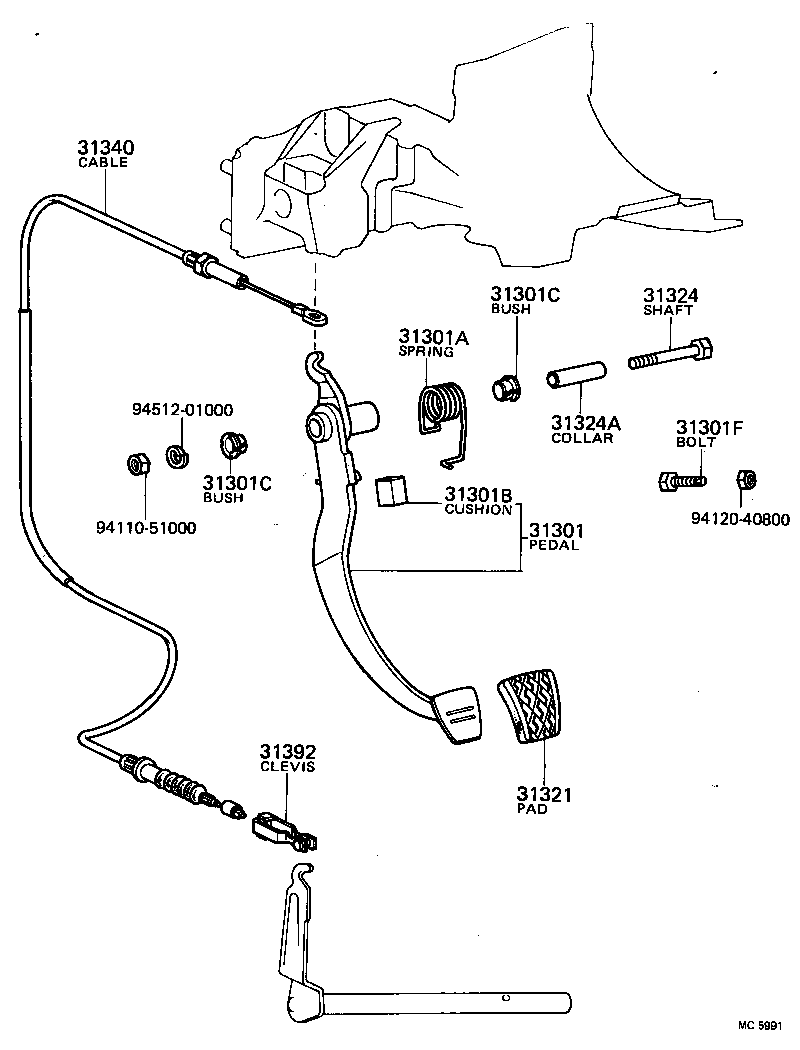

Figure MC5572 MC5572 1979-01 → — Figure MC5991 MC5991 1979-01 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31340 Cable Assy, Clutch Release
31340B Clamp(FOR CLUTCH RELEASE CABLE)
31341 Bracket, Clutch Cable
31342 Holder, Clutch Cable, Inner
31342A Bush(FOR CLUTCH RELEASE CABLE)
31349 Insulator, Clutch Cable Heat
31392 Clevis, Clutch Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
