Toyota Tercel

1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · General

Discontinued model Data version 1982-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

8 part groups · 2 illustrations

Illustrations

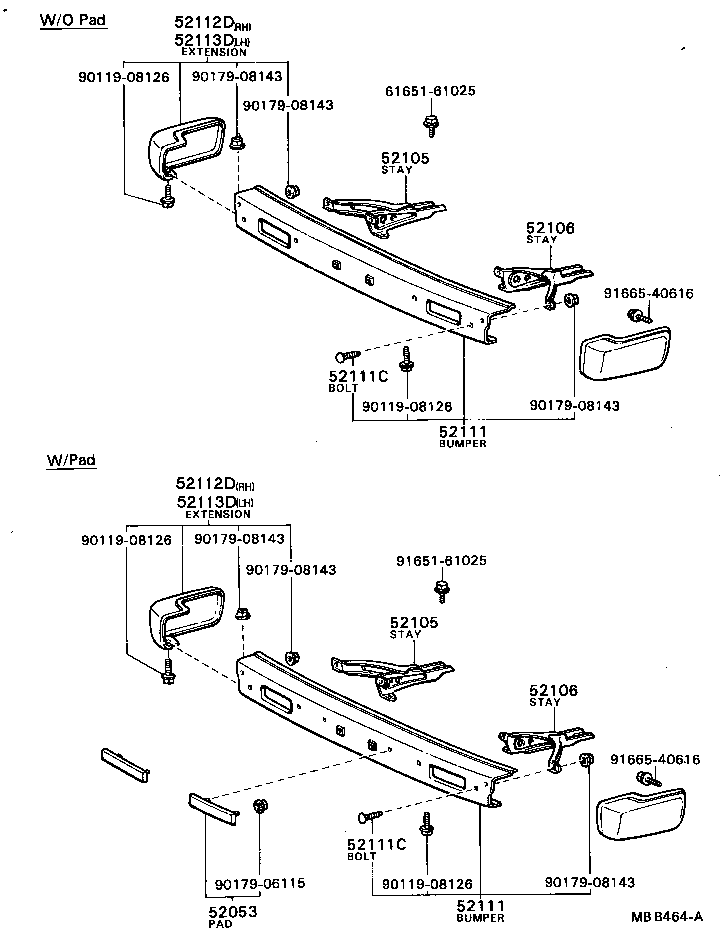

Figure MB8714B MB8714B 1979-01 → 1980-08 Figure MBB464A MBB464A 1980-08 → —

Part groups

PNCDescription
52053 Pad Sub-assy, Front Bumper
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52111C Bolt, Round Head Square Neck(FOR FRONT BUMPER)
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52501 Filler Sub-assy, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
