Toyota Tercel

1979-01 → 1982-04 · chassis AL1# · catalogue 131210 · General

Discontinued model Data version 1982-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

27 part groups · 3 illustrations

Illustrations

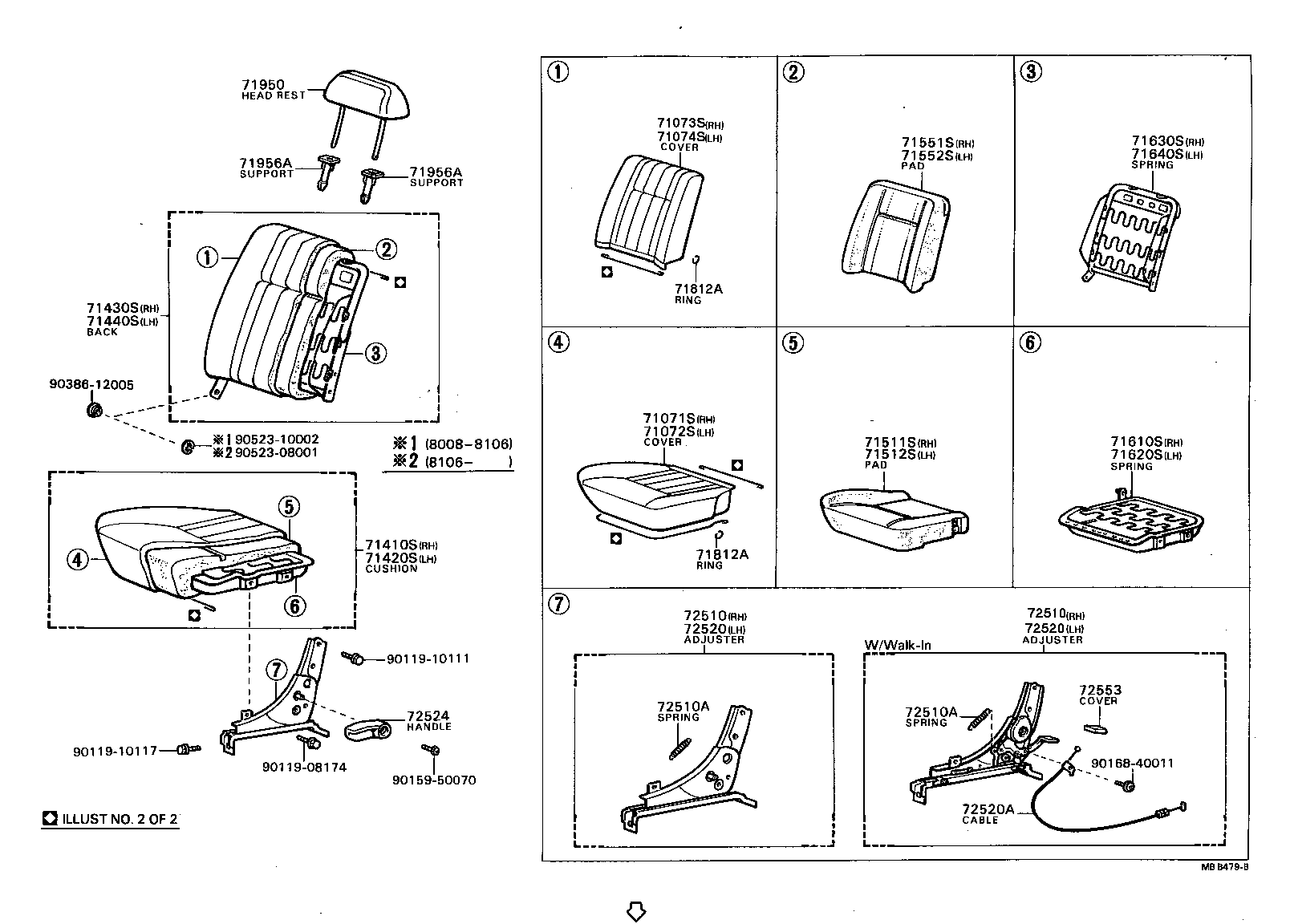

Figure MB8746E MB8746E 1979-01 → 1980-08 Figure MBB479B MBB479B 1980-08 → — Figure MBB482A MBB482A 1980-08 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71581A Pad, Front Seatback Corner, A
71581B Pad, Front Seatback Corner, B
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71812A Ring, Hog, Small (FOR FRONT SEAT)
71950 Headrest Assy, Front Seat
71956A Support, Front Seat Headrest
72510 Adjuster Assy, Reclining Seatback, RH
72510A Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
72520 Adjuster Assy, Reclining Seatback, LH
72520A Cable, Adjuster TO Seat Track
72524 Handle, Reclining Adjuster Release
72553 Cover, Reclining Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
