Toyota Tercel

1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · General

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

9 part groups · 3 illustrations

Illustrations

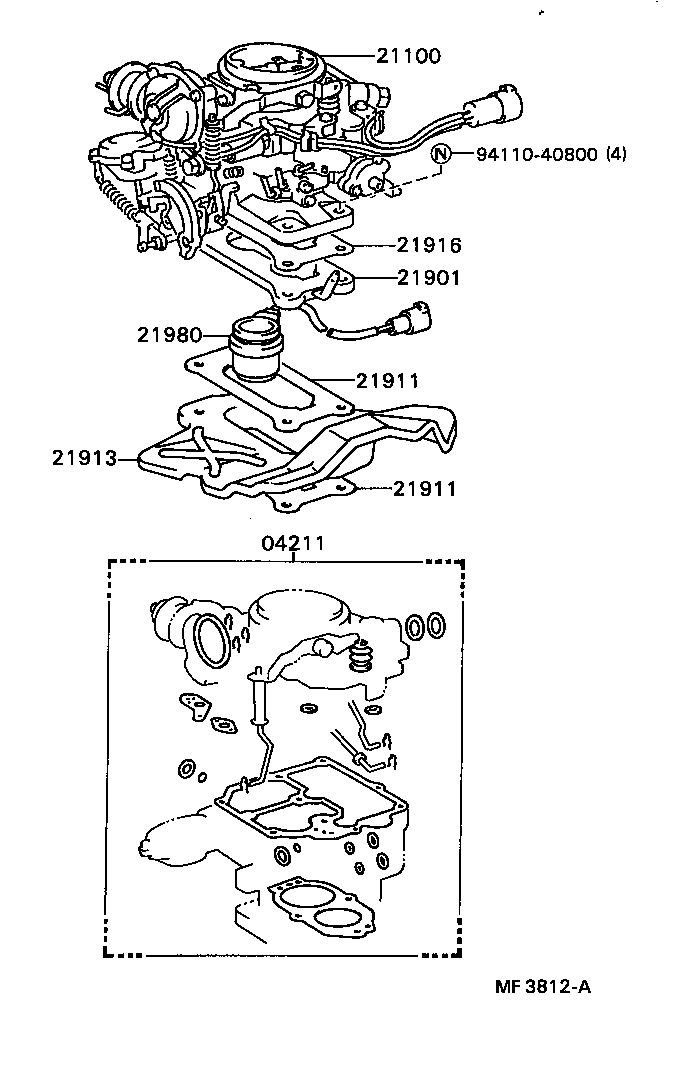

Figure MF2829D MF2829D 1982-05 → 1986-05 Figure MF2829D MF2829D 1986-05 → — Figure MF3812A MF3812A 1986-05 → —

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21100 Carburetor Assy
21673 Cap, Idle Limit
21901 Insulator Sub-assy, Carburetor Heat, NO.1
21911 Gasket, Carburetor
21913 Insulator, Carburetor Heat, NO.2
21916 Gasket, Carburetor, NO.2
21980 Heater Assy, Cold Mixture
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
