Toyota Glanza

2019-04 → present · chassis K12M,K12N · catalogue 132310 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

14 part groups · 6 illustrations

Illustrations

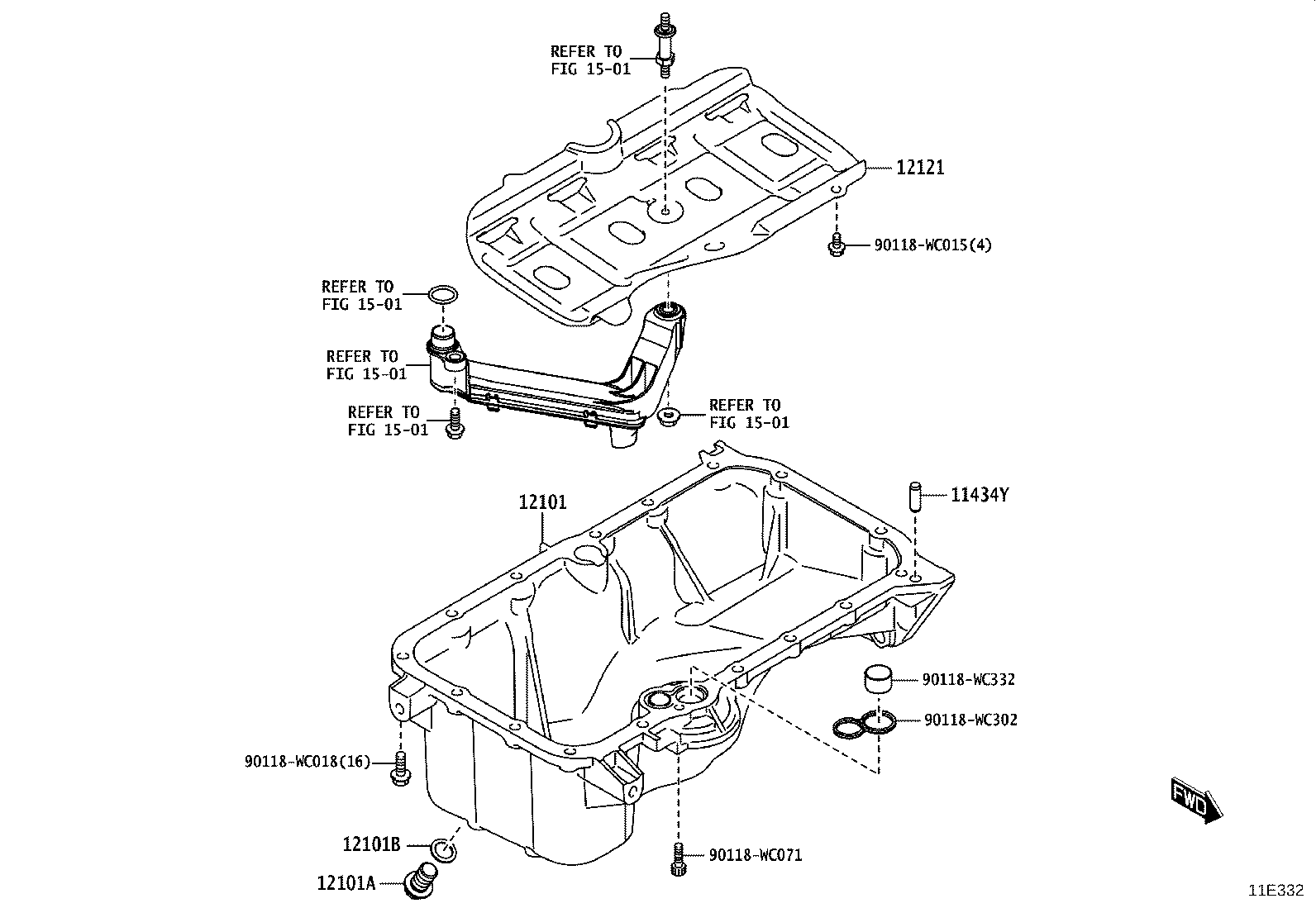

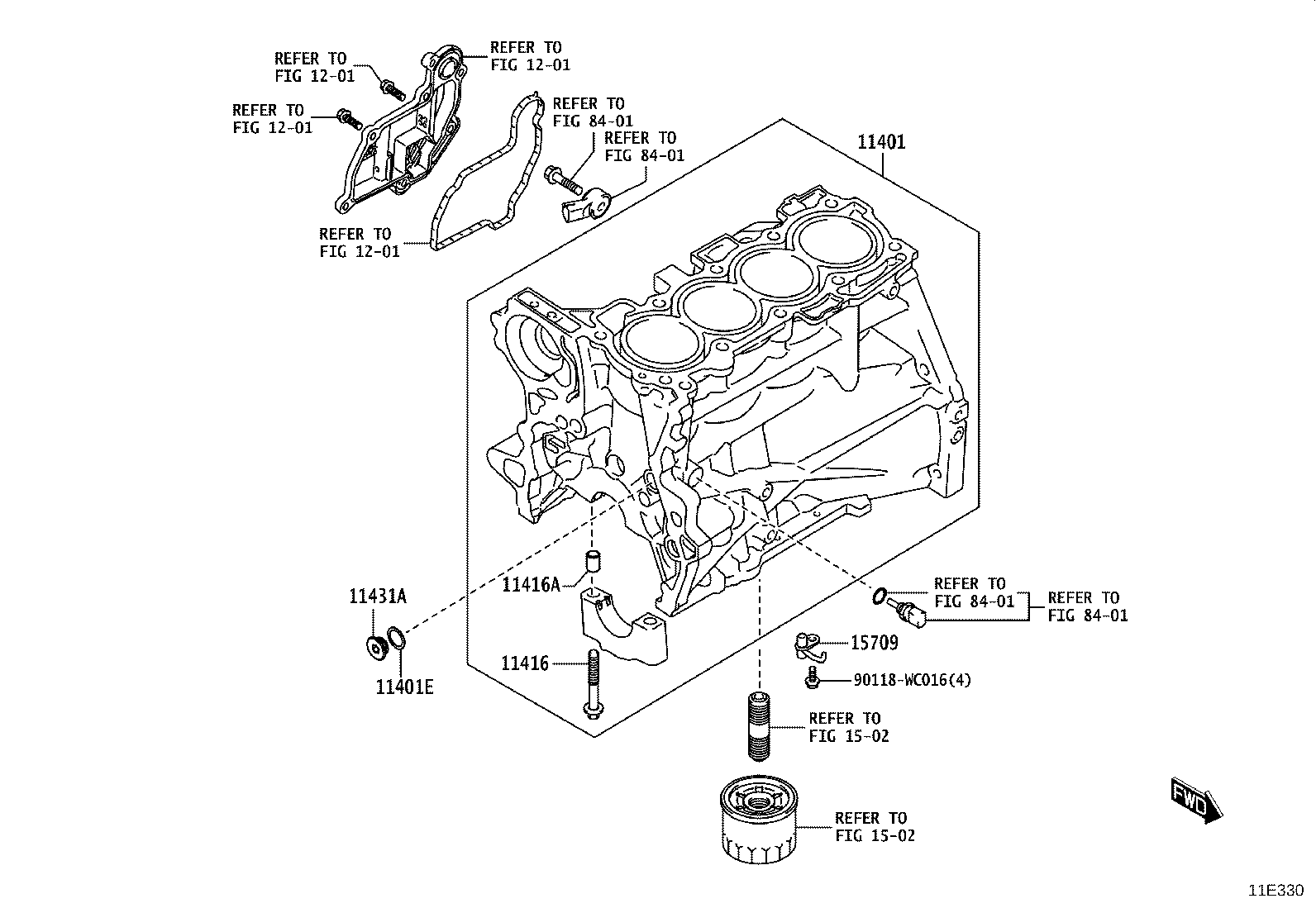

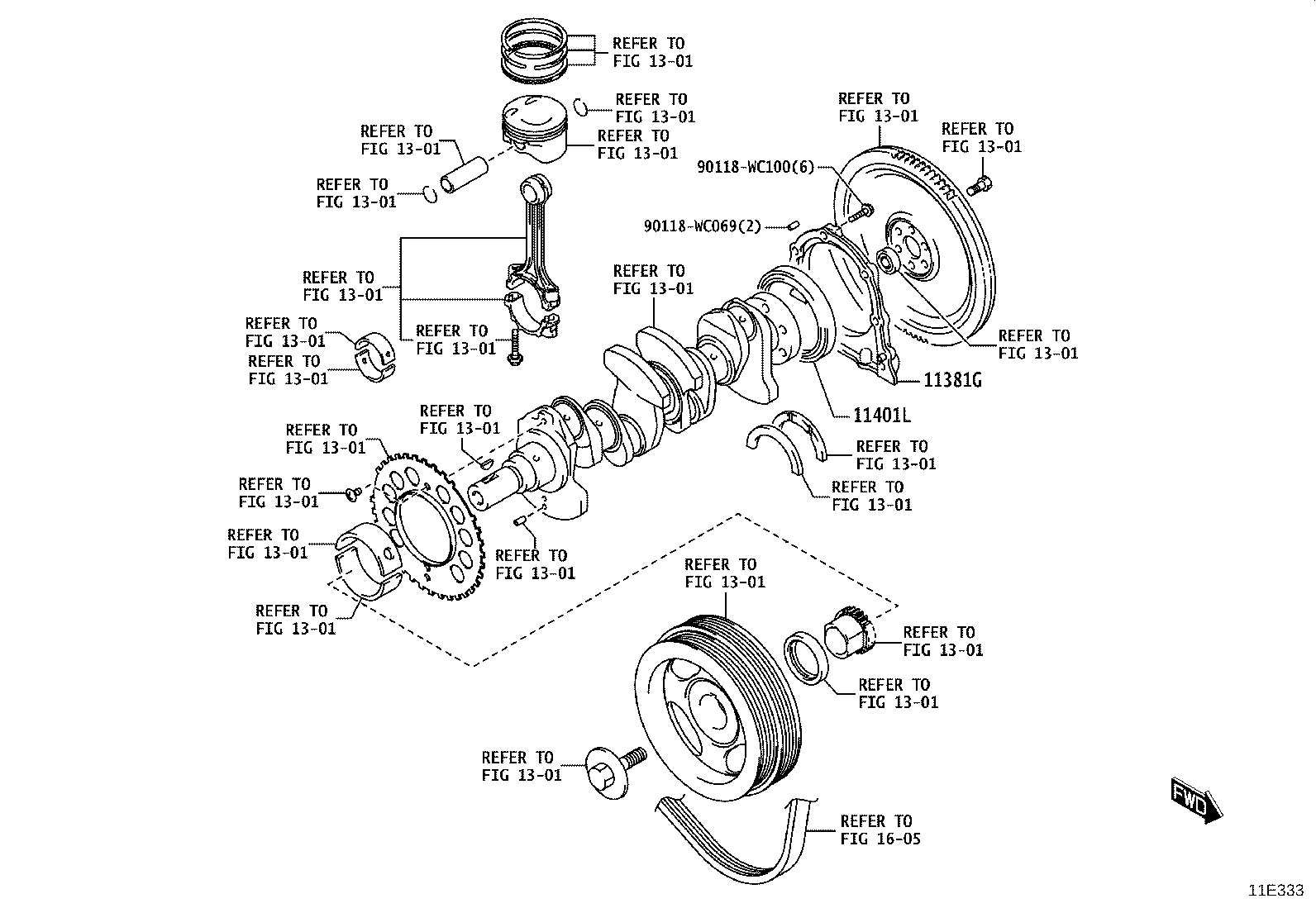

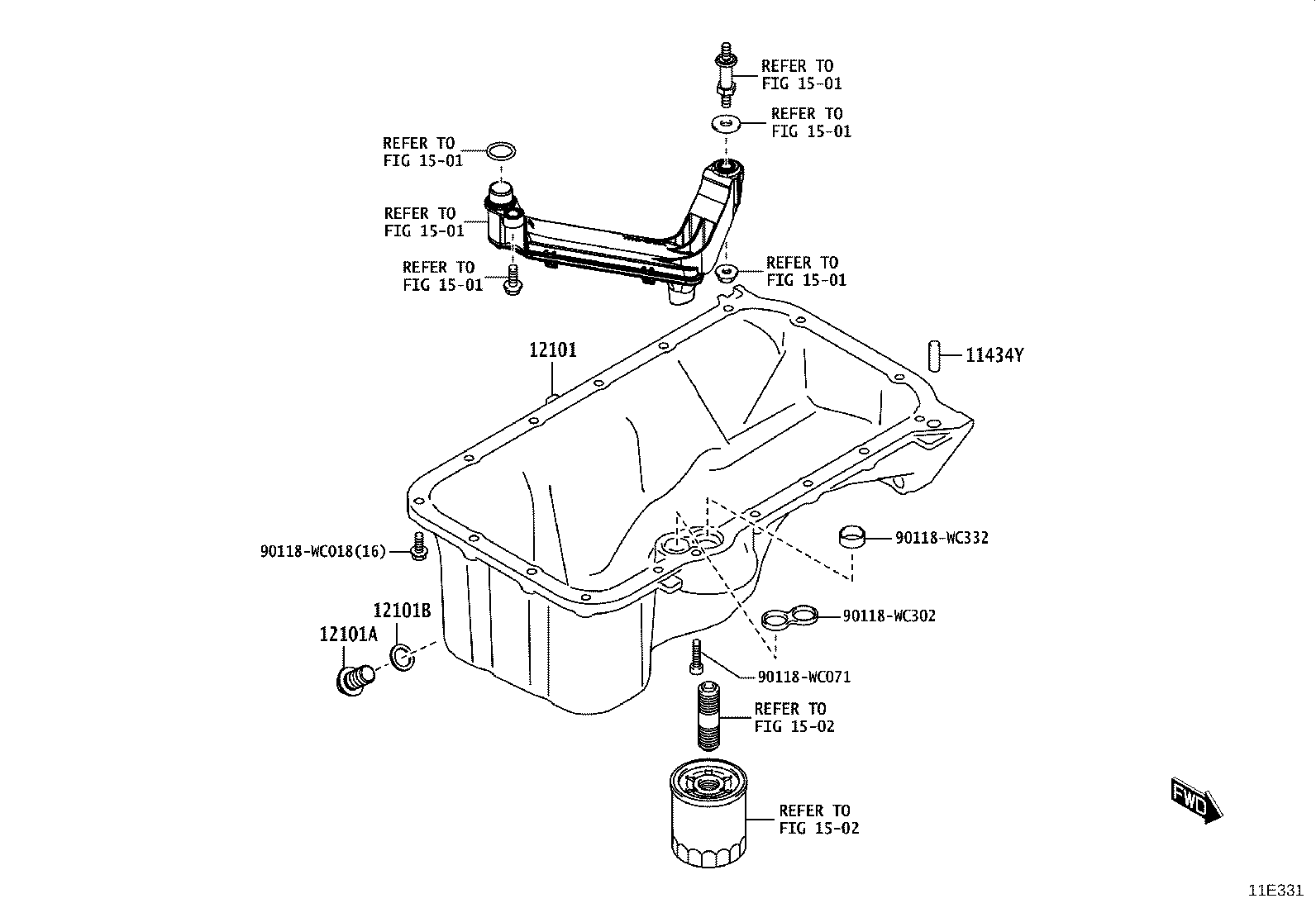

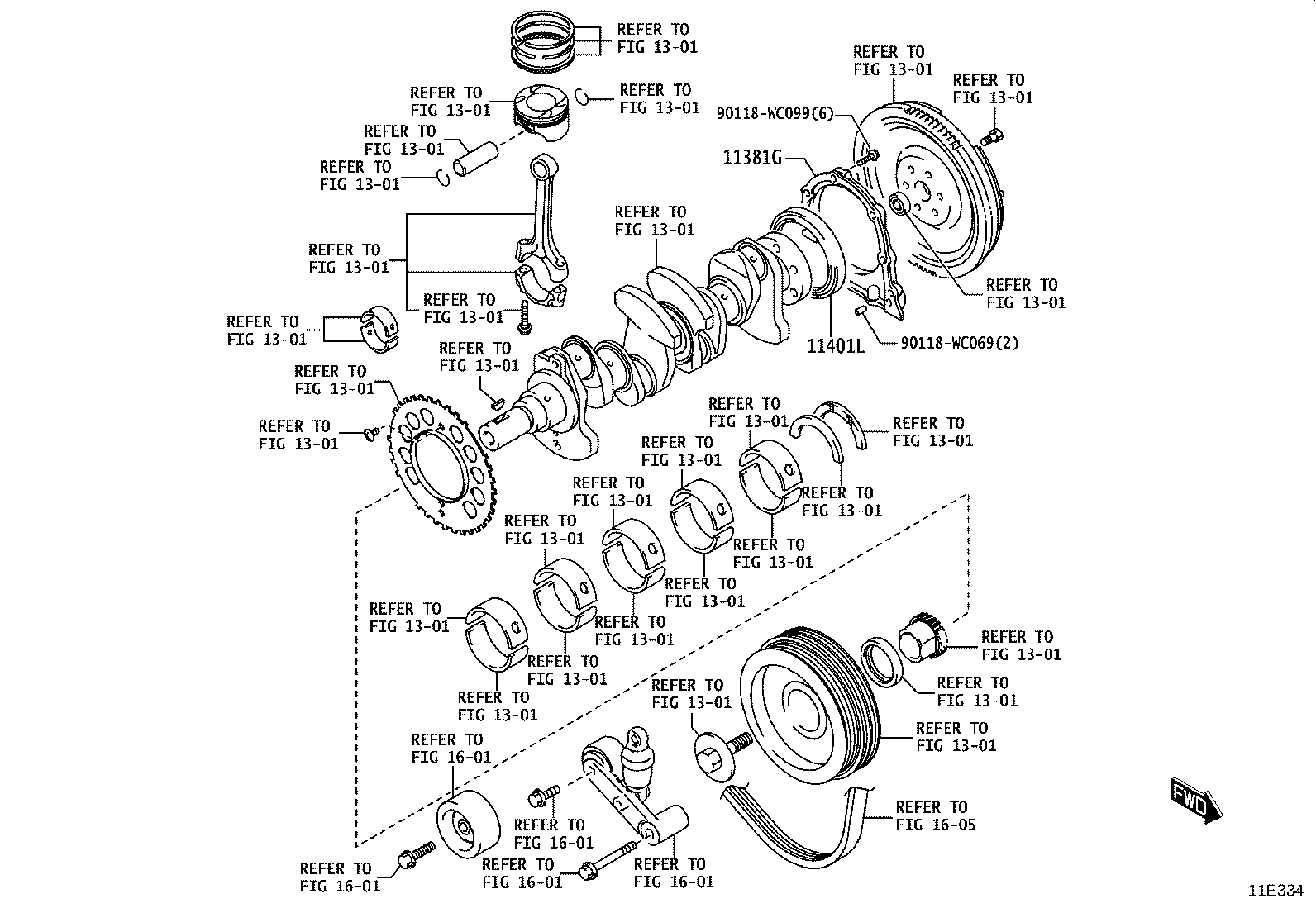

Figure 11E329 11E329 2019-04 → — Figure 11E330 11E330 2019-04 → — Figure 11E331 11E331 2019-04 → — Figure 11E332 11E332 2019-04 → — Figure 11E333 11E333 2019-04 → — Figure 11E334 11E334 2019-04 → —

Part groups

PNCDescription
11381G Retainer, Engine Rear Oil Seal
11401 Block Sub-assy, Cylinder
11401E Gasket(FOR CYLINDER BLOCK PLUG)
11401L Seal, Engine Rear Oil
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11434Y Pin, Straight(FOR OIL PAN)
11445 Spacer, Cylinder Block Water Jacket
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12121 Plate, Oil Pan Baffle, NO.1
15709 Nozzle Sub-assy, Oil, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
