Toyota Glanza

2019-04 → present · chassis K12M,K12N · catalogue 132310 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

5 part groups · 3 illustrations

Illustrations

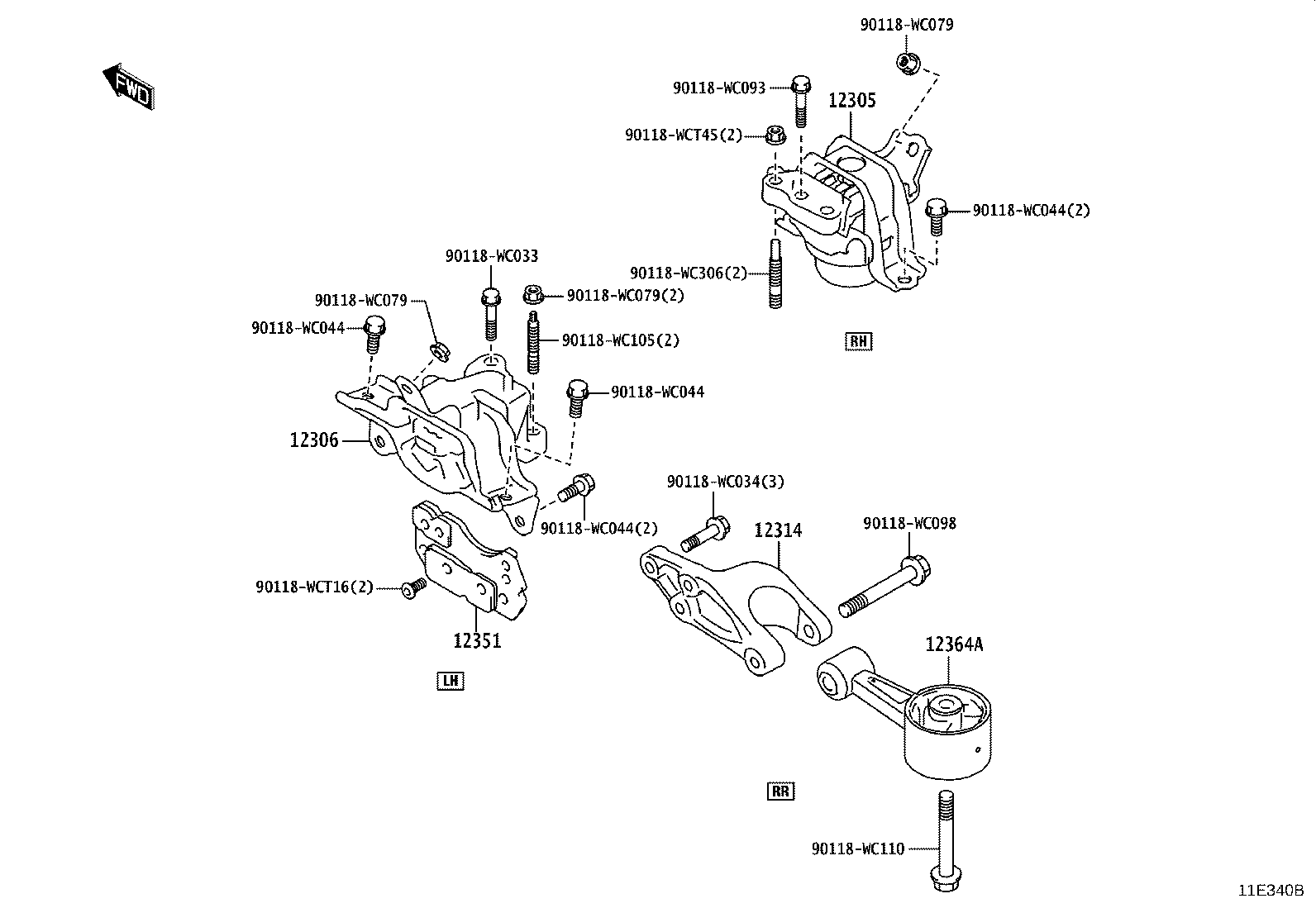

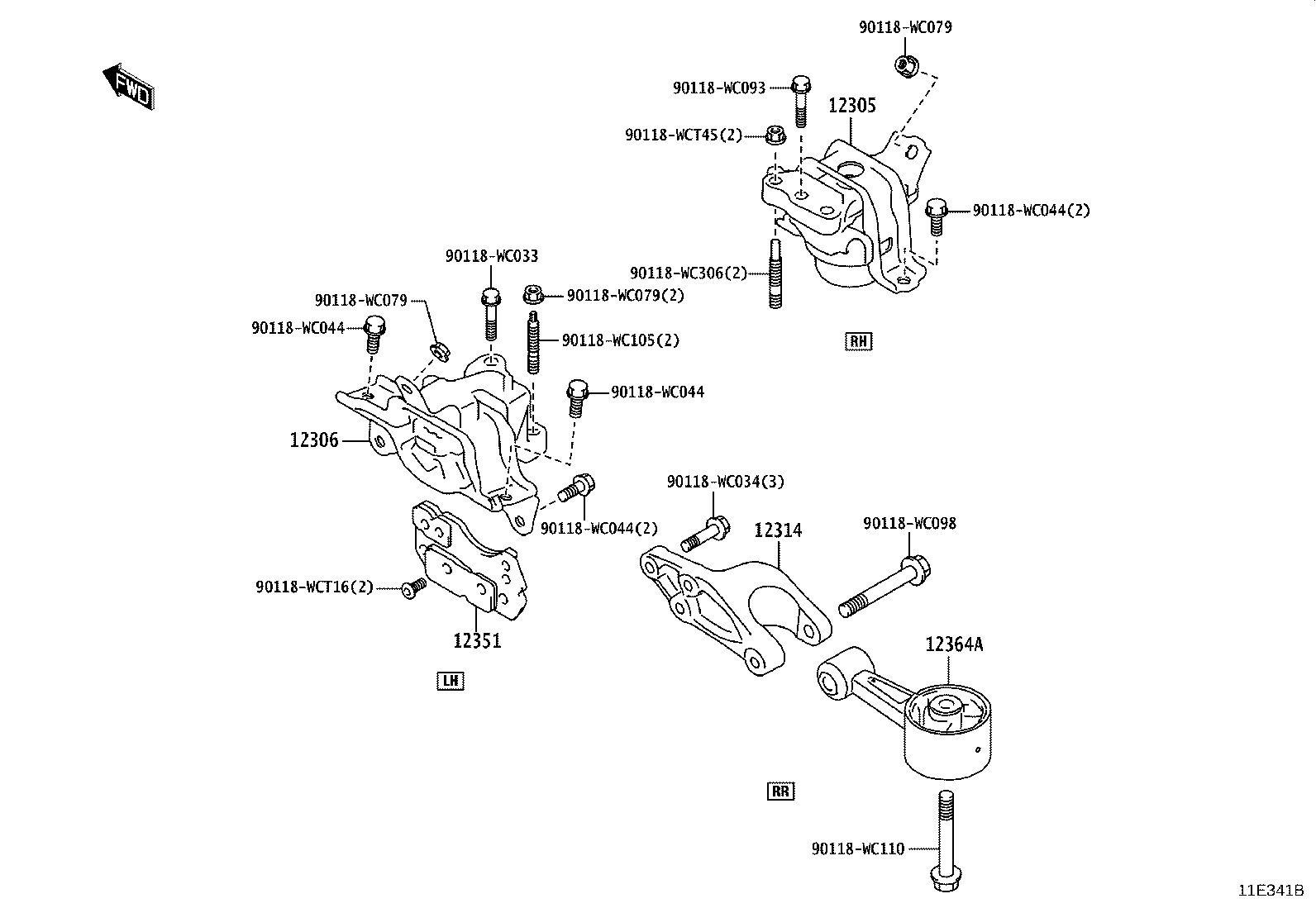

Figure 11E339B 11E339B 2019-04 → — Figure 11E340B 11E340B 2019-04 → — Figure 11E341B 11E341B 2019-04 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12314 Bracket, Engine Lateral Control Rod
12351 Damper, Engine Mounting
12364A Rod, Engine Lateral Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
