Toyota Glanza
2019-04 → present · chassis K12M,K12N · catalogue 132310 · General
Supported model
Data version 2019-11
Ventilation Hose
8 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

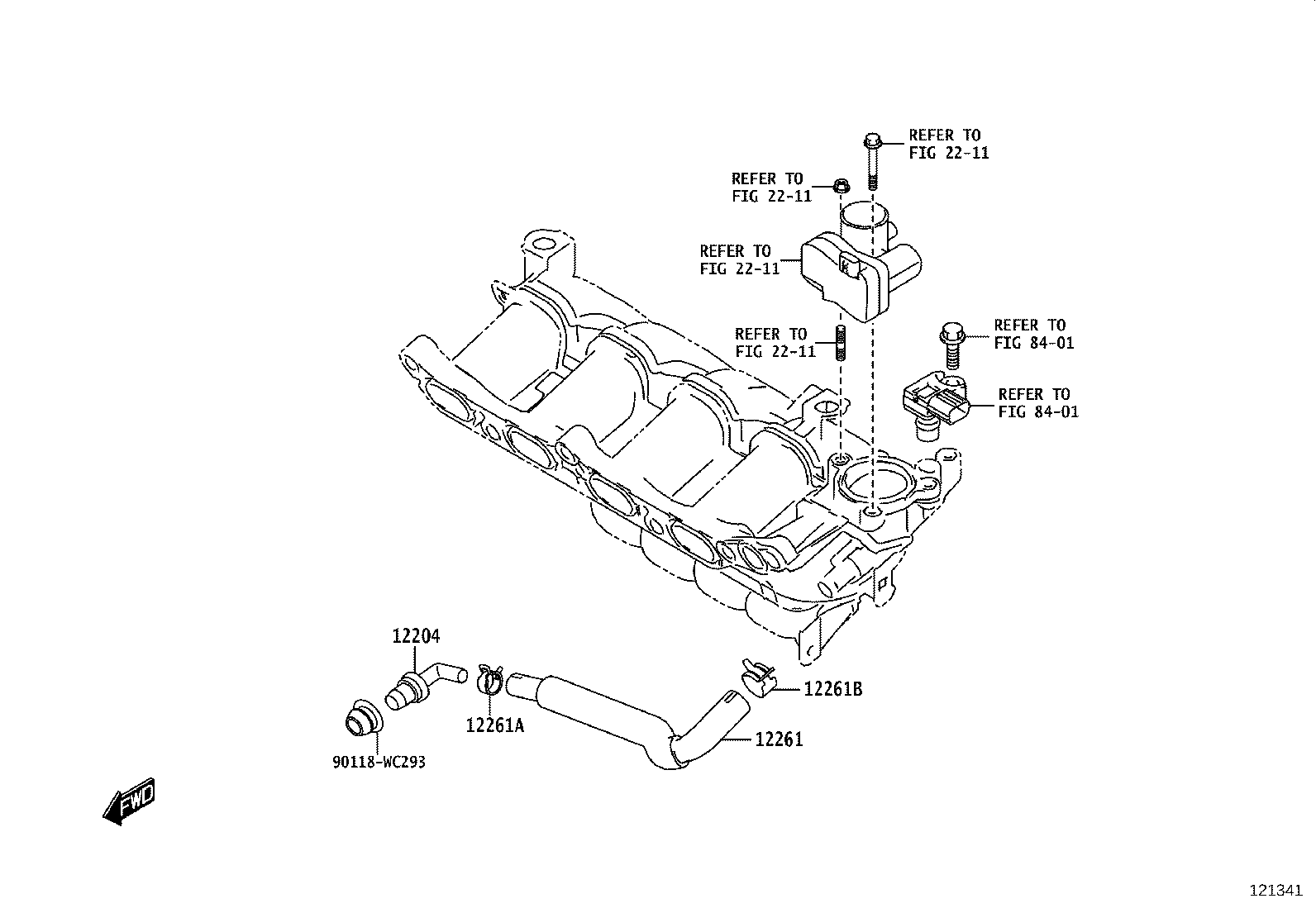

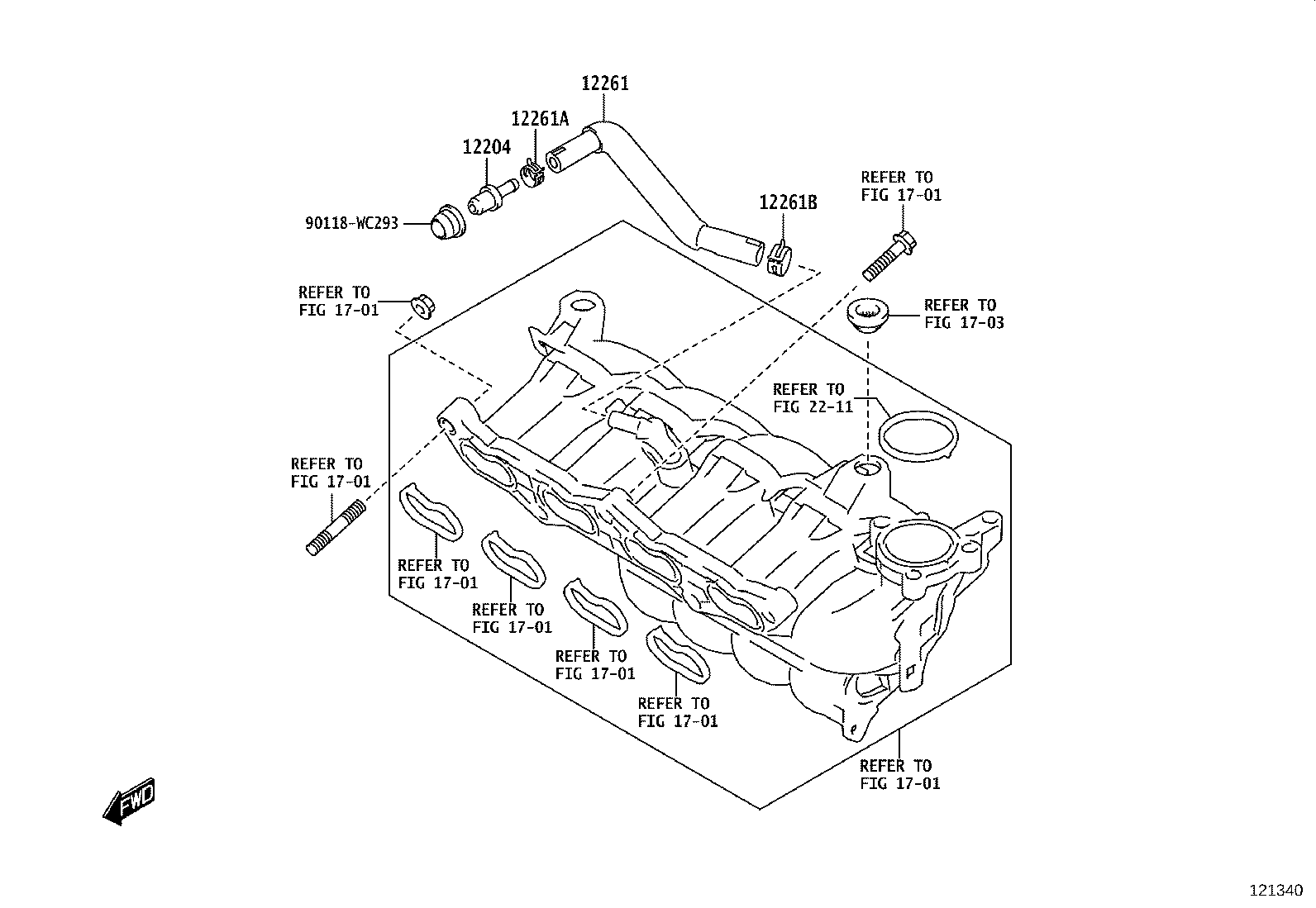

| 12204 | Valve Sub-assy, Ventilation |
| 12205 | Case Sub-assy, Ventilation |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12261B | Clip OR Clamp(FOR VENTILATION HOSE) |

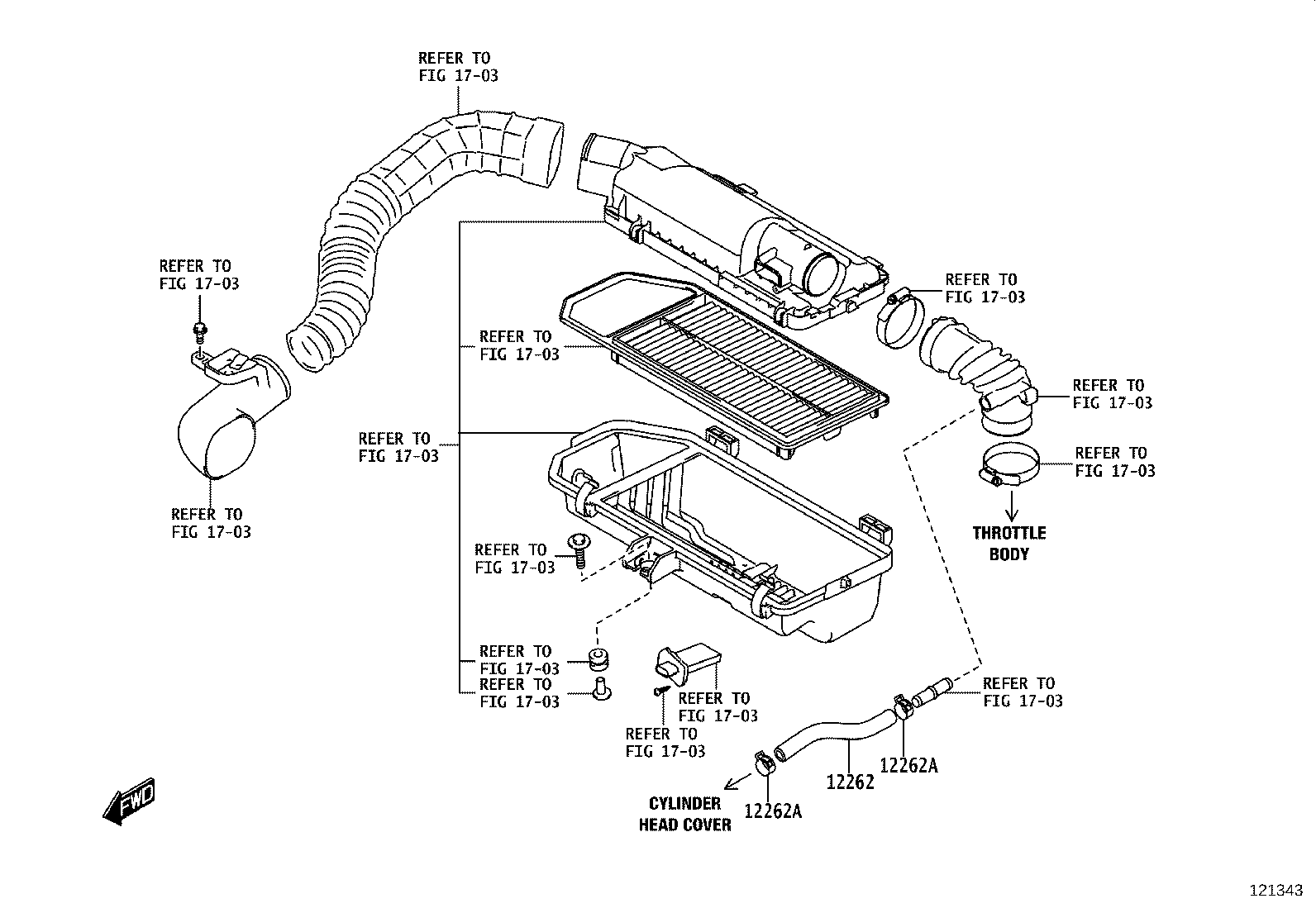

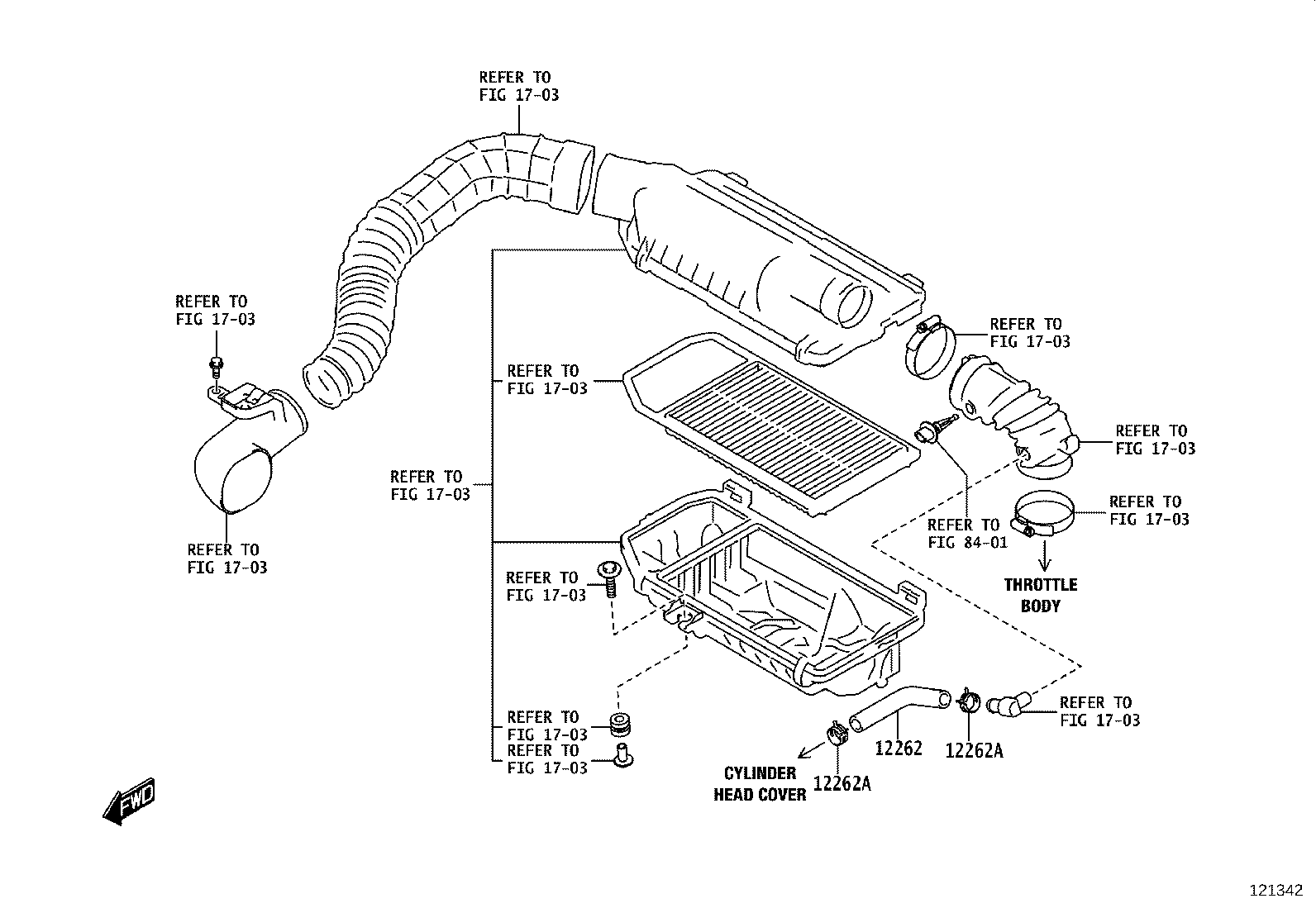

| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12273B | Gasket, Oil Separator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
