Toyota Glanza

2019-04 → present · chassis K12M,K12N · catalogue 132310 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

7 part groups · 4 illustrations

Illustrations

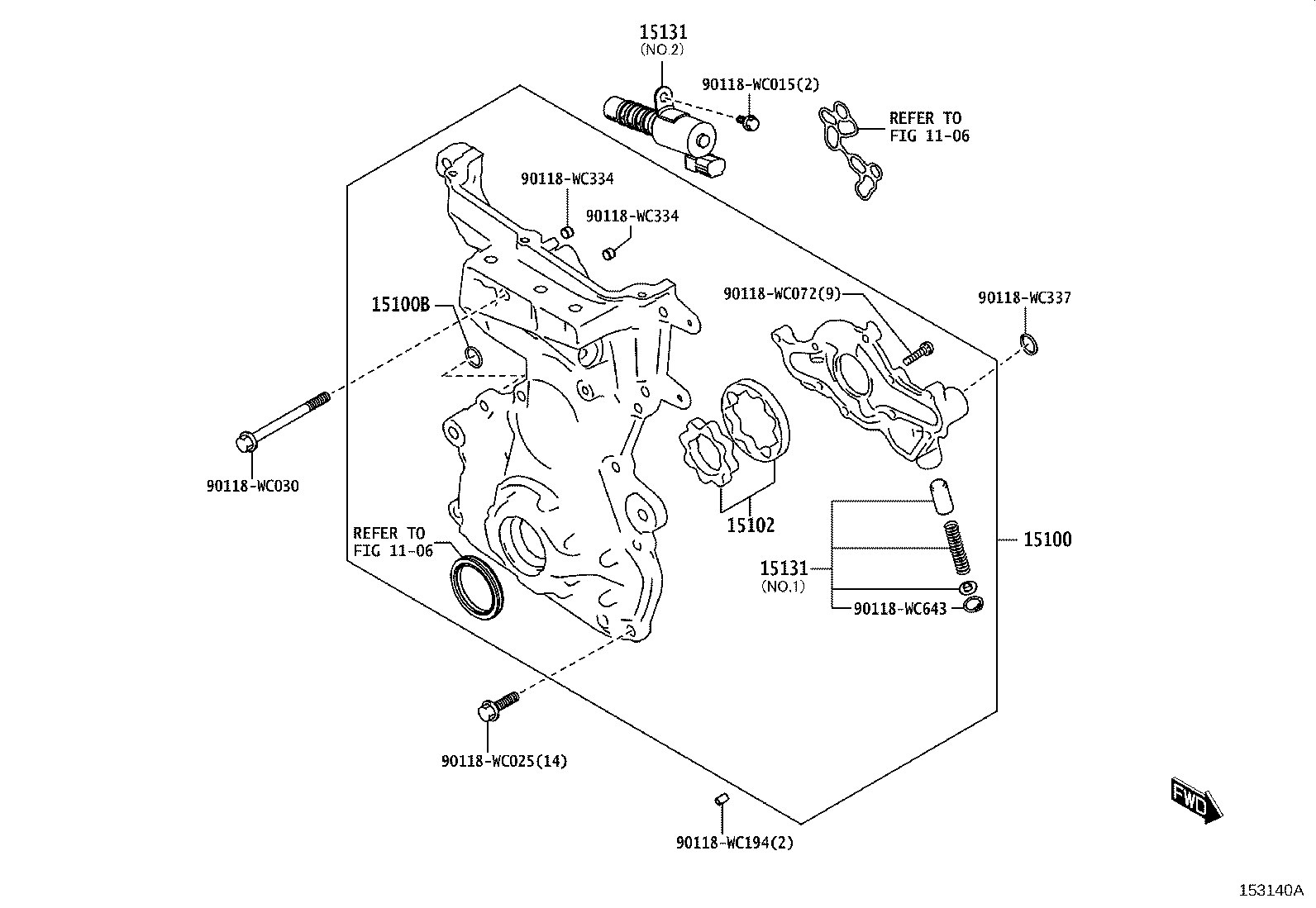

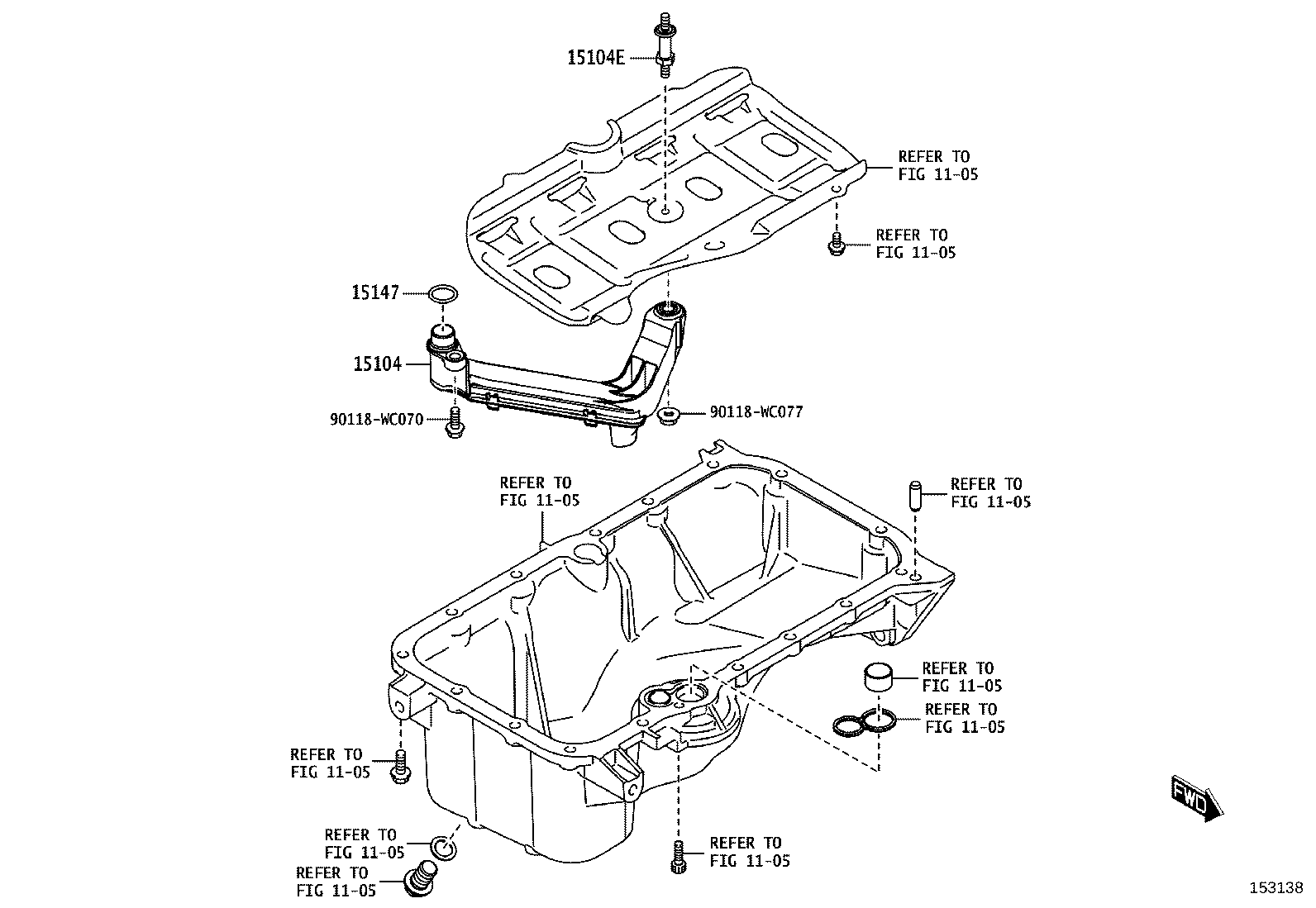

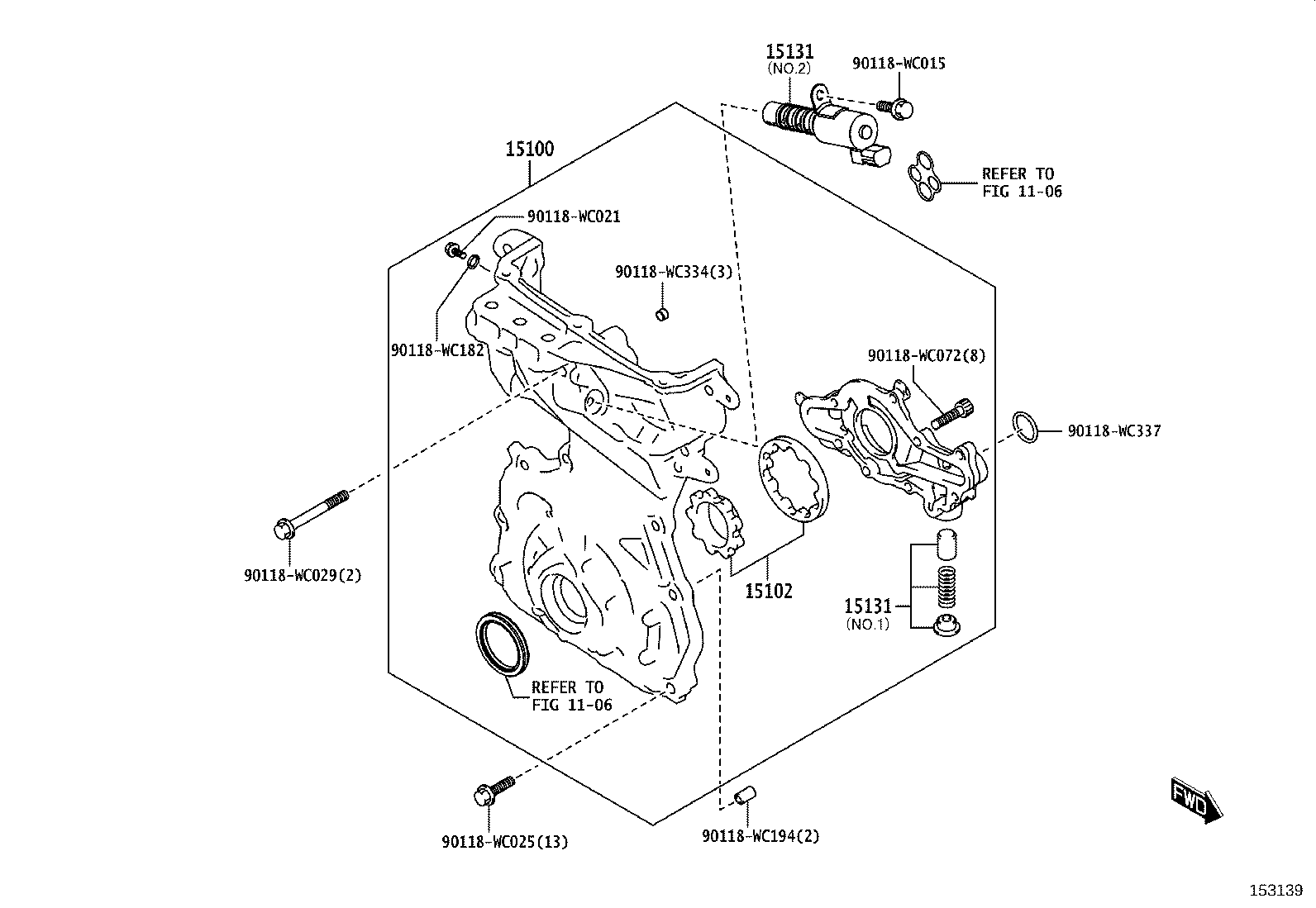

Figure 153137 153137 2019-04 → — Figure 153138 153138 2019-04 → — Figure 153139 153139 2019-04 → — Figure 153140A 153140A 2019-04 → —

Part groups

PNCDescription
15100 Pump Assy, Oil
15100B Ring, O(FOR OIL PUMP)
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104E Bolt, Stud(FOR OIL STRAINER)
15131 Valve, Oil Pump Relief
15147 Gasket, Oil Strainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
